Samtec TFM Series Right Angle Surface PCB Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-120-02-L-DH

Free Delivery in India | Lowest Global Shipping Charges

Samtec TFM Series Right Angle Surface PCB Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-120-02-L-DH

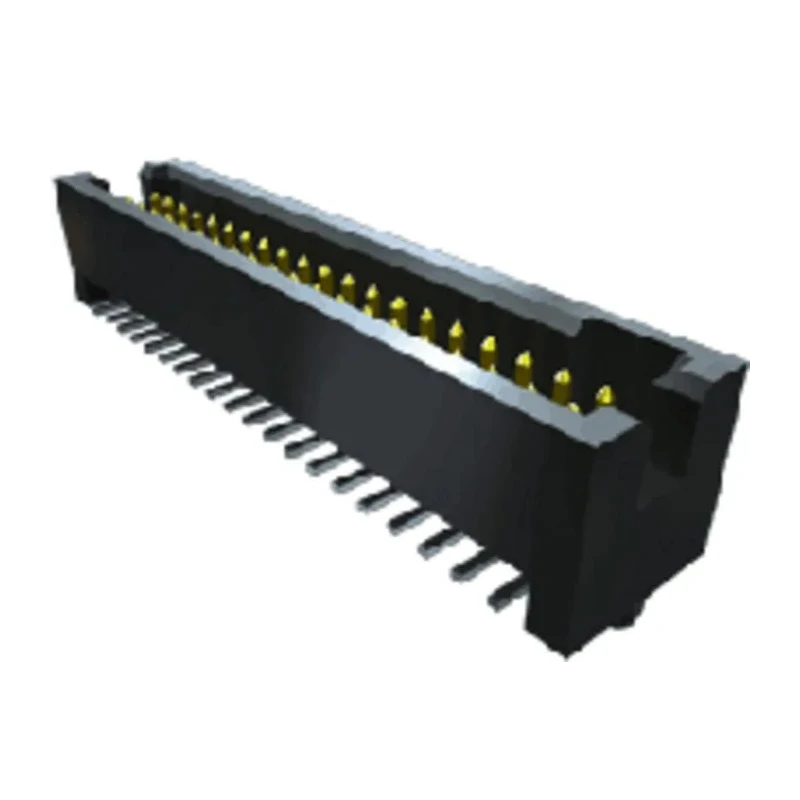

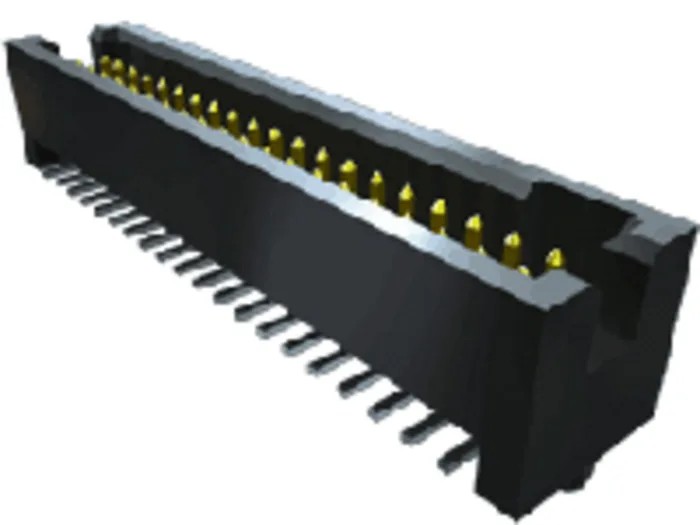

Name: Samtec TFM Series Right Angle Surface PCB Header, 40 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TFM-120-02-L-DH
Brand: Samtec
SKU: 215400
Price: 12.53 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Samtec
Orientation	Right Angle
Current	3.2A
Model	TFM-120-02-L-DH
Mount Type	Surface
Special Features	Screw down, weld tab and solder nail options available for most rugged requirements
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	TFM
Termination	Through-hole, surface mount
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board
Contact System	.018" (0.46 mm) diameter post

Key Features

Equipped with a multi-finger beryllium copper contact system for high reliability.
Constructed from liquid crystal polymer housing for durability and temperature stability.
Supports a 3.2A current rating and 250V voltage rating for robust electrical performance.
Right angle orientation and surface mount termination ensure flexible and compact PCB mounting.
Gold-plated phosphor bronze male contacts provide excellent conductivity and corrosion resistance.
Rated for operation between -55°C to 125°C for varied environmental conditions.
Includes features such as screw down, weld tab, and solder nail options for rugged applications.
Compatible with board-to-board and wire-to-board connector systems in industrial electronics.

Product Description

Samtec TFM-120-02-L-DH is a high-quality right angle surface mount PCB header designed with 40 male contacts organized in 2 rows with a 1.27 mm pitch precisely tailored for board-to-board and wire-to-board applications.

The housing is manufactured from liquid crystal polymer offering excellent mechanical strength and thermal stability, supporting operation over a wide temperature range from -55°C up to 125°C. The gold-plated phosphor bronze contacts ensure superior conductivity and corrosion resistance, making this connector suitable for high-reliability, high-cycle use.

This series incorporates Tiger Eye™ multi-finger beryllium copper contacts known for their durability and secure electrical connection. Termination options include solder and surface mount with right angle orientation, which accommodates parallel or perpendicular PCB layouts to optimize design flexibility.

Special rugged features such as screw down, weld tab, and solder nail options allow it to meet demanding industrial, manufacturing, and electronics assembly requirements. The shrouded body design also facilitates blind mating and protects contacts from damage.

Multi-finger BeCu contact system for high cycle reliability. Liquid crystal polymer housing ensures mechanical strength and temperature resilience. Gold-plated phosphor bronze contacts provide excellent corrosion resistance.

Right angle surface mount design adapts to compact board layouts. Rated current of 3.2A and voltage up to 250V for robust performance. Operates reliably between -55°C and 125°C. Rugged options include screw down, weld tab, and solder nail for enhanced durability.

Suitable for industrial, electronics, and manufacturing applications requiring reliable PCB connectors. Explore the full range of Samtec PCB Headers and connectors at EnvMart for reliable electronic component solutions.
