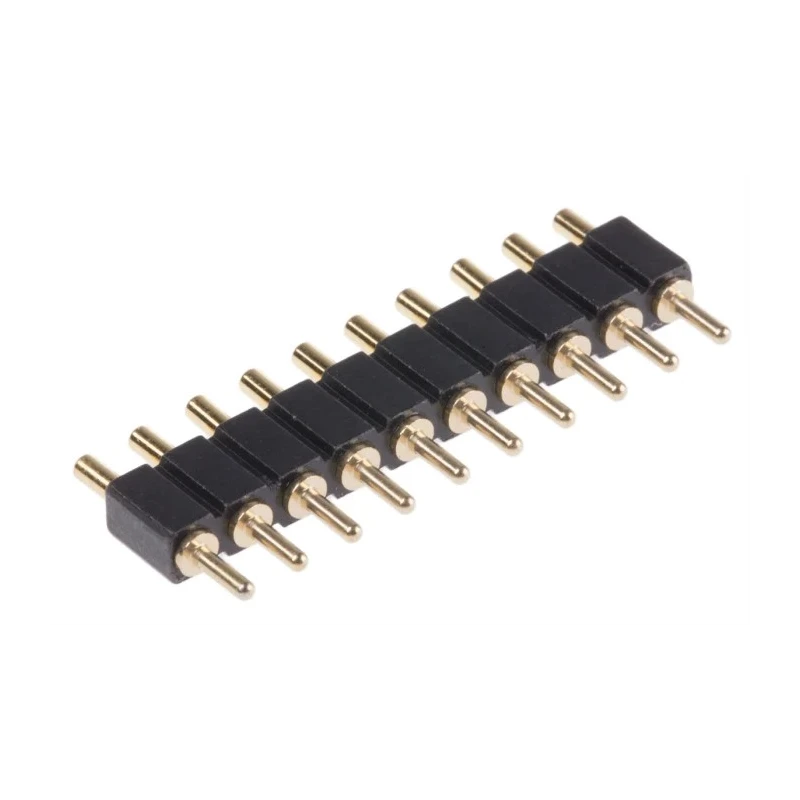

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 1 Row 811-S1-010-10-016101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 1 Row 811-S1-010-10-016101

Name: Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 1 Row 811-S1-010-10-016101
Brand: Preci-Dip
SKU: 215277
Price: 12.23 USD
Availability: InStock



Category PCB Connectors Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	3.5A
Model	811-S1-010-10-016101
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	811
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features spring-loaded contacts providing low and stable electrical resistance.
10 brass contacts plated with gold for optimal conductivity and corrosion resistance.
Through hole mounting suited for PCB integration.
Rated for 3.5 A current and 150 V voltage.
Constructed with fibreglass reinforced polyethylene terephthalate housing for durability.
Operating temperature range from -55°C to 125°C.
Contact gender is male with solder termination type.
Designed with 2.54 mm pitch and row pitch for compact PCB layouts.

Product Description

Preci-Dip presents the 811 Series Straight Through Hole Spring Loaded Connector, model 811-S1-010-10-016101, engineered for reliable PCB connections with 10 spring-loaded contacts arranged in a single row with 2.54 mm pitch. The connector is shrouded and designed for through hole mounting, ensuring robust mechanical and electrical integration on printed circuit boards.

The spring-loaded contacts provide consistently low electrical resistance even under conditions of vibration or motion, which is critical for durable industrial, laboratory, and commercial electronic applications. Brass contacts plated with gold guarantee excellent conductivity and corrosion resistance over time.

Built with a fibreglass reinforced polyethylene terephthalate housing, the connector offers both mechanical strength and resistance to harsh environmental conditions. Its compact design with 1.4 mm plunger stroke length and 4 mm plastic body height suits dense PCB layouts.

Operating safely within a temperature range of -55°C to +125°C and rated for 3.5 A current and 150 V voltage, this connector supports diverse electrical component requirements. The male contact gender and solder termination ensure compatibility with various PCB designs and assembly processes.

Provides stable, low resistance electrical contact with spring-loaded mechanism. Durable gold-plated brass contacts ensure longevity and signal integrity. Shrouded housing offers enhanced protection against shorts and environmental contaminants.

Fibreglass reinforced plastic housing withstands mechanical stress and temperature extremes. Ideal for electronic manufacturing, testing equipment, and industrial automation systems. Through hole mount style allows secure PCB attachment.

Compact 2.54 mm pitch supports high-density PCB designs. Manufactured in Switzerland, assuring rigorous quality control.

The package typically includes the single Preci-Dip 811 Series connector item as described. It is suitable for use in electronics manufacturing, power connectors applications, industrial controls, and other high-reliability environments. Explore the comprehensive range of PCB Connectors on EnvMart for additional connectivity solutions.
