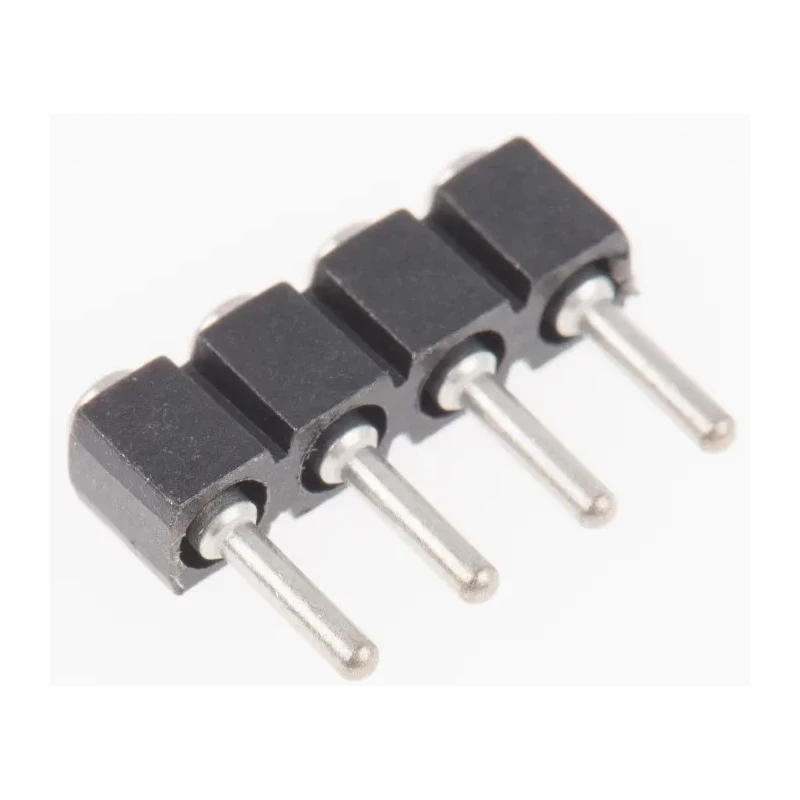

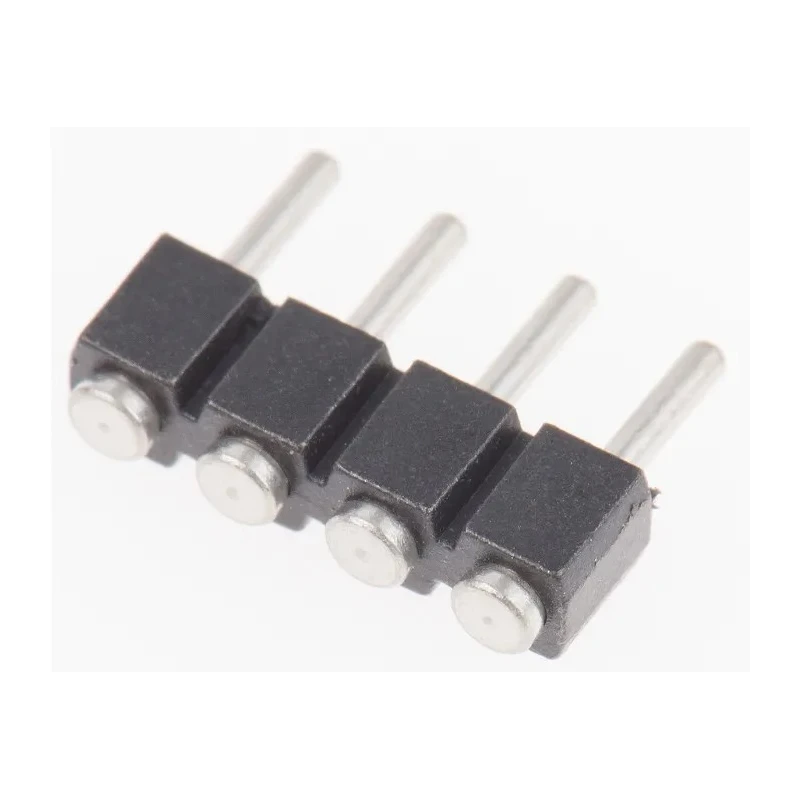

Preci-Dip 800 Series Straight Surface Pin Header 4 Contact 2.54 mm Pitch 1 Row Unshrouded 800-80-004-30-480101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 800 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Constructed with brass contacts featuring tin plating for corrosion resistance.
- Fibreglass reinforced polyethylene terephthalate housing ensures durability and temperature resilience.
- Operates efficiently within a temperature range from -55°C up to 125°C.
- Supports a voltage rating of 150V and a current of 3A suitable for standard PCB applications.
- Surface mount type with straight orientation facilitates easy installation.
- Unshrouded contact design for straightforward access and solder termination.
- Manufactured in Switzerland ensuring high quality and performance standards.
- Compatible with various industrial electronics, power connectors, and PCB assembly uses.
Product Description
Preci-Dip 800-80-004-30-480101 is a high-quality straight surface pin header designed for printed circuit board (PCB) applications. It features 4 male contacts arranged in a single row with a 2.54 mm pitch, specifically engineered for reliable solder termination and electrical connectivity in electronic components and devices.
The pin header's contacts are made of brass with tin plating, providing excellent conductivity and resistance to corrosion. Its housing is constructed from fibreglass reinforced polyethylene terephthalate, offering mechanical strength and an operating temperature range between -55°C and 125°C, making it suitable for demanding industrial and commercial environments.
The surface mount, straight orientation configuration simplifies PCB assembly processes, while the unshrouded design provides easy access for inspection and maintenance. Rated for 150V and 3A, it supports a broad range of electrical applications including electronic components, power and signal connectors, and industrial control systems.
This pin header is manufactured in Switzerland, assuring stringent quality control and compliance with industry standards. Its compact footprint and robust design make it ideal for use in electronics manufacturing, automation, instrumentation, and other technology sectors.
Constructed with brass contacts featuring tin plating for corrosion resistance. Fibreglass reinforced polyethylene terephthalate housing ensures durability and temperature resilience. Operates efficiently within a temperature range from -55°C up to 125°C.
Supports a voltage rating of 150V and a current of 3A suitable for standard PCB applications. Surface mount type with straight orientation facilitates easy installation. Unshrouded contact design for straightforward access and solder termination.
Manufactured in Switzerland ensuring high quality and performance standards. Compatible with various industrial electronics, power connectors, and PCB assembly uses. Explore more from the Electronics & Electricals category for advanced PCB headers and connectors that optimize your electronic assemblies and manufacturing processes.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 150V and a current of 3A, making it suitable for standard PCB applications.
The contacts are made of brass with tin plating for corrosion resistance, while the housing is constructed from fibreglass reinforced polyethylene terephthalate.
It features a 2.54 mm pitch and has 4 male contacts arranged in a single row.
It operates efficiently within a temperature range from -55°C up to 125°C.
This model uses solder termination, allowing for reliable electrical connectivity in PCB applications.
It has a straight orientation, which facilitates easy installation on printed circuit boards.
It features an unshrouded contact design, providing straightforward access for solder termination and inspection.
This pin header is manufactured in Switzerland, ensuring high quality and performance standards.
It is compatible with various industrial electronics, power connectors, and PCB assembly uses.
It belongs to the 800 series, which is designed for reliable solder termination in electronic components.
The housing is made from fibreglass reinforced polyethylene terephthalate, providing mechanical strength and temperature resilience.
This model has 1 row of contacts, designed for efficient PCB connectivity.
