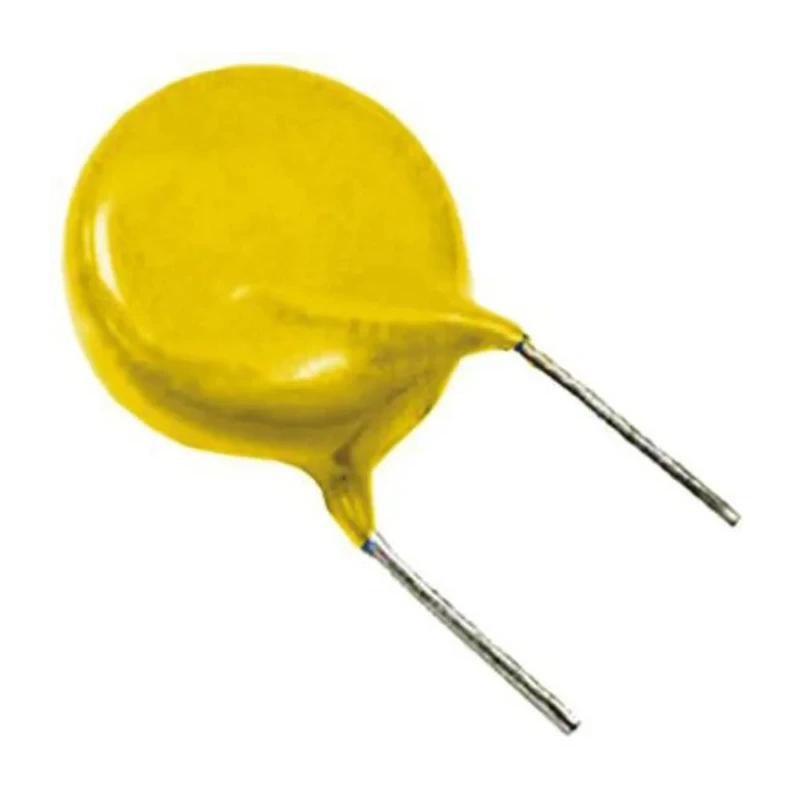

Vishay Single Layer Ceramic Capacitor 2.2 nF 300V AC ±20% Y5V Dielectric Through Hole Radial Terminal VY2 VY2222M31Y5VS63V7
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Diameter | 8mm |
| Brand | Vishay |
| Height | 12mm |
| Model | VY2222M31Y5VS63V7 |
| Width | 5mm |
| Mount Type | Through Hole |
| Series | VY2 |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±20 % |
| Capacitance | 2.2nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 2.5% |
| Standards/Approvals | CSA, DIN EN 60384-14, IEC 60384-14, RoHS |
| Pin Count | 2 |
| Dielectric | Y5V |
| Suppression Class | Y2/X1 |
| IEC 60384-14.4, UL 60384-14, DIN EN 60384-14, CSA E60384-1 | 03, CSA E60384-14:09 |
Key Features
- Single layer AC disc capacitor for reliable performance.
- Flame retardant epoxy resin encapsulation ensures safety.
- Radial tinned copper clad steel leads for secure through hole mounting.
- Capacitance tolerance of ±20% with Y5V dielectric for general applications.
- Maximum operating temperature of 125°C for extended thermal stability.
- Meets CSA, IEC 60384-14, DIN EN 60384-14, and RoHS standards for quality assurance.
- Dissipation factor of 2.5% supporting stable electrical characteristics.
- Designed for across-the-line, line bypass, and antenna coupling applications.
Product Description
Vishay VY2222M31Y5VS63V7 is a single layer ceramic capacitor featuring a capacitance of 2.2 nF and rated for 300V AC operation. It incorporates a Y5V dielectric with a tolerance of ±20%, making it suitable for a variety of electronic circuits requiring AC disc capacitors.
The capacitor has a robust construction with both silver-plated sides of the ceramic disc encapsulated in a flame retardant epoxy resin. Its radial tinned copper clad steel leads enable secure through hole mounting on printed circuit boards. This design provides high reliability and ensures extended temperature range operation up to a maximum of 125°C.
Certified to international standards including CSA, IEC 60384-14, DIN EN 60384-14, and compliant with RoHS directives, this Vishay VY2 series capacitor is ideal for applications such as across-the-line, line bypass, and antenna coupling in industrial, commercial, and general electronic assemblies.
Single layer AC disc capacitor construction for dependable performance. Flame retardant epoxy resin encapsulation enhances safety. Capacitance value of 2.2 nF with a ±20% tolerance. Rated for 300V AC voltage to handle moderate voltage circuits.
Wide operating temperature range from -40°C to 125°C. Measures 12 mm height, 8 mm diameter, and 5 mm width for compact installation. Radial terminal leads with copper clad steel provide firm through hole connections. Dissipation factor of 2.5% ensuring efficient electrical properties.
Compliance to CSA, DIN EN 60384-14, IEC 60384-14 standards guarantees reliability. Applications include line by-pass, across-the-line filtering, and antenna coupling.
As a high-quality component from a renowned brand, the Vishay VY2222M31Y5VS63V7 single layer ceramic capacitor supports a wide range of electrical and electronic manufacturing, industrial automation, and HVAC system requirements. Find more components and solutions on EnvMart to fulfill specialized industrial electronics needs.
Explore more products in our Single Layer Ceramic Capacitors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 2.2 nF with a tolerance of ±20%.
It has a maximum operating temperature of 125°C, allowing for extended thermal stability in various applications.
This capacitor utilizes a Y5V dielectric, which is suitable for general applications requiring AC disc capacitors.
The capacitor measures 12 mm in height, 8 mm in diameter, and 5 mm in width, making it compact for installation.
It is rated for 300V AC operation, suitable for moderate voltage circuits.
This capacitor supports through hole mounting, featuring radial tinned copper clad steel leads for secure connections.
The dissipation factor is 2.5%, which supports stable electrical characteristics during operation.
It complies with CSA, IEC 60384-14, DIN EN 60384-14, and RoHS standards for quality assurance.
The minimum operating temperature for this model is -40°C, allowing it to function in a wide temperature range.
This capacitor is designed for applications such as across-the-line, line bypass, and antenna coupling.
This model has a pin count of 2, suitable for standard connections in electronic circuits.
The country of origin for this capacitor is India.
