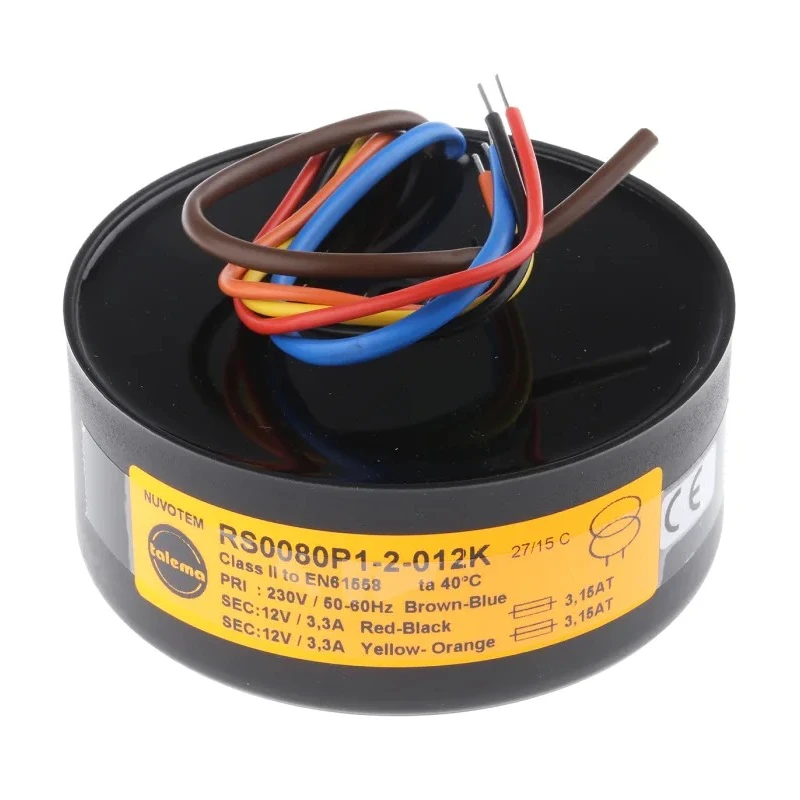

Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 12 V AC Secondary, 80 VA Power Output 0080P1-2-012K

Nuvotem Talema 0080P1-2-012K Toroidal Transformer features a 230 V AC primary winding and two 12 V AC secondary windings capable of delivering 80 VA of power. It is encapsulated with leads for electrical safety and designed with a nylon 6.6 casing conforming to UL94-V0 flammability rating, ensuring robust fire resistance.

This transformer offers twin secondary outputs which can be connected in series, parallel, or used independently, adding versatility to its configuration. Its compact size with a diameter of 93 mm and height of 38 mm allows for easy mounting via a center hole (fixing bolt not included).

Engineered for reduced radiated magnetic fields and very low hum, this transformer maintains electrical noise at minimal levels to facilitate sensitive electronic operations. The low iron loss and low surface temperature increase operational efficiency and safety.

Fully compliant with stringent standards including UL 506, EN 60065, UL 5085, EN61558, EN60950, VDE0551, VDE0550, and BS415, this product undergoes rigorous electrical and flash testing before release.

Applications for the Nuvotem Talema 0080P1-2-012K include industrial power supplies, laboratory equipment, HVAC systems, commercial electronics, and other environments that require reliable and efficient isolation and power conversion.

Encapsulated construction with leads for secure electrical insulation. High-quality nylon 6.6 casing rated UL94-V0 for fire resistance. Two independent 12 V AC secondary windings configurable in series or parallel. Compact form factor with 93 mm diameter and 38 mm height for easy installation.

Low electromagnetic interference with minimal magnetic radiation and hum. Tested according to multiple international electrical safety and performance standards. Energy efficient with low iron loss and cooler operating temperature.

Suitable for diverse industrial, laboratory, commercial, and HVAC applications.
