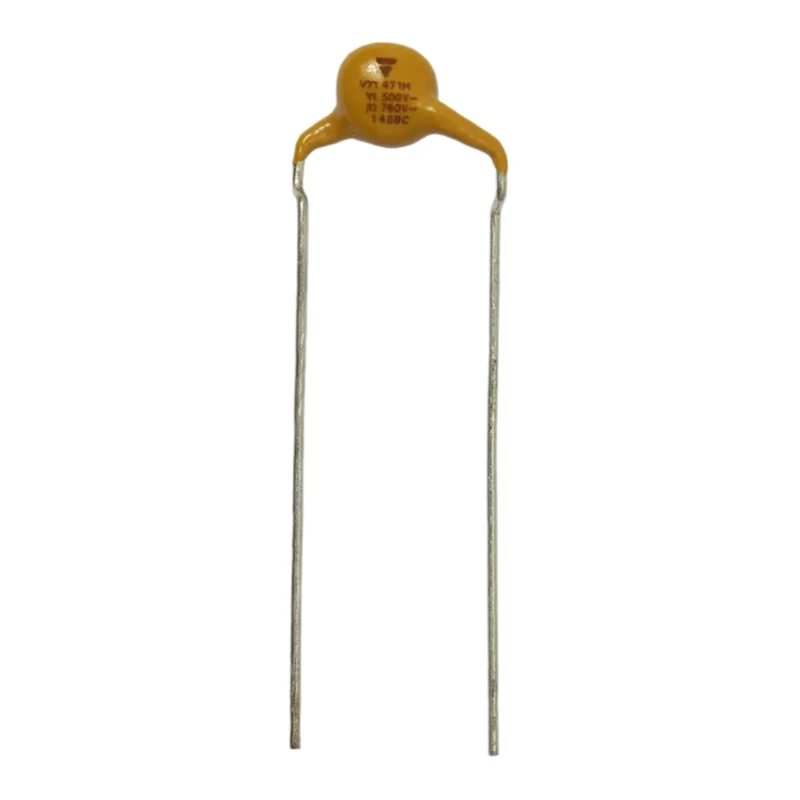

Vishay Single Layer Ceramic Capacitor 2.2 nF 500V ac, 760V ac ±20% Y5U Dielectric Through Hole Disc VY1222M43Y5UC63V0

Free Delivery in India | Lowest Global Shipping Charges

Vishay Single Layer Ceramic Capacitor 2.2 nF 500V ac, 760V ac ±20% Y5U Dielectric Through Hole Disc VY1222M43Y5UC63V0

Name: Vishay Single Layer Ceramic Capacitor 2.2 nF 500V ac, 760V ac ±20% Y5U Dielectric Through Hole Disc VY1222M43Y5UC63V0
Brand: Vishay
SKU: 135585
Price: 0.3 USD
Availability: InStock



Category Single Layer Ceramic Capacitors Brand Vishay Condition New

Specifications

Country of Origin	China
Voltage	500, 760V ac
Diameter	11mm
Brand	Vishay
Height	40mm
Model	VY1222M43Y5UC63V0
Width	5mm
Mount Type	Through Hole
Series	VY1
Maximum Operating Temperature	125°C
Tolerance	±20 %
Capacitance	2.2nF
Minimum Operating Temperature	-40°C
Terminal type	Radial
Dissipation Factor	2.5%
Standards/Approvals	DIN EN 60384-14, CSA, IEC 60384-14, RoHS
Package/Case	Disc
Pin Count	2
Dielectric	Y5U

Key Features

This capacitor uses Y5U dielectric with ±20% tolerance.
The package is a disc type with radial terminals for easy through hole mounting.
Rated for maximum operating temperature of 125 °C and minimum -40 °C.
Features silver-plated ceramic discs encapsulated in flame retardant epoxy resin.
Offers high reliability and can pass 10 kV pulses for industrial applications.
Typical applications include across-the-line use, line by-pass, and antenna coupling.
Complies with standards IEC 60384-14, DIN EN 60384-14, CSA, and RoHS.
Pin count is 2, with dimensions approx. 40 mm height, 11 mm diameter, and 5 mm width.

Product Description

Vishay VY1222M43Y5UC63V0 is a high reliability single layer ceramic capacitor designed for AC applications requiring 2.2 nF capacitance and rated voltages of 500 V ac up to 760 V ac. This through hole disc capacitor employs Y5U dielectric material with ±20% capacitance tolerance and is rated for operation between -40 °C and 125 °C, making it suitable for demanding industrial and electronic uses.

The capacitor features silver-plated ceramic discs on both sides, encapsulated within a flame retardant epoxy resin for enhanced durability and safety. Radial tinned copper clad steel leads provide robust electrical connectivity in through hole PCB mounting. The VY1 series capacitors from Vishay offer excellent pulse handling capability, capable of withstanding up to 10 kV pulses (10 per polarity).

Typical applications encompass across-the-line AC filtering, line bypass circuits, and antenna coupling, widely utilized in industrial, commercial, and consumer electronic designs requiring stable, reliable AC capacitors with moderate capacitance values.

Compliance with international standards IEC 60384-14, DIN EN 60384-14, CSA, and RoHS ensures quality and environmental responsibility. This makes the Vishay VY1222M43Y5UC63V0 capacitor appropriate for diverse markets requiring certified components.

This capacitor uses Y5U dielectric with ±20% tolerance. The package is a disc type with radial terminals for easy through hole mounting. Rated for maximum operating temperature of 125 °C and minimum -40 °C. Features silver-plated ceramic discs encapsulated in flame retardant epoxy resin.

Offers high reliability and can pass 10 kV pulses for industrial applications. Typical applications include across-the-line use, line by-pass, and antenna coupling. Complies with standards IEC 60384-14, DIN EN 60384-14, CSA, and RoHS.

Pin count is 2, with dimensions approx. 40 mm height, 11 mm diameter, and 5 mm width. Explore more Vishay capacitors for reliable industrial and electronic circuit designs on EnvMart.
