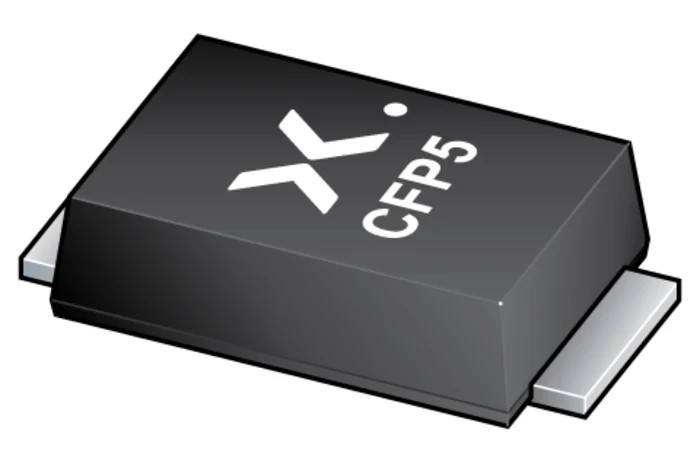

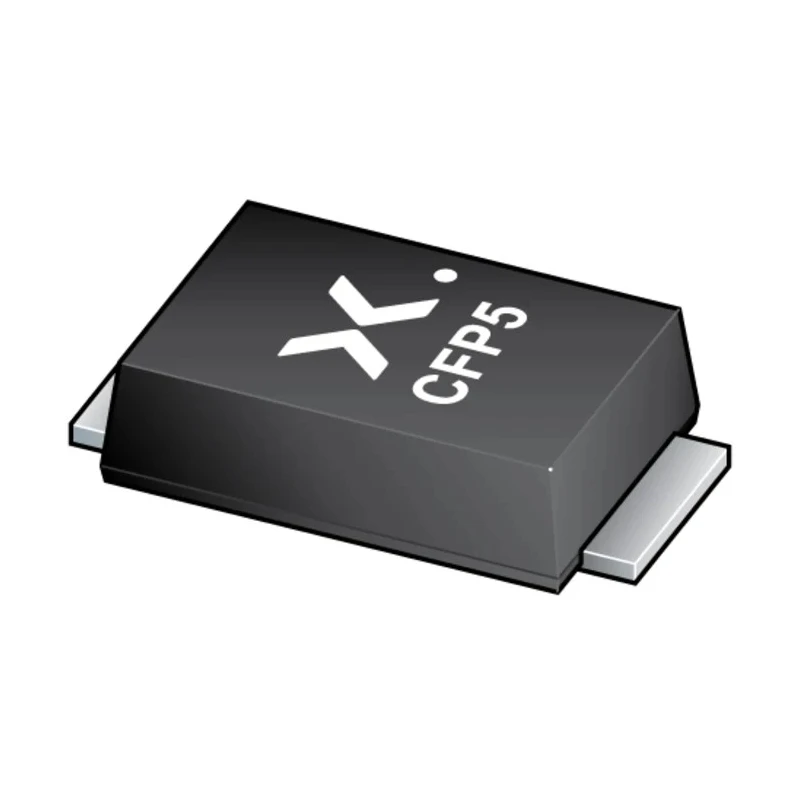

Nexperia 60 V 2.83 A Schottky Diode 2-Pin Surface Mount SOD-128 PMEG6020AELPX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG6020AELPX |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG6020AELP |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2.83A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1.4mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 590mV |
| Peak Reverse Recovery Time trr | 9ns |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 60 V |
Key Features
- This diode has a maximum continuous forward current of 2.83 A.
- It supports a peak reverse repetitive voltage of 60 V.
- Features a low maximum forward voltage of 590 mV for high efficiency.
- Includes a peak reverse current of 1.4 mA and a peak non-repetitive forward surge current up to 50 A.
- The package dimensions are compact with a height of 1.1 mm, length of 4 mm, and width of 2.7 mm.
- Rated for a maximum operating temperature up to 175 °C.
- Complies with the automotive AEC-Q101 standard ensuring reliability in automotive applications.
- Offers extremely low leakage current, ideal for low power consumption applications.
Product Description
Nexperia PMEG6020AELPX is a highly efficient Schottky diode characterized by a maximum continuous forward current of 2.83 A and a peak reverse voltage of 60 V. Encapsulated in a small and flat 2-pin SOD-128 surface-mount plastic package, this diode is engineered with planar maximum efficiency (MEGA) technology and integrated guard ring for superior stress protection and durability.
This diode delivers extremely low leakage current at 235 nA, making it suitable for power-sensitive industrial and automotive applications. It features a low forward voltage drop of 590 mV to minimize power losses and operates at temperatures up to 175 °C, fulfilling stringent automotive standards (AEC-Q101).
Its compact 4 mm length, 2.7 mm width, and 1.1 mm height ensure compatibility with space-constrained circuit board designs. Peak reverse current remains minimal at 1.4 mA, and it can withstand surge currents up to 50 A non-repetitively, ensuring robust transient protection.
This Schottky diode is ideal for applications including low voltage rectification, high efficiency DC-to-DC conversion, switch mode power supplies, reverse polarity protection, and other low power consumption circuit needs in industrial, automotive, and electronic manufacturing sectors.
Maximum forward current of 2.83 A supports moderate power tasks. Compact SOD-128 surface mount package fits modern PCB footprints. Low forward voltage reduces power dissipation and heat. High surge current tolerance protects against transient spikes.
Automotive-grade reliability assured with AEC-Q101 qualification.
Choose the Nexperia PMEG6020AELPX Schottky diode for advanced electronic designs requiring reliable low voltage rectification and high efficiency performance. Explore more semiconductor components in EnvMart’s extensive catalog for your industrial and automotive projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 2.83 A.
This diode supports a peak reverse repetitive voltage of 60 V.
It features a low maximum forward voltage drop of 590 mV.
The package dimensions are 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
It is rated for a maximum operating temperature of 175 °C.
The peak non-repetitive forward surge current can reach up to 50 A.
The minimum operating temperature is -55 °C.
The peak reverse current is 1.4 mA.
It complies with the automotive AEC-Q101 standard, ensuring reliability in automotive applications.
It is encapsulated in a compact 2-pin SOD-128 surface mount package.
This diode is suitable for low voltage rectification, high efficiency DC-to-DC conversion, and reverse polarity protection among other low power consumption circuit needs.
The average forward current rating is IF(AV) ≤ 2 A.
