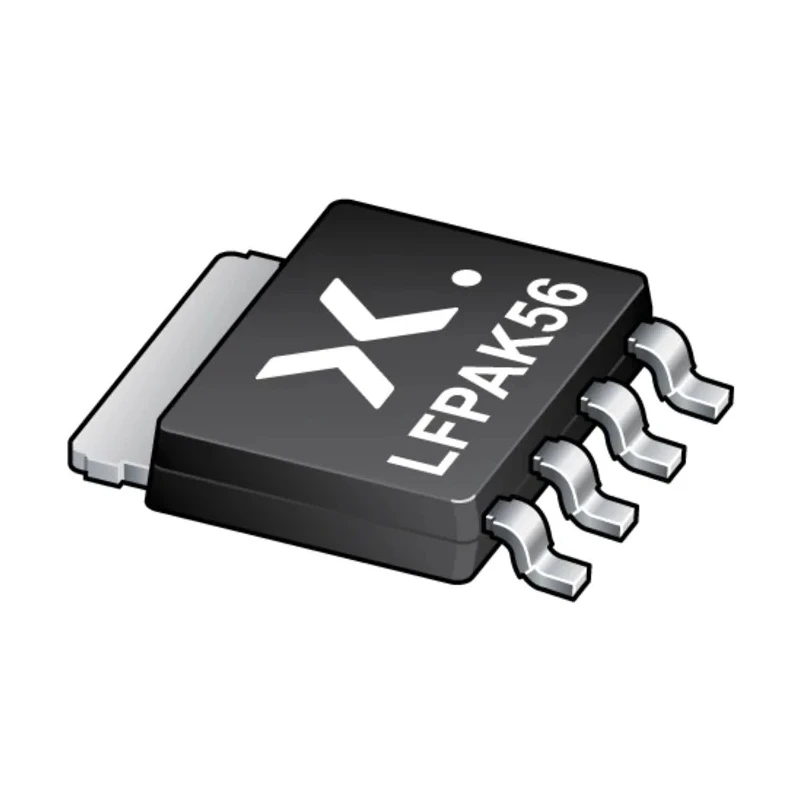

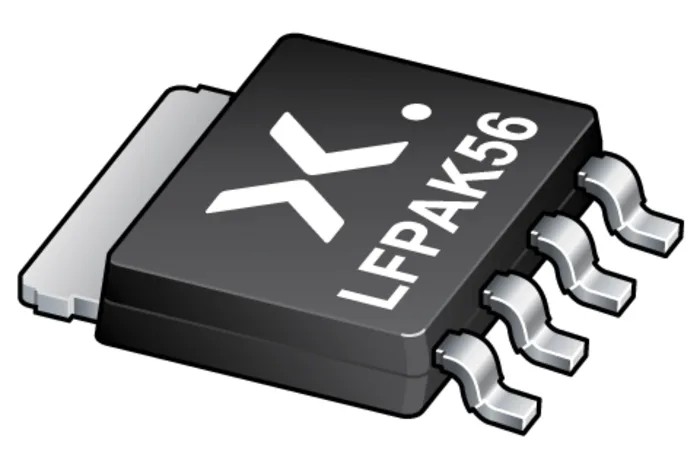

Nexperia High Power 3 A NPN Bipolar Transistor 100 V, 5-Pin SOT-669 Surface Mount PHPT61003NYX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 5mm |
| Model | PHPT61003NYX |
| Width | 4.45mm |
| Mount Type | Surface |
| Series | PHPT61003N |
| Maximum Operating Temperature | 175°C |
| Package Type | SOT-669 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Collector Emitter Voltage Vceo | 100V |
| Minimum DC Current Gain hFE | 150 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 7V |
| Maximum Collector Base Voltage VCBO | 100V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 25W |
| Maximum DC Collector Current Idc | 3A |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 140MHz |
Key Features
- Supports a maximum DC collector current of 3 amperes for high power applications.
- Maximum collector emitter voltage of 100 volts suitable for medium voltage circuits.
- Package is a compact 5-pin SOT-669 surface mount type allowing for PCB space efficiency.
- High thermal power dissipation capability with maximum power dissipation of 25 W.
- Wide operating temperature range from -55°C to 175°C for harsh environments.
- High frequency operation with maximum transition frequency up to 140 MHz.
- NPN transistor polarity with minimum DC current gain (hFE) of 150.
- AEC-Q101 automotive qualified ensuring reliability in automotive systems.
Product Description
Nexperia PHPT61003NYX is a 3 A NPN high power bipolar transistor designed for robust medium voltage applications. It operates at a maximum collector emitter voltage of 100 V and is housed in a 5-pin SOT-669 surface-mount package suitable for compact electronic designs.
Its high thermal dissipation capability (25 W max) and wide operating temperature range (-55°C to 175°C) make it ideal for demanding industrial and automotive environments. This transistor also supports high frequency switching up to 140 MHz, enabling use in various power management and amplification circuits.
The device is AEC-Q101 qualified, ensuring automotive-grade reliability and performance. Its reduced PCB requirements compared to DPAK alternatives enable easier integration into complex assemblies. Applications include industrial power electronics, automotive control systems, and other electronics requiring efficient, reliable switching performance.
Maximum DC collector current: 3 A. Maximum collector emitter voltage: 100 V. Surface mounted 5-pin SOT-669 package type. High power dissipation and high frequency operation. Wide operating temperature range. NPN transistor polarity with high current gain.
Automotive standard qualified (AEC-Q101).
This bipolar transistor is an essential component for engineers designing power control and switching circuits within industrial, automotive, and consumer electronics sectors. Explore Nexperia's range of semiconductor devices on EnvMart for further power transistor solutions.
Explore more products in our Bipolar Transistors category.
