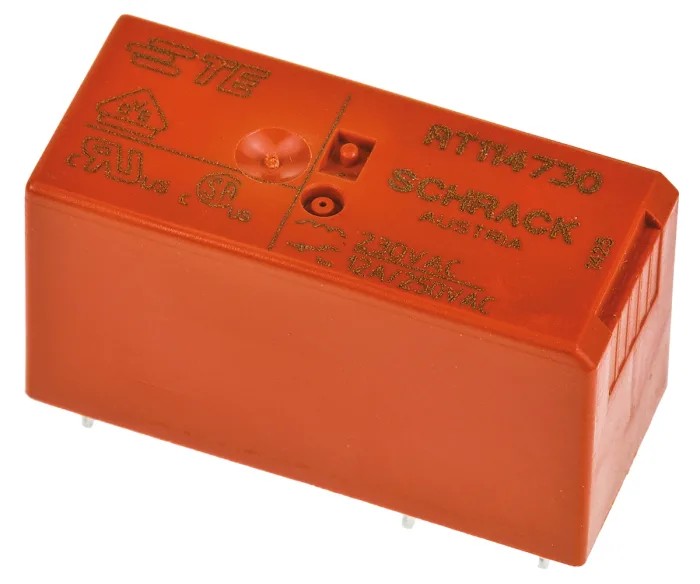

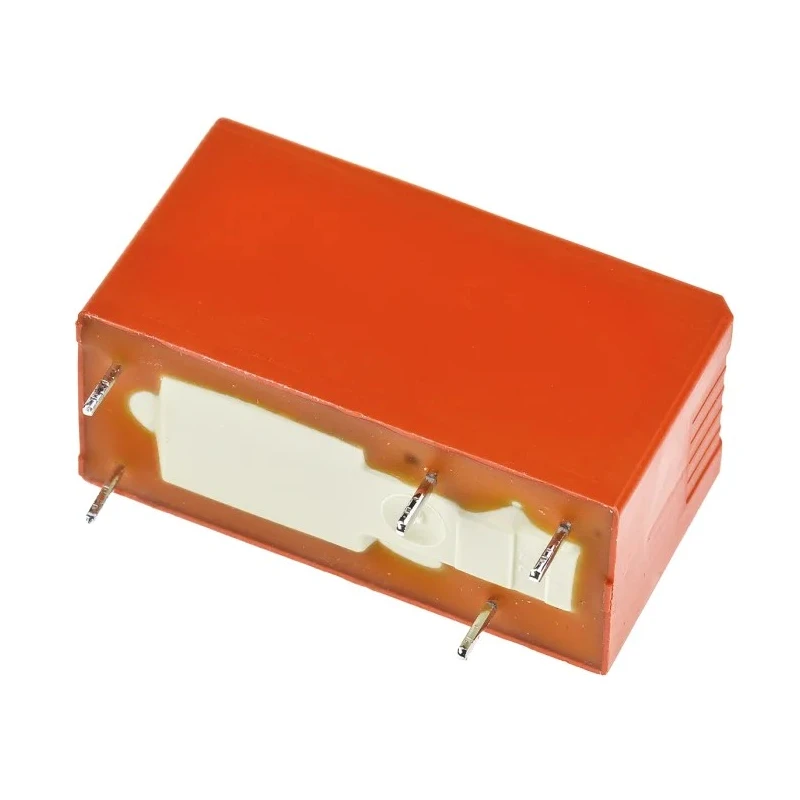

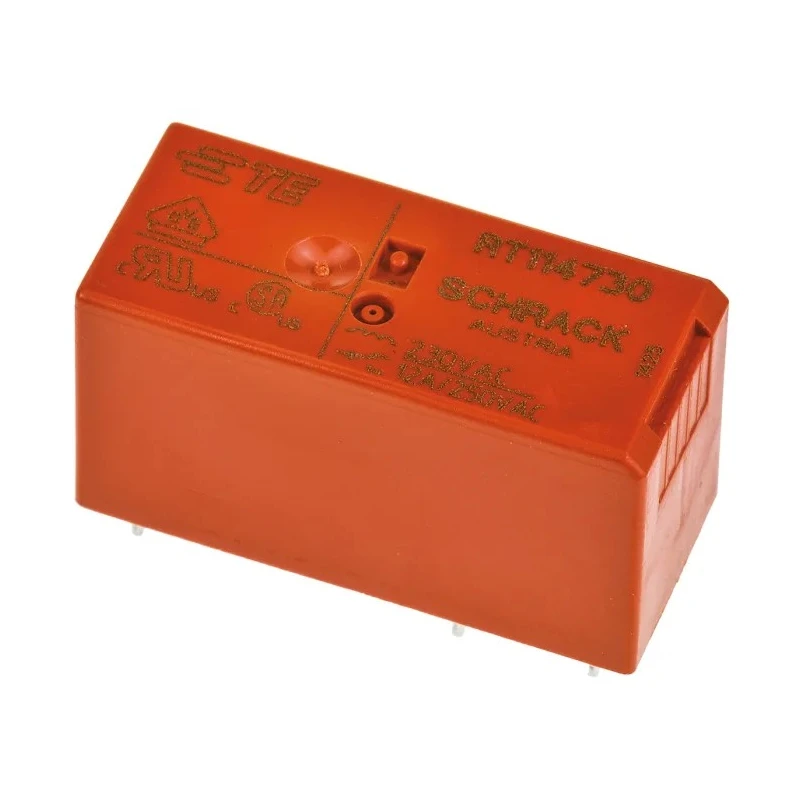

TE Connectivity RT114730 PCB Power Relay, 230V AC Coil, 12A Switching Current, SPDT, Silver Nickel Alloy Contacts
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT114730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Coil voltage rating of 230V AC ensures compatibility with standard PCB circuits.
- SPDT contact configuration supports versatile switching requirements.
- Maximum switching current of 12A enables handling moderate power loads.
- Compact form factor with dimensions 29mm length, 12.7mm width, and 15.7mm height.
- Durable silver nickel alloy contact material provides long-term reliability.
- Operating temperature range from -40°C to 70°C supports diverse environmental conditions.
- Low coil power consumption of 250mW minimizes energy use.
- Mounts via PCB solder terminals for secure electrical connections.
Product Description
The TE Connectivity RT114730 is a high-quality PCB power relay designed for industrial and automation uses where reliable switching is critical. This relay features a 230V AC coil voltage and can switch currents up to 12 amperes with a SPDT (Single Pole Double Throw) contact configuration. It is ideally suited for interface circuits, automation systems, security lighting, and heating system control.
Constructed with silver nickel alloy contacts, the relay offers excellent conductivity and durability under high load operations. The device mounts securely on PCBs through solder-type terminals and features a compact profile measuring 29mm in length, 12.7mm in width, and 15.7mm in height, enabling efficient use of space on control boards.
It operates reliably across a wide temperature range from -40°C to 70°C and consumes low coil power of 250mW, making it energy efficient. The coil resistance is 32.5k ohms, suitable for precise control applications.
Compliant with IEC 60335-1 safety standards and RoHS environmental directives, this relay ensures both operational safety and eco-friendly construction. Manufactured in Austria, the TE Connectivity RT114730 relay reflects high manufacturing quality and reliability.
230V AC coil voltage delivers standardized operating power. SPDT contact configuration accommodates multiple circuit designs. 12A switching current supports moderate power loads. Compact dimensions are optimized for PCB mounting.
Silver nickel alloy contacts enhance performance and lifespan. Wide operating temperature range for varied industrial environments. Low coil power consumption conserves energy. Solder terminal mount type for stable installation.
IEC 60335-1, RoHS, and VDE compliance ensure safety and standards adherence. Manufactured in Austria for assured quality.
This relay is widely used in electrical automation, control panels, and domestic equipment requiring reliable switching performance. Its compact size and robust features make it an ideal choice for engineers and designers seeking dependable PCB Power Relay solutions.
Explore more high-quality relays and power components from EnvMart to enhance your industrial and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity RT114730 has a coil voltage rating of 230V AC, ensuring compatibility with standard PCB circuits.
This relay can handle a maximum switching current of 12A, making it suitable for moderate power loads.
It features a Single Pole Double Throw (SPDT) contact configuration, which supports versatile switching requirements.
This model has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, optimizing space on control boards.
The relay operates reliably within a temperature range of -40°C to 70°C, suitable for diverse environmental conditions.
It has a low coil power consumption of 250mW, which minimizes energy use during operation.
The TE Connectivity RT114730 mounts via solder terminals, ensuring secure electrical connections on PCBs.
The contacts are made from silver nickel alloy, providing enhanced conductivity and durability under load.
It is compliant with IEC 60335-1 safety standards and RoHS environmental directives, ensuring both operational safety and eco-friendliness.
The coil resistance is 32.5k ohms, which is suitable for precise control applications.
This relay is widely used in electrical automation, control panels, and domestic equipment requiring reliable switching performance.
