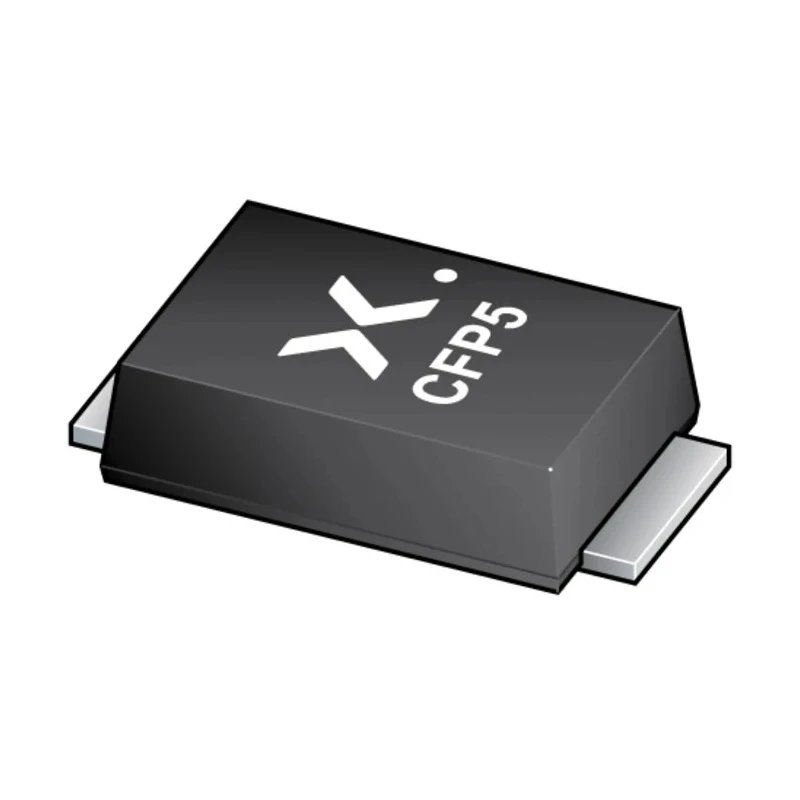

Nexperia 30 V 2 A Surface Mount Schottky Diode 2-Pin SOD-128 PMEG3020DEP,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 4mm |
| Model | PMEG3020DEP,115 |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | PMEG3020DEP |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-128 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 520mV |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 30 V |
Key Features
- Designed for high efficiency with low forward voltage drop.
- Encapsulated in a compact 2-pin SOD-128 surface mount package.
- Qualified to AEC-Q101 automotive standards ensuring reliability.
- Supports high peak surge current of 50 A for robust performance.
- Operating temperature range from -55°C to 150°C.
- Low peak reverse current of 50 μA minimizes leakage.
- Provides excellent thermal stability and power capacity.
- Integrated guard ring for stress protection in electrical circuits.
Product Description
Nexperia PMEG3020DEP,115 Schottky diode is a medium power, low forward voltage drop rectifier designed for surface mount applications. It features a 30 V reverse voltage rating and a maximum continuous forward current of 2 A. This diode is encapsulated in a SOD-128 compact and flat lead 2-pin package optimized for space saving on PCB layouts.
Certified to AEC-Q101 automotive standards, it is suitable for use in demanding industrial, automotive, and electronic component applications requiring high efficiency and reliability. The diode offers low forward voltage of approximately 520 mV, ensuring minimal power losses.
The peak non-repetitive forward surge current capability of 50 A combined with a peak reverse current of only 50 μA guarantees robust operational performance. Operating temperature ranges from -55°C to 150°C make it appropriate for harsh environments.
This device incorporates advanced clip-bond technology for enhanced power handling and integrated guard ring for stress protection, improving durability and life span. It's ideal for use in power management, battery protection, and general purpose rectification in electronic, automotive, and industrial sectors.
Low forward voltage drop improves circuit efficiency. Compact SOD-128 package supports high density mounting. Automotive qualified to AEC-Q101 for reliability in tough conditions. Wide temperature range enables use in extreme environments.
High surge current capability for transient load handling. Minimal leakage current under reverse bias conditions. Guard ring structure protects from electrical stress. Surface mount package facilitates automated assembly.
Explore our wide range of semiconductor components in the Nexperia Schottky Diode category for your next design or repair requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 2 A.
The reverse voltage rating is 30 V.
The operating temperature range is from -55°C to 150°C.
It is encapsulated in a compact SOD-128 surface mount package.
The peak reverse current is 50 μA.
The peak non-repetitive forward surge current capability is 50 A.
The maximum forward voltage drop is approximately 520 mV.
Yes, it is qualified to AEC-Q101 automotive standards, ensuring reliability in automotive applications.
The dimensions are 4 mm in length, 2.7 mm in width, and 1.1 mm in height.
This model is a Schottky rectifier.
It features an integrated guard ring for stress protection and advanced clip-bond technology for enhanced power handling.
It is suitable for power management, battery protection, and general purpose rectification in electronic, automotive, and industrial sectors.
