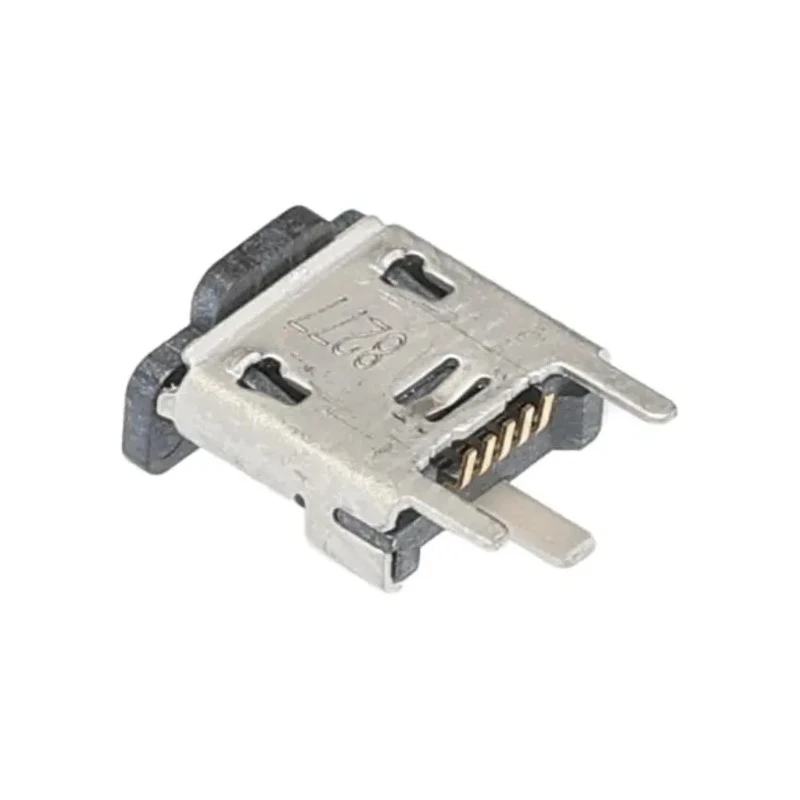

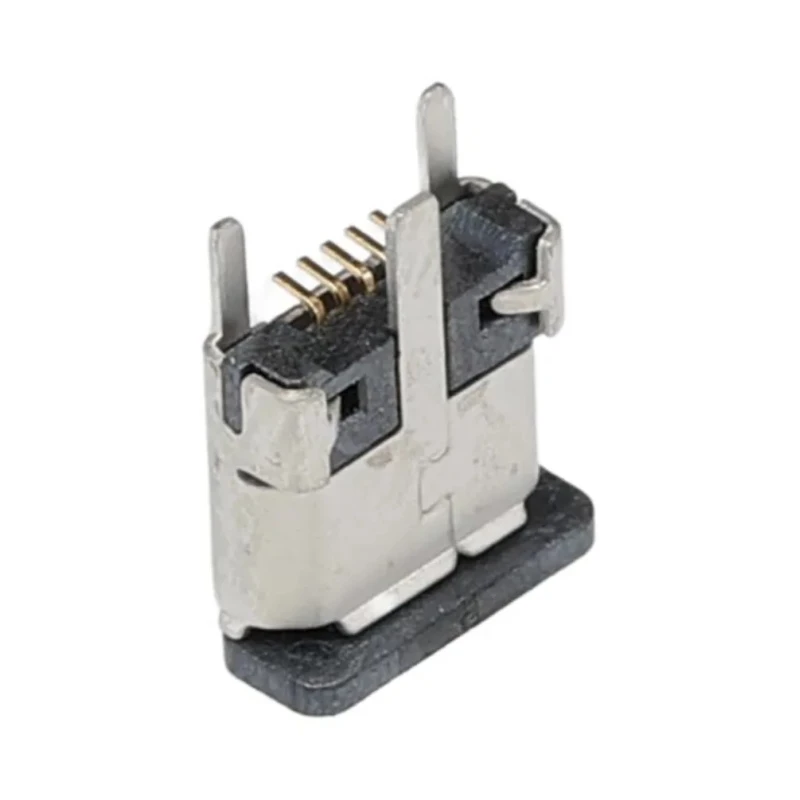

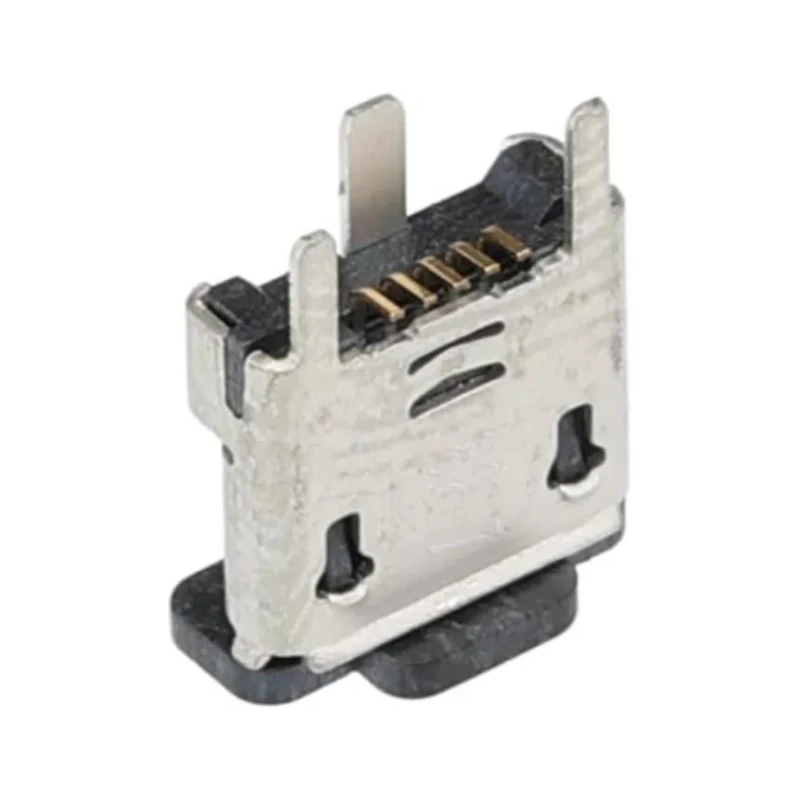

Molex Vertical Surface Mount Female 1 Port Micro USB Type B USB Connector 1.8A 30V USB 2.0 1051330001

Free Delivery in India | Lowest Global Shipping Charges

Molex Vertical Surface Mount Female 1 Port Micro USB Type B USB Connector 1.8A 30V USB 2.0 1051330001

Name: Molex Vertical Surface Mount Female 1 Port Micro USB Type B USB Connector 1.8A 30V USB 2.0 1051330001
Brand: Molex
SKU: 214896
Price: 1.71 USD
Availability: InStock



Category USB Connector Brand Molex Condition New

Specifications

Country of Origin	Germany
Voltage	30V
Brand	Molex
Orientation	Vertical
Current	1.8A
Mount Type	Surface
Contact Material	Copper Alloy
Series	105133
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
Interfaces	USB Connector type for easy connection
USB Type	Micro USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Supports USB 2.0 specification for reliable data transfer.
Provides a current rating of 1.8A for high current applications.
Vertical orientation optimizes PCB space in compact designs.
Surface mount design ensures secure solder termination.
Durable copper alloy contacts ensure excellent conductivity and longevity.
Operates reliably between -30°C and 85°C for diverse environments.
Rated for a maximum voltage of 30V suitable for versatile electronic uses.
Compliant with RoHS standards ensuring environmental friendliness.

Product Description

Molex 1051330001 is a Vertical Surface Mount Female USB Connector featuring one port of Micro USB Type B compliant with USB 2.0 specifications. It supports a current rating of 1.8A and a maximum voltage of 30V, making it suitable for various electronic applications. Designed for durability, it operates efficiently in temperature ranges from -30°C to +85°C and supports up to 10,000 mating cycles.

This connector features a surface mount solder termination type, optimizing PCB space in compact electronic device layouts while ensuring a secure and reliable connection. Its vertical orientation facilitates installation in constrained spaces without compromising accessibility. The contacts are made from a copper alloy, providing excellent conductivity and reliable performance in demanding industrial and automation environments.

The connector complies with RoHS environmental standards and has been tested for lead-free reflow soldering processes up to 260°C, ensuring compatibility with modern manufacturing practices. It is ideal for applications in power supplies, automation equipment, and industrial settings requiring robust and compact USB connectivity solutions with efficient wire-to-board data transfer capabilities.

Supports USB 2.0 standard ensuring high-speed data transmission. Compact vertical surface mount design saves PCB real estate. 1.8A current rating accommodates high power demands. Copper alloy contacts deliver durable electrical performance.

Wide operating temperature range (-30°C to 85°C) for versatile use. Rated for 30V maximum voltage application safety. Solder termination provides reliable mechanical and electrical connection. Compliant with RoHS for environmentally responsible use.

Designed for up to 10,000 mating cycles enhancing product lifespan. Ideal for automation and industrial electronic device connections.

This Molex USB connector is engineered for industrial, laboratory, automation, and consumer electronics sectors seeking compact, reliable USB Type B connection with surface mounting capabilities. Its robust design and compliance standards provide trustworthy performance in various electrical and environmental conditions.
