IQD 40MHz Oscillator HCMOS ±0.5 ppm Ceramic Package LFTVXO009915

Free Delivery in India | Lowest Global Shipping Charges

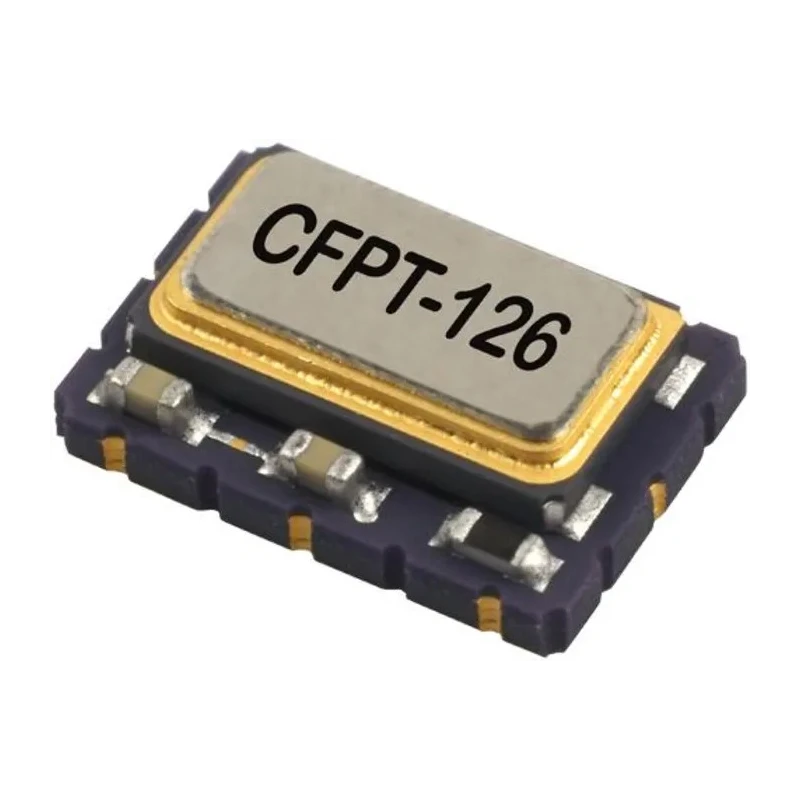

IQD 40MHz Oscillator HCMOS ±0.5 ppm Ceramic Package LFTVXO009915



Category Oscillator Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	2mm
Length	7mm
Model	LFTVXO009915
Width	5mm
Mount Type	Surface
Series	CFPT-126
Maximum Operating Temperature	85°C
Output Frequency	40MHz
Package Type	Ceramic package
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS, REACH, MSL, JDEC-STD-033
Pin Count	4
Maximum Supply Voltage	3.3V
Minimum Supply Voltage	1.65V
Load Capacitance	15pF
Output Level	HCMOS

Key Features

Operates with a frequency of 40MHz delivering stable oscillation.
Features a frequency stability of ±0.5 ppm over temperature range.
Ceramic package ensures durability and protection against environmental factors.
Output level is HCMOS compatible for digital circuits.
Has a load capacitance of 15pF for optimized performance.
Surface mount type with 4 pins for easy PCB installation.
Operates at a supply voltage range from 1.65V to 3.3V.
Designed to function reliably from -40°C to 85°C operating temperature.

Product Description

IQD LFTVXO009915 is a high precision 40MHz oscillator with HCMOS output housed in a robust ceramic package. This TCVCXO oscillator guarantees excellent frequency stability of ±0.5 ppm across a wide temperature range from -40°C to 85°C, making it suitable for demanding industrial and electronic applications requiring precise timing and frequency control.

The oscillator features a surface mount design with 4 pins, supporting a minimum supply voltage of 1.65V and a maximum of 3.3V, ensuring compatibility with various power sources. The load capacitance of 15pF is optimized for stable operation and minimal signal distortion.

Its compact size (7mm length, 5mm width, 2mm height) allows easy integration into printed circuit boards (PCBs) in communication devices, instrumentation, and control systems. The hermetically sealed ceramic package protects the oscillator from mechanical and environmental stresses, enhancing reliability.

Compliance with industry standards including RoHS, REACH, MSL, and JDEC-STD-033 certifies this oscillator is manufactured with environmental and quality considerations. This product is ideal for use in telecommunications, automotive electronics (non-automotive certified), instrumentation, and industrial control systems requiring precise frequency references.

Operates at a frequency of 40MHz with high accuracy. Frequency stability of ±0.5 ppm across operational temperature range. Robust ceramic packaging protects against environmental factors. HCMOS output compatible with modern digital circuits.

Load capacitance set at 15pF for optimized performance. Surface mount mount type with 4 pins for reliable PCB attachment. Wide supply voltage range from 1.65V to 3.3V. Reliable operation from -40°C to 85°C temperatures. Compact 7x5x2 mm dimensions for space-saving designs.

Meets RoHS, REACH, MSL and JDEC standards for quality and environmental compliance. Explore the comprehensive range of Oscillators and electronic components on EnvMart for your electronics manufacturing and engineering needs.
