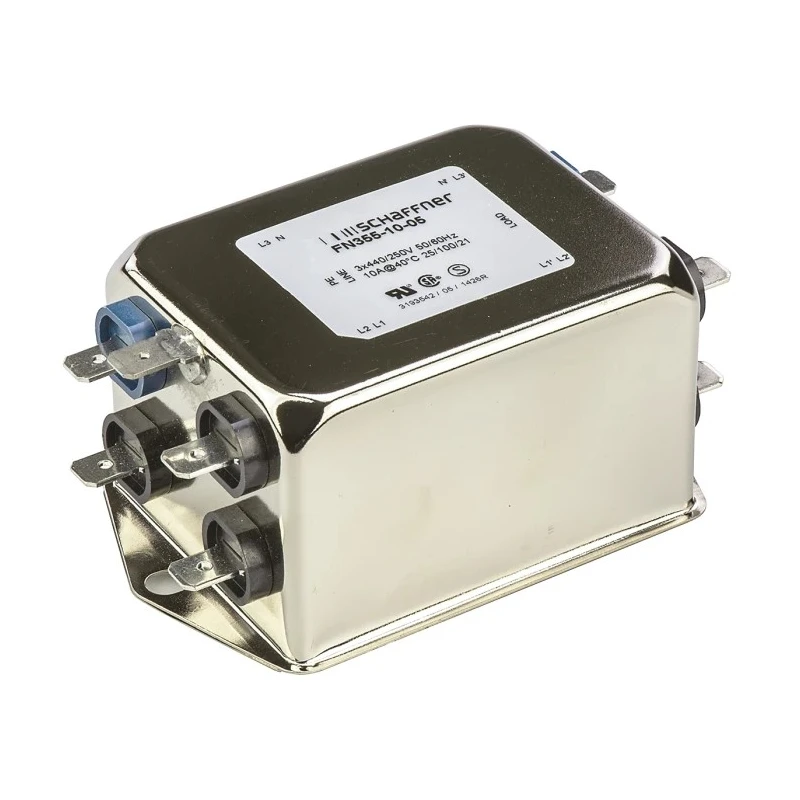

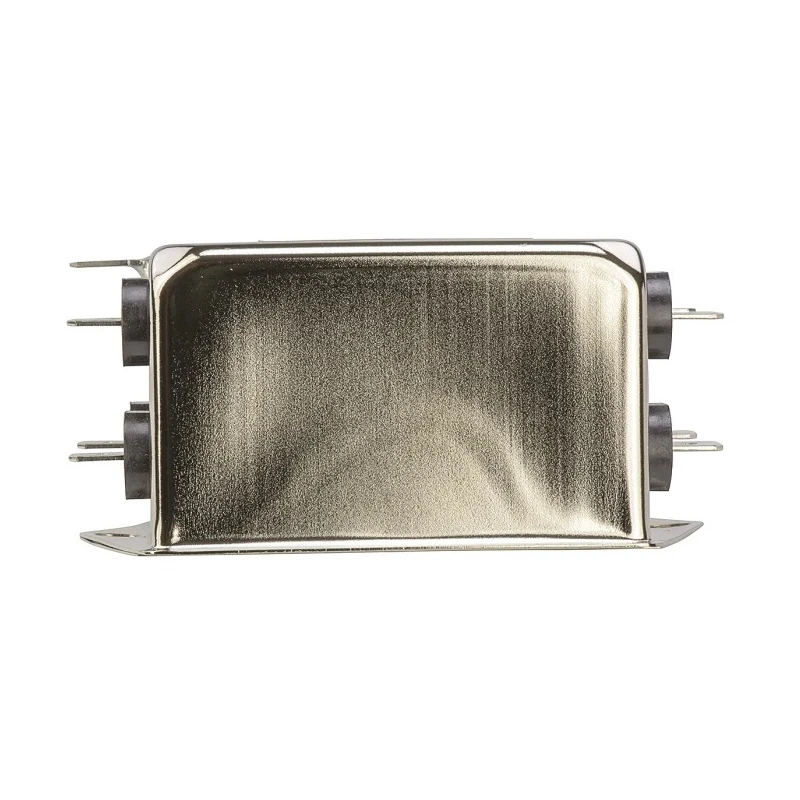

Schaffner Chassis Mount EMI Filter 10A 440V AC 400Hz Fast-On 3 Phase FN355

Free Delivery in India | Lowest Global Shipping Charges

Schaffner Chassis Mount EMI Filter 10A 440V AC 400Hz Fast-On 3 Phase FN355

Name: Schaffner Chassis Mount EMI Filter 10A 440V AC 400Hz Fast-On 3 Phase FN355
Brand: Schaffner
SKU: 214334
Price: 80.61 USD
Availability: InStock



Category EMI Filter Brand Schaffner Condition New

Specifications

Country of Origin	India
Brand	Schaffner
Height	40.3mm
Length	54mm
Model	FN355
Depth	87.2mm
Mount Type	Chassis Mount
Operating Frequency	400Hz
Series	FN355
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2.2nF
Minimum Operating Temperature	-25°C
Maximum Current	10A
Number of Phases	3
Leakage Current	70μA
Maximum Voltage	440V ac
Termination Style	Fast-On
Power Loss	1.8W

Key Features

Provides effective EMI suppression with low leakage current of 70μA.
Suitable for star and delta power networks and medical or office equipment.
Single stage LC circuit design with compact metal housing for space restricted applications.
Operates across a wide temperature range from -25°C to 100°C.

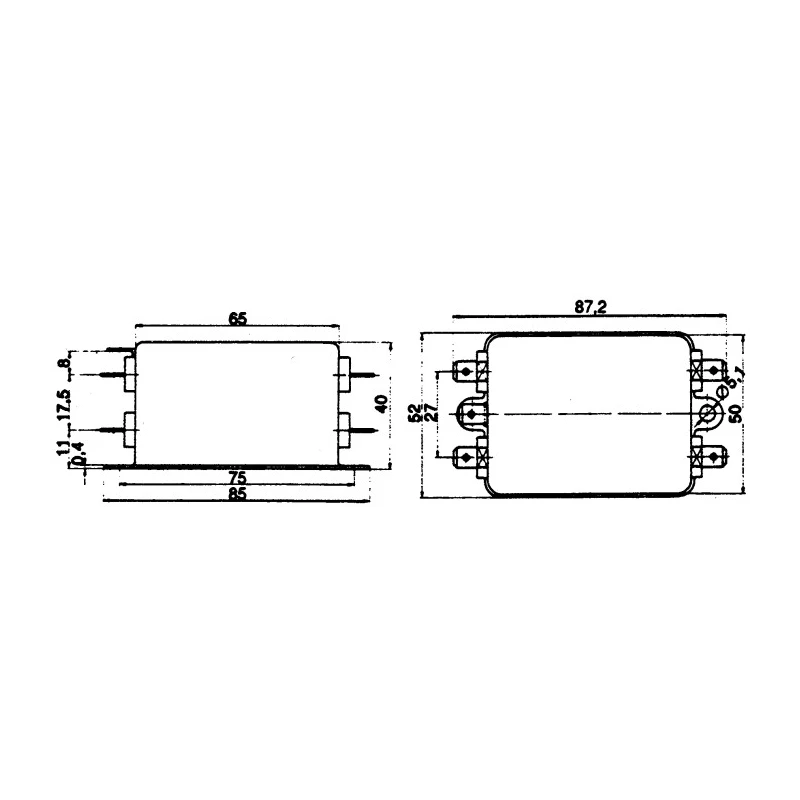

Compact dimensions of 54mm length, 40.3mm height, and 87.2mm depth enable flexible mounting.
Designed for a maximum current of 10A at 440V AC voltage and 400Hz operating frequency.
Power loss maintained low at 1.8W for efficient operation.

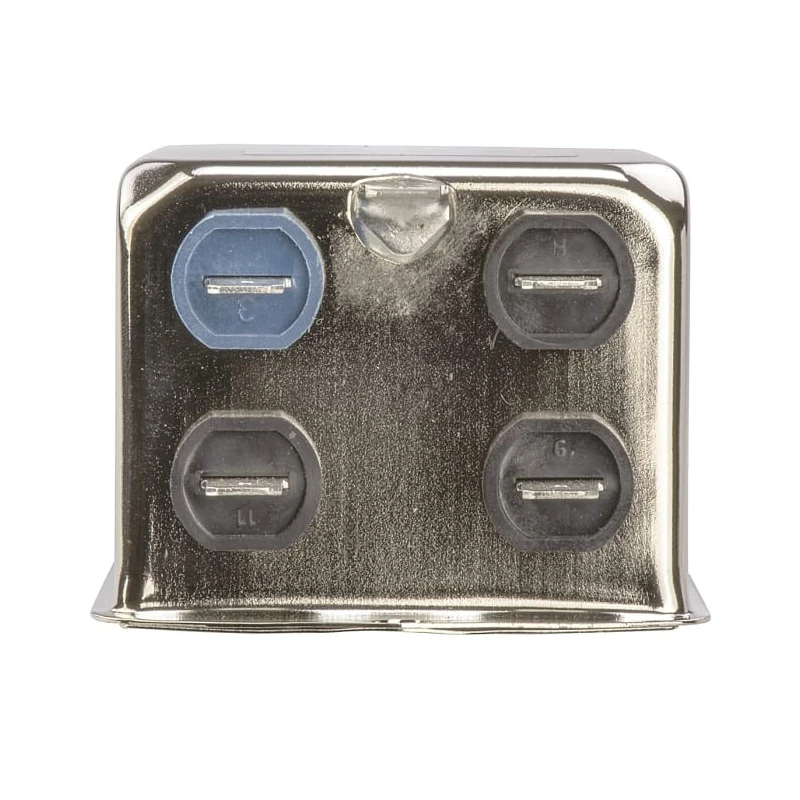

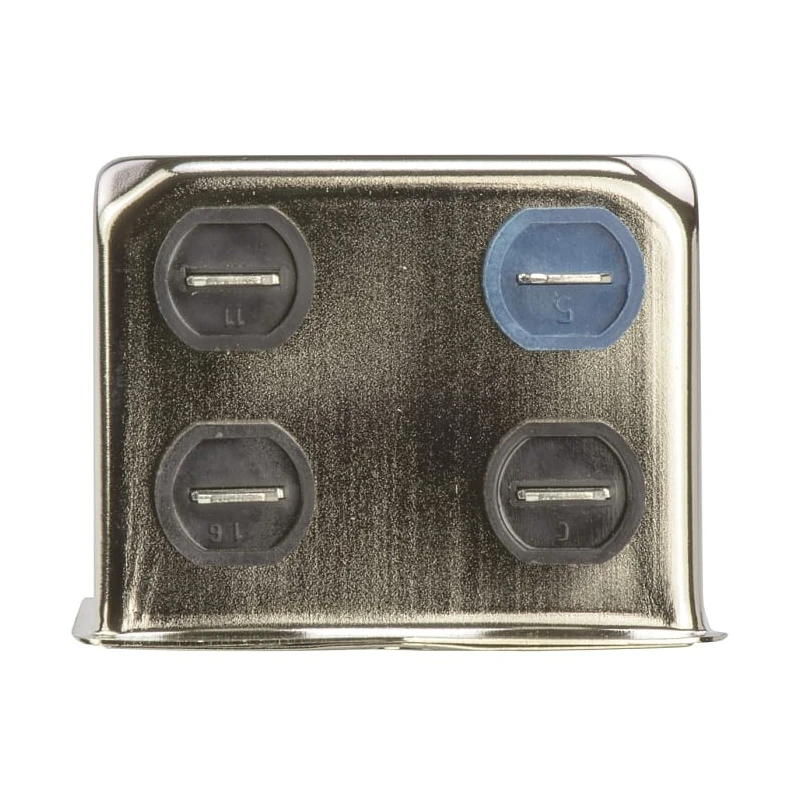

Termination style Fast-On ensures quick installation on chassis mount.

Product Description

Schaffner FN355 chassis mount EMI filter is engineered for effectively reducing electromagnetic interference in 3 phase electrical systems. This 10A rated filter supports a maximum voltage of 440V AC at an operating frequency of 400Hz, making it ideal for industrial and medical electrical applications requiring high reliability and low noise interference.

Constructed with a metal housing and employing a single-stage four-wire LC circuit, the FN355 series offers compact design benefits suited for applications with limited space. Its fast-on termination style allows easy and secure connections, reducing installation time in complex electrical panels.

The filter operates efficiently across a temperature range of -25°C to 100°C, permitting use in various environmental conditions. With exceptionally low leakage current of 70μA and minimal power loss of 1.8W, it minimizes energy waste and contributes to system safety.

Typical applications include use in star and delta power networks, medical equipment, office systems, and general-purpose four-wire filtering tasks. The FN355's compact dimensions (54mm length, 40.3mm height, 87.2mm depth) optimize integration within chassis mounting setups.

Provides effective EMI suppression with low leakage current of 70μA. Compact metal housing designed for space-restricted environments. Single stage LC circuit for stable performance at 400Hz frequency. Suitable for star and delta power network configurations.

Maximum current 10A and maximum voltage 440V AC. Fast-on termination facilitates simple installation on chassis mounts. Operable temperature range from -25°C to 100°C ensures durability. Low power loss of 1.8W enhances energy efficiency.

Schaffner is renowned for quality EMI filtering components that meet industrial requirements for electromagnetic compatibility. This FN355 chassis mount filter supports robust performance in industrial, medical, office, and general electrical equipment applications. Explore more Schaffner EMI Filters in the Electronics Components category at EnvMart.
