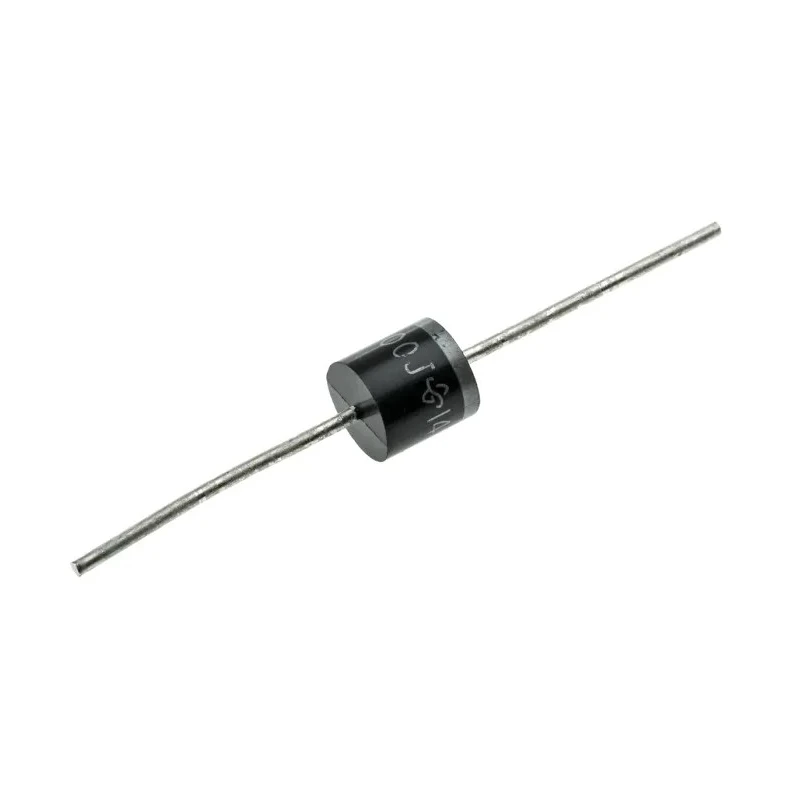

Vishay General Purpose 600 V 6 A Diode P600J-E3/54 Through Hole 2-Pin Rectifier
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 9.1mm |
| Brand | Vishay |
| Height | 9.1mm |
| Length | 9.1mm |
| Model | P600J-E3/54 |
| Width | 9.1mm |
| Mount Type | Through Hole |
| Series | P600J |
| Maximum Operating Temperature | 150°C |
| Case | P600, void-free molded epoxy body |
| Package Type | P600 |
| Minimum Operating Temperature | -50°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 2.5μs |
Key Features
- Designed for general purpose rectification in power supplies, inverters, and converters.
- Features low forward voltage drop and leakage current for efficient operation.
- High forward current and surge capability support demanding power applications.
- Constructed with matte tin plated leads, solderable per industry standards.
- Polymer epoxy molded case meets UL 94 V-0 flammability to ensure safety.
- Operating temperature range from -50°C to 150°C allows use in harsh environments.
- Color band indicates cathode polarity for easy installation.
- Meets RoHS compliance and commercial grade standards.
Product Description
Vishay P600J-E3/54 is a high-quality general purpose diode designed for electronic and electrical applications requiring reliable rectification. Housed in a void-free molded epoxy P600 package, this diode supports a continuous forward current of 6 A and withstands peak repetitive reverse voltage up to 600 V.
This diode features low forward voltage drop and leakage current, enhancing efficiency in power supplies, inverters, and converters. Its robust forward surge capability of 400 A makes it suitable for transient loads and surge conditions often encountered in industrial environments.
The leads are matte tin plated and compliant with solderability standards J-STD-002 and JESD 22-B102, allowing ease of assembly. The polymer package meets UL 94 V-0 flammability ratings, ensuring safety and durability under various operating temperatures from -50°C to 150°C.
The diode’s quick peak reverse recovery time of 2.5 microseconds supports high switching speeds. The clearly marked cathode end with a color band aids correct polarity installation.
Low forward voltage drop and leakage current for efficient power handling. High surge current capability for demanding applications. Robust thermal performance with operating temperatures from -50°C to 150°C. RoHS compliant commercial grade component ensuring environmental safety.
Durable epoxy package with UL 94 V-0 rating for flame retardance. Through hole mounting type with 2-pin design for easy circuit integration.
This diode is widely employed in industrial, manufacturing, and commercial power electronics, including power supplies, converters, freewheeling Diode applications, and inverter circuits. Its compact dimensions and general-purpose application make it a versatile component for engineers and designers seeking quality and reliability.
Explore more Vishay semiconductor devices and related components for your industrial and electronic projects here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the Vishay P600J-E3/54 diode is 6 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The operating temperature range for the P600J-E3/54 diode is from -50°C to 150°C.
The diode features a color band that denotes the cathode end, facilitating correct installation.
It can withstand a peak non-repetitive forward surge current of 400 A.
The diode is housed in a void-free molded epoxy P600 package.
The dimensions of the P600J-E3/54 diode are 9.1 mm in diameter, height, length, and width.
The peak reverse recovery time is 2.5 microseconds.
The leads are matte tin plated and compliant with solderability standards, making them suitable for easy assembly.
Yes, the P600J-E3/54 diode is RoHS compliant, ensuring it meets environmental safety standards.
This diode is widely used in power supplies, inverters, converters, and freewheeling diode applications.
The diode supports through hole mounting with a 2-pin design for easy circuit integration.
