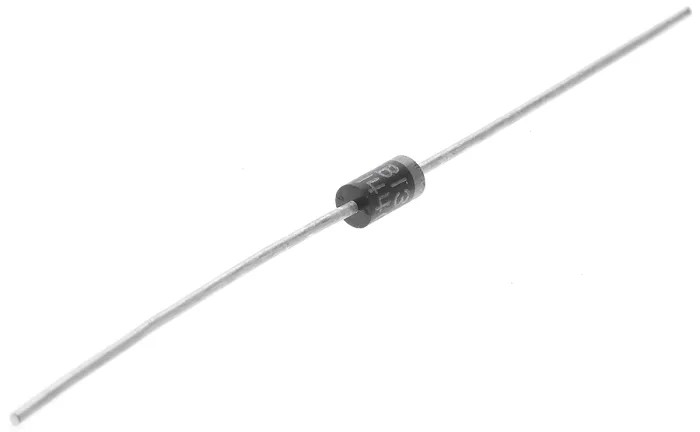

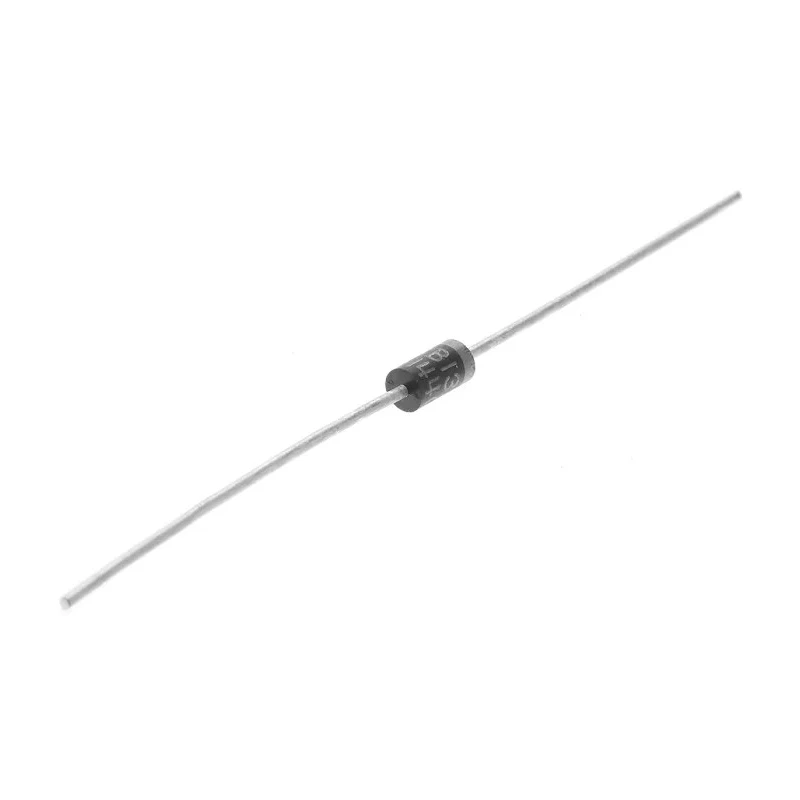

Vishay Schottky Diode 30 V 1 A 2-Pin DO-204AL SB130-E3/54

Vishay SB130-E3/54 is a high performance Schottky diode designed with a two-pin DO-204AL package, offering efficient low forward voltage drop of 0.65 V and fast switching capabilities for industrial and electronic semiconductor applications.

This diode supports a maximum continuous forward current of 1 A and withstands a peak reverse repetitive voltage of 30 V, making it suitable for power rectification in power supplies, automotive, and industrial electronics.

Its package dimensions of 5.21 mm length and 2.7 mm diameter provide a compact footprint ideal for through-hole mounting on printed circuit boards. The device operates across a wide temperature range from -65°C up to 125°C, ensuring versatility for diverse environments.

With a peak non-repetitive forward surge current rating of 50 A, it can handle transient current spikes without damage. The peak reverse current of 500 μA ensures minimal leakage under reverse voltage conditions, maintaining circuit efficiency.

This diode includes a single Schottky rectifier configuration optimized for low power loss and fast switching. Its through-hole mounting and reliable DO-204AL package promote easy assembly and durability. The Diode meets no specific automotive or industrial standards but delivers dependable performance in general electronic circuits.

The compact dimensions and robust thermal operating range make it suitable for laboratory, industrial, electronic device manufacturing, and power supply applications. It is ideal for engineers and technicians designing energy efficient switching power supplies, rectifiers, and fast recovery circuits.
