Vishay 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin Surface Mount DO-214 Package SMCJ58CA-E3/57T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ58CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 103V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 64.4V |
| Maximum Reverse Stand-off Voltage Vwm | 58V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 14.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode configuration is single element and supports bi-directional voltage clamping.
- Minimum breakdown voltage (Vbr) is 64.4 volts ensuring reliable protection.
- Peak pulse power dissipation is rated at 1.5 kW with a maximum peak pulse current of 14.6 A.
- Operating temperature range from -55°C to 150°C allows usage in harsh environments.
- Compact dimensions with length 7.11 mm, width 6.22 mm, and height 2.42 mm enable easy mounting.
- Low maximum reverse leakage current of 1 microampere for energy-efficient operation.
- Meets automotive standard AEC-Q101 confirming high reliability in automotive applications.
- Surface mount type package DO-214 with two pins for streamlined PCB integration.
Product Description
Vishay SMCJ58CA-E3/57T is a 1-element bi-directional transient voltage suppressor (TVS) diode designed for robust protection against voltage spikes and surges in electronic circuits. This device provides effective transient voltage suppression with a peak pulse power dissipation rating of 1.5 kW, making it ideal for safeguarding sensitive semiconductor devices in industrial, automotive, and electronic applications.
Featuring a single diode configuration in a surface mount DO-214 package, the SMCJ58CA-E3/57T diode supports bi-directional voltage clamping with a minimum breakdown voltage of 64.4 V, and it clamps at 103 V during transient events, protecting circuits from damage due to voltage surges. The compact form factor and two-pin mounting allow easy integration on printed circuit boards while maintaining reliability over a wide operating temperature range of -55°C to 150°C.
The device’s maximum peak pulse current of 14.6 A combined with ultra-low reverse leakage current (1 μA max) ensures energy-efficient surge protection. It complies with automotive grade standard AEC-Q101, certifying suitability for demanding automotive and industrial environments. The package dimensions are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, facilitating space-efficient PCB layouts.
Vishay’s TRANSZORB® series transient voltage suppressors are widely used in electronics manufacturing for reliable suppression of voltage transients caused by inductive load switching, lightning surges, or electrostatic discharge (ESD). The SMCJ58CA-E3/57T model is ideal for protecting power lines, audio/video equipment, communication devices, and control systems requiring bi-directional transient voltage protection.
The diode is surface mount type with DO-214 package and 2-pin configuration. Highly effective transient voltage suppression up to 1.5 kW peak pulse power. Wide temperature range supports industrial and automotive applications.
Compliant with automotive standard AEC-Q101 for enhanced reliability. Compact package dimensions allow high-density PCB design and ease of assembly. Offers low leakage current for reduced power loss in circuits. Suitable for transient voltage suppression in semiconductor and discrete electronics.
Designed to protect against ESD, lightning, and inductive load switching surges. Provides durable, reliable surge protection for a wide range of commercial and industrial electronics. Explore EnvMart’s wide selection of Vishay TVS Diodes and other semiconductor components for your electronics design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is rated at 1.5 kW, providing robust protection against voltage spikes and surges.
The minimum breakdown voltage (Vbr) for this diode is 64.4 volts, ensuring reliable voltage clamping during transient events.
This model can handle a maximum peak pulse current of 14.6 A, making it suitable for various surge protection applications.

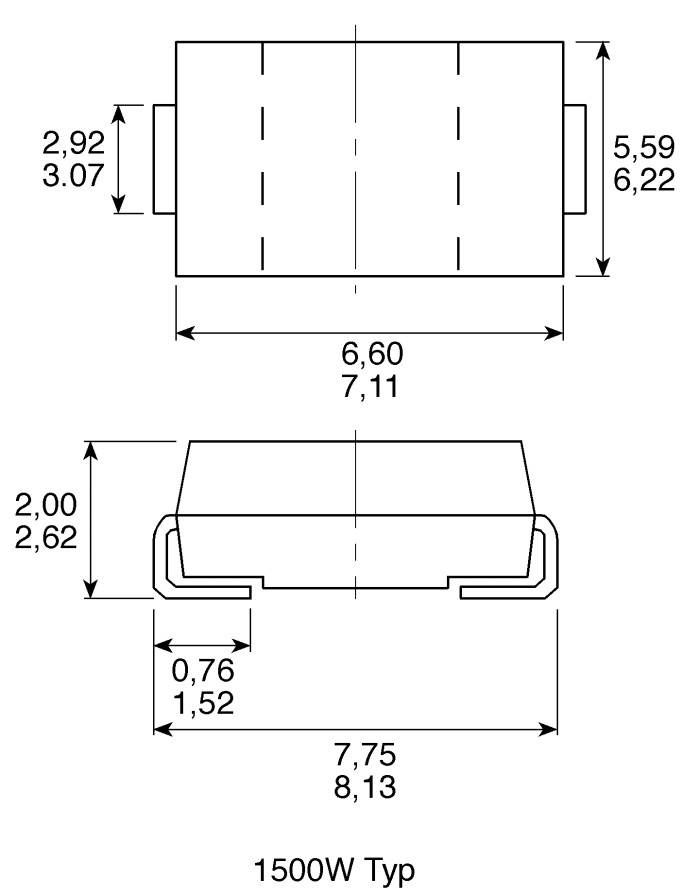

The dimensions of the DO-214 package are 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, allowing for compact PCB layouts.
The operating temperature range for this unit is from -55°C to 150°C, enabling its use in harsh environments.
The clamping voltage (VC) during transient events is 103 volts, providing effective protection against voltage surges.
Yes, it complies with automotive standard AEC-Q101, confirming its reliability for automotive applications.
The maximum reverse leakage current for this model is 1 microampere, which contributes to energy-efficient operation.
This diode features a 2-pin configuration, facilitating easy surface mount integration on PCBs.
It uses a single element diode configuration that supports bi-directional voltage clamping.
This model belongs to the TRANSZORB TVS series, known for effective transient voltage suppression.
This diode is suitable for protecting power lines, audio/video equipment, communication devices, and control systems from voltage transients.
