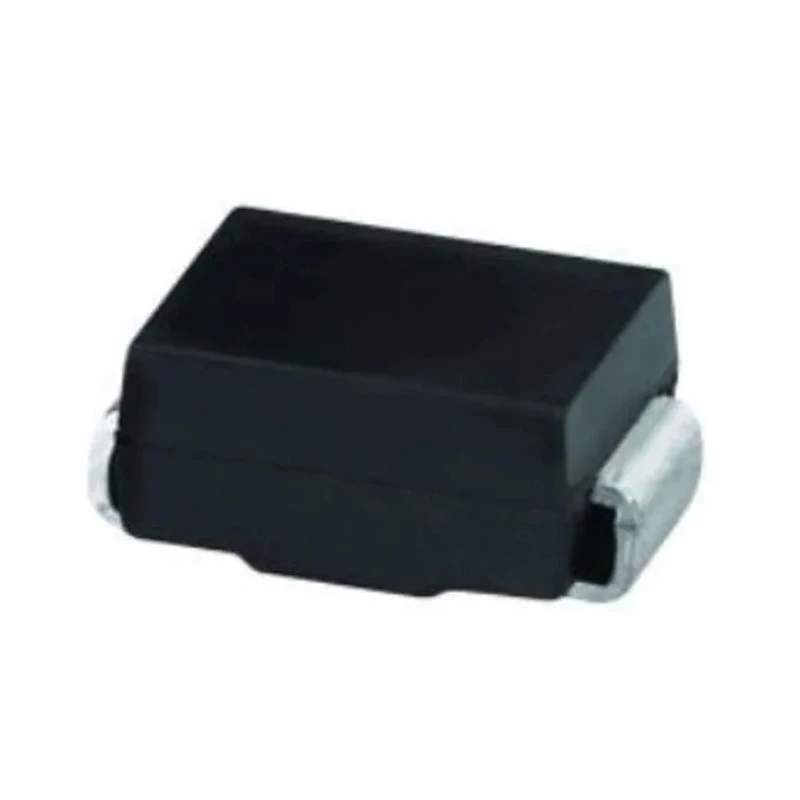

Vishay 1-Element Bi-Directional TVS Diode Surface Mount DO-214, 600 W Peak Pulse Power SMBJ30CA-E3/52

Vishay SMBJ30CA-E3/52 is a 1-element bi-directional Transient Voltage Suppressor (TVS) diode, designed for surface mount applications in a DO-214 package. It is engineered to provide transient overvoltage protection for sensitive electronic components and circuits by clamping surges and voltage spikes effectively.

This TVS diode features a peak pulse power dissipation of 600 watts, making it suitable for protecting against high-energy transient events in industrial, automotive, and electronic manufacturing environments. Its bi-directional design means it limits transient voltages in both directions, ideal for AC and DC protection applications.

The device comes with a low clamping voltage of 53.5 V and a maximum reverse standoff voltage of 30 V, offering optimal protection thresholds while maintaining circuit integrity under normal operation. With pin count of 2, it installs easily on printed circuit boards using surface mount technology.

Vishay's TRANSZORB® series semiconductor solutions feature excellent clamping performance combined with fast response times and low incremental surge resistance. The diode's compact size dimensions of 4.57 mm length, 3.94 mm width, and 2.24 mm height support high-density PCB layouts.

This model operates reliably from -55°C to 150°C, and meets AEC-Q101 automotive standards, making it robust for harsh automotive and industrial conditions. Its low maximum leakage current of 1 µA guarantees low power loss during normal conditions.

Applications include transient voltage protection in power supplies, automotive electronics, industrial controls, and telecommunications equipment. It is a critical component for improving system reliability by protecting against electrostatic discharge (ESD) and voltage spikes.

Single diode configuration designed for bi-directional voltage suppression. Peak pulse power dissipation rating of 600 watts ensures robust transient protection. Mounts easily on surface with DO-214 package style suitable for SMT assembly.

Low clamping voltage of 53.5 V provides efficient protection of sensitive electronics. Wide operating temperature range from -55°C to +150°C suits various industrial environments. Automotive AEC-Q101 qualified for high reliability in vehicular applications.

Offers low reverse leakage current of 1 µA to conserve energy during operation. Compact dimensions: length 4.57 mm, width 3.94 mm, height 2.24 mm. Fast response time with excellent clamping capability for surge suppression.

Compliant with RoHS for environmental safety. Explore more Vishay semiconductor components and TVS Diodes on EnvMart for dependable surge protection solutions in industrial and automotive electronics.
