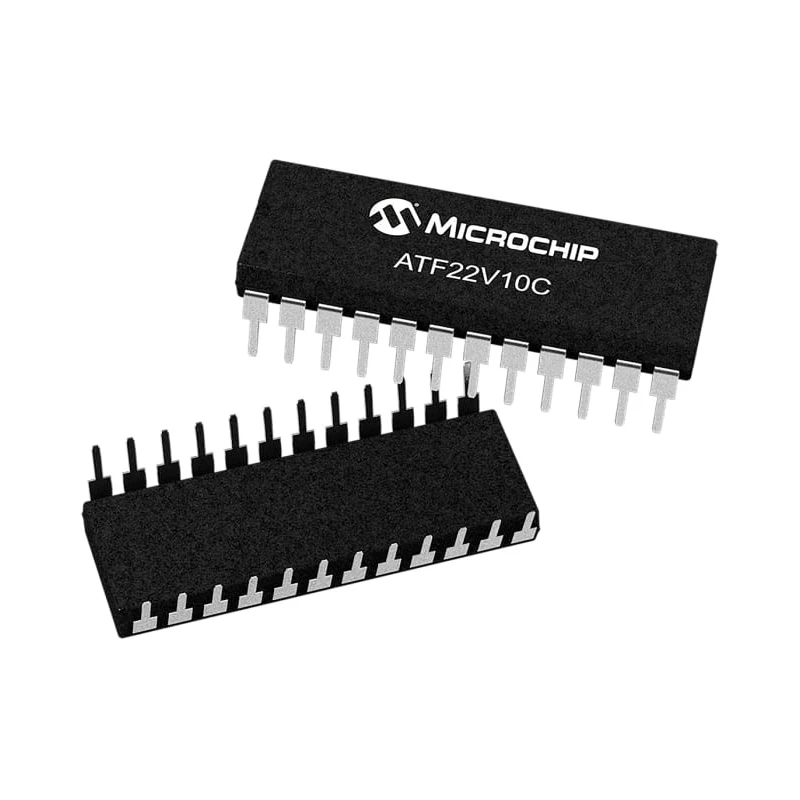

Microchip Simple Programmable Logic Device 350 Gates, 10 Macro Cells, 10 I/O, 166 MHz In System ATF22V10C-7PX

Microchip ATF22V10C-7PX is a Simple Programmable Logic Device offering 350 gates, 10 macro cells, and 10 user I/O pins with a maximum internal frequency of 166 MHz. It supports in-system programmability and re-programmability, making it ideal for adaptable logic circuit designs.

This device is designed for through-hole mounting with a 24-pin PDIP package, facilitating robust physical connections on printed circuit boards. Its operating supply voltage ranges from 4.5 V to 5 V, suitable for various electronic designs requiring stable and low power consumption.

Operating reliably across a temperature range from -40°C to 85°C, the ATF22V10C-7PX supports applications in industrial, automotive (non-certified), and consumer electronics where environmental stress conditions are a concern.

The device features a maximum propagation delay time of 7.5 ns, providing high-speed response for timing-critical applications. Additionally, it complies with RoHS directives, ensuring environmental compliance and safe usage.

The compact dimensions of 32.13 mm length and 4.95 mm height enable efficient integration into space-constrained designs. The flexible logic architecture and in-system programmability offer designers great versatility in creating complex programmable logic solutions.

Offers high performance with a maximum internal frequency of 166 MHz. Features 350 logic gates and 10 macro cells for flexible logic design. Includes 10 user input/output pins suitable for various applications. Supports in-system programmability and re-programmability for easy updates.

Mounts through hole with 24 pins in a PDIP package for reliable installation. Operates within 4.5 V to 5 V supply voltage for stable power consumption. Wide operating temperature range from -40°C to 85°C for harsh environments.

Maximum propagation delay time of 7.5 ns ensures fast signal processing. Compliant with RoHS standards ensuring environmental safety. Compact dimensions with 32.13 mm length and 4.95 mm height for efficient PCB layout.

This Microchip programmable logic device is well suited for industrial, laboratory, and electronic design applications, providing flexible logic solutions with reliable in-system programming capabilities.
