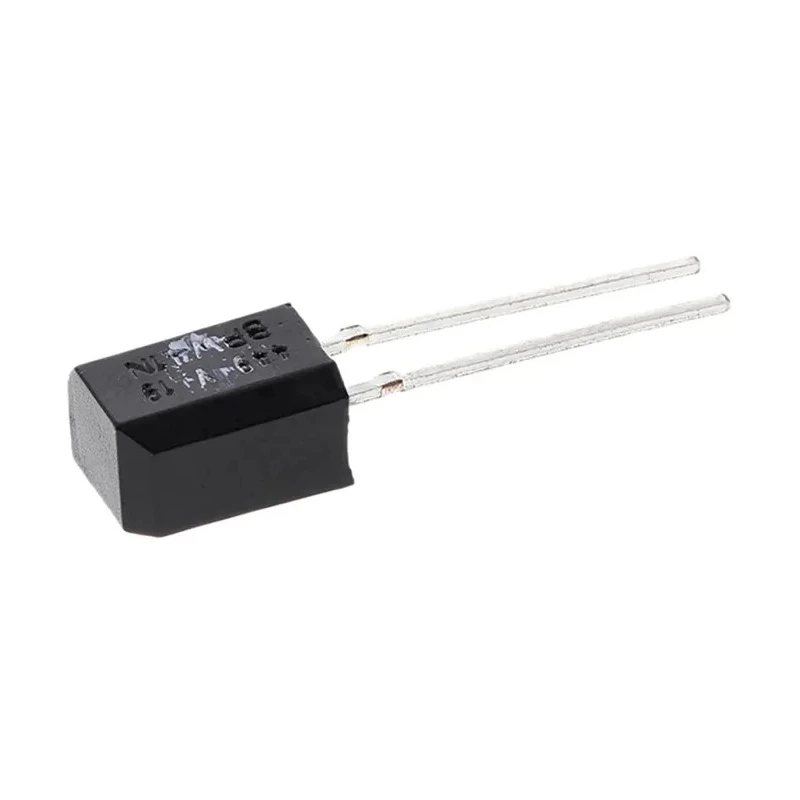

Vishay Infrared Photodiode BPW41N, Side Looker, Through Hole, 65 ° Angle of Half Sensitivity BPW41N
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5mm |
| Brand | Vishay |
| Operating Temperature | -40 to +100°C |
| Dimensions | 5 x 4 x 6.8 mm |
| Height | 6.4mm |
| Length | 5mm |
| Model | BPW41N |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Through Hole |
| Short Circuit Current | 50μA |
| Maximum Operating Temperature | 100°C |
| Package Type | Side Looker |
| Minimum Operating Temperature | -40°C |
| Polarity | Forward |
| Dark Current | 2nA |
| Open Circuit Voltage | 350mV |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 80ns |
| Wavelength of Peak Sensitivity | 950nm |
| Spectrums Detected | Infrared |
| Breakdown Voltage | 60V |
| Minimum Wavelength Detected | 870nm |
| Maximum Wavelength Detected | 1050nm |
| Angle of Half Sensitivity | 65 ° |
| Radiant sensitive area | 7.5 mm² |
Key Features
- Designed for infrared radiation detection and remote control applications.
- Features a side-looking black plastic package with daylight filter.
- Operates in a wide temperature range from -40°C to 100°C.
- Has fast response times with typical rise and fall times of 80 nanoseconds.
- Compact dimensions of 5 x 4 x 6.8 mm and a radiant sensitive area of 7.5 mm².
- High radiant sensitivity and a 50 μA short circuit current typical.
- Suitable for use with TSAL series IR emitters for air data transmission systems.
- Complies with RoHS standards and uses forward polarity with 2 pins.
Product Description
Vishay BPW41N is an infrared photodiode designed for use in infrared radiation detectors, IR remote control systems, and air data transmission applications. This PIN photodiode features a side-looking black plastic package with a daylight filter to optimize infrared detection performance.
The device has a through-hole mount with two pins and is manufactured to comply with RoHS standards. Its compact size of 5 mm length, 4 mm width, and 6.8 mm height allows integration in space-limited electronic assemblies. The radiant sensitive area measures 7.5 mm², ensuring effective infrared signal capture.
The photodiode operates efficiently over a broad wavelength range from 870 nm to 1050 nm, with a peak sensitivity at 950 nm. It has a typical short circuit current of 50 μA and a dark current of 2 nA, indicating low signal noise. The device's typical rise and fall times of 80 nanoseconds facilitate fast response in switching and sensing circuits.
Operating temperature spans from -40 °C to +100 °C, enabling reliable performance in diverse industrial, commercial, and laboratory environments. The photodiode's angle of half sensitivity is 65°, providing a defined directionality for precise detection.
This component is most suitable for applications such as infrared remote controllers, air data transmission systems, and IR radiation detection in industrial automation and instrumentation. It is recommended for pairing with Vishay TSAL series IR emitters to create effective IR communication pairs.
Designed for infrared radiation detection and remote control applications. Features a side-looking black plastic package with daylight filter. Operates in a wide temperature range from -40°C to 100°C. Has fast response times with typical rise and fall times of 80 nanoseconds.
Compact dimensions of 5 x 4 x 6.8 mm and a radiant sensitive area of 7.5 mm². High radiant sensitivity and a 50 μA short circuit current typical. Suitable for use with TSAL series IR emitters for air data transmission systems.
Complies with RoHS standards and uses forward polarity with 2 pins. Packaging type includes tape and reel for automated production processes. Check other Vishay infrared Photodiodes and components in the Electronics Components category on EnvMart for compatible and complementary products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BPW41N photodiode operates efficiently over a temperature range from -40°C to +100°C.
This model has compact dimensions of 5 mm in length, 4 mm in width, and 6.8 mm in height.
The radiant sensitive area of the BPW41N is 7.5 mm², allowing effective infrared signal capture.
The angle of half sensitivity for the BPW41N is 65°, providing a defined directionality for detection.
The typical short circuit current for this photodiode is 50 μA, indicating a high level of radiant sensitivity.
This photodiode is packaged in tape and reel format, suitable for automated production processes.
The peak sensitivity wavelength for this model is 950 nm, with a detection range from 870 nm to 1050 nm.
The typical rise and fall times for the BPW41N are both 80 nanoseconds, facilitating fast response in applications.
The dark current of this photodiode is 2 nA, which indicates low signal noise during operation.
This model features a through-hole mount with two pins for easy integration into electronic assemblies.
Yes, the BPW41N complies with RoHS standards, ensuring it meets environmental regulations.
The BPW41N is suitable for infrared remote control systems, air data transmission, and infrared radiation detection in industrial automation.
