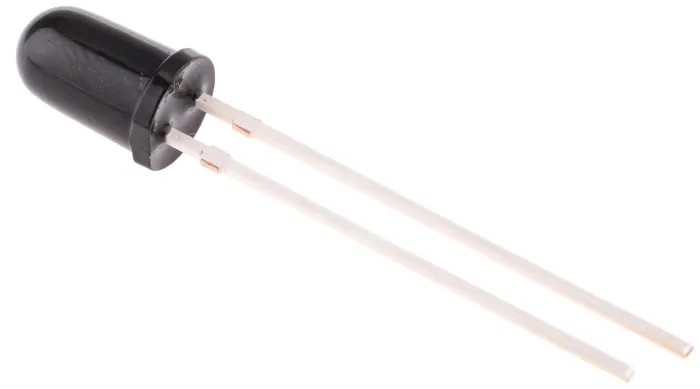

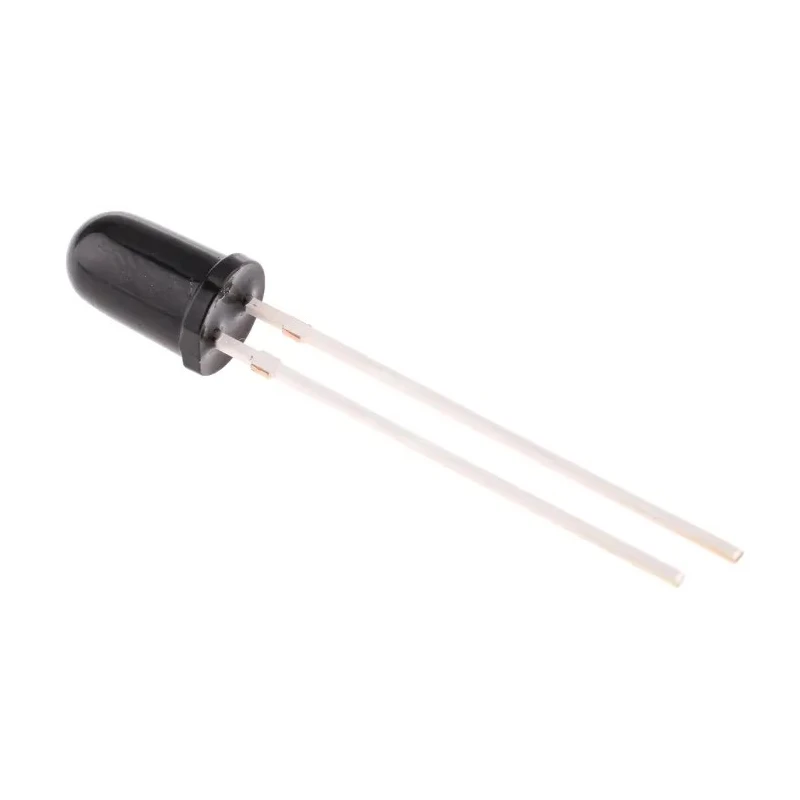

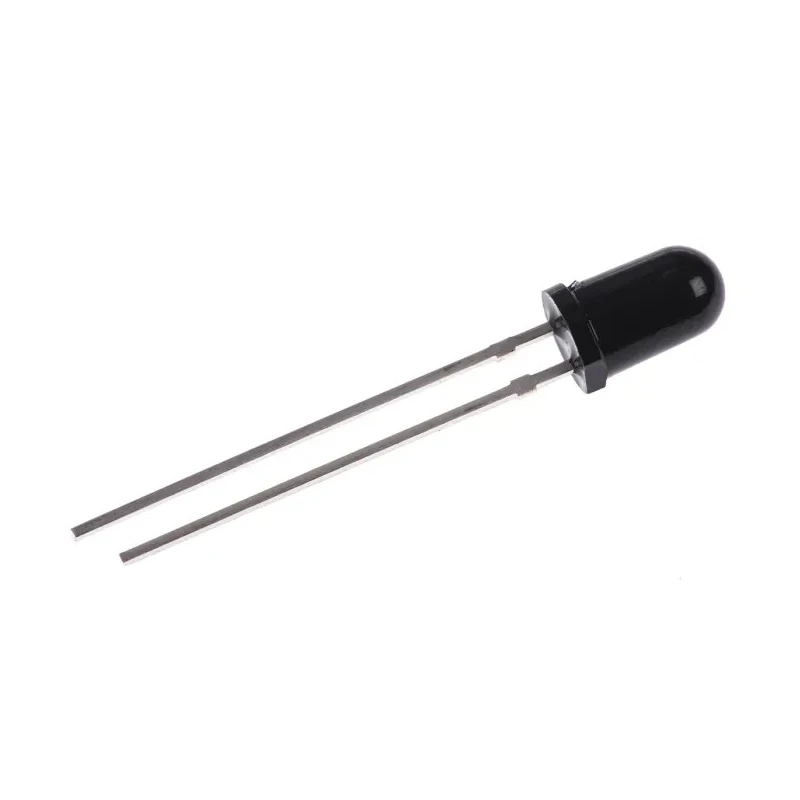

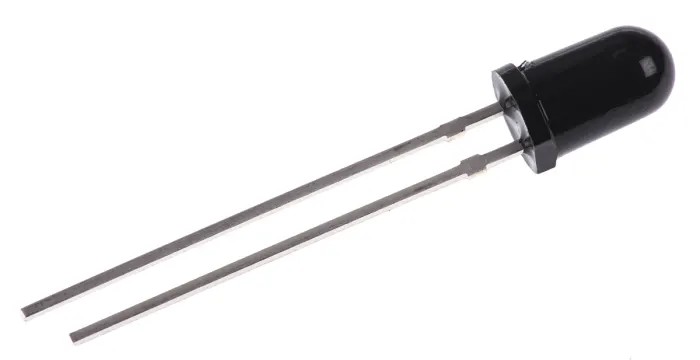

Vishay Infrared Photodiode ± 20 ° Angle, Through Hole T-1 3/4 Package 5mm Diameter BPV10NF

Free Delivery in India | Lowest Global Shipping Charges

Vishay Infrared Photodiode ± 20 ° Angle, Through Hole T-1 3/4 Package 5mm Diameter BPV10NF

Name: Vishay Infrared Photodiode ± 20 ° Angle, Through Hole T-1 3/4 Package 5mm Diameter BPV10NF
Brand: Vishay
SKU: 214069
Price: 0.55 USD
Availability: InStock



Category Photodiode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	5mm
Brand	Vishay
Height	8.6mm
Length	5.75mm
Model	BPV10NF
Packaging	Bulk
Width	5.75mm
Mount Type	Through Hole
Series	BPV10
Short Circuit Current	50μA
Maximum Operating Temperature	100°C
Package Type	T-1 3/4
Minimum Operating Temperature	-40°C
Polarity	Forward
Operating temperatures	-40 to +100 °C
Dark Current	5nA
Open Circuit Voltage	450mV
Standards/Approvals	RoHS Directive 2002/95/EC, WEEE 2002/96/EC
Number of Pins	2
Typical Fall Time	2.5ns
Wavelength of Peak Sensitivity	940nm
Spectrums Detected	Infrared
Breakdown Voltage	60V
Minimum Wavelength Detected	790nm
Maximum Wavelength Detected	1050nm
Angle of Half Sensitivity	± 20 °

Key Features

Detects infrared spectrums with 940 nm peak sensitivity.
Through Hole T-1 3/4 (5mm diameter) package for PCB mounting.
Operates within a temperature range of -40 to +100 °C.
Fast response times with typical 2.5 ns rise and fall times.
Black plastic lens with daylight filter for optical stability.
Suitable for IR remote controls and air data transmission applications.
Compliance with RoHS Directive 2002/95/EC and WEEE 2002/96/EC.
Forward polarity operation with 450 mV typical open circuit voltage.

Product Description

Vishay BPV10NF Infrared Photodiode in a Through Hole T-1 3/4 package provides high radiant sensitivity and fast response times, supporting applications requiring reliable infrared detection at 940 nm peak wavelength.

This silicon PIN photodiode features a compact 5 mm diameter black plastic lens with a daylight filter, ensuring stable optical performance with ± 20 ° angle sensitivity. It operates efficiently from -40 °C to +100 °C, suitable for industrial, electronic, and telecommunications uses.

Typical electrical performance includes low dark current (5 nA), a short circuit current of 50 μA, and fast rise/fall times of 2.5 ns enhancing high-speed IR detection. The photodiode is designed for through-hole mounting, making it compatible with various PCB assemblies.

The component is RoHS and WEEE compliant, supporting environmental regulations. Applications include IR remote control systems, air data transmission, and general IR detection setups. Compact dimensions allow integration in space-constrained electronic circuits.

Polarity is forward biased, and the device supports a maximum breakdown voltage of 60 V. Typical open circuit voltage is 450 mV, facilitating signal interfacing. Vishay’s BPV10NF series is trusted in laboratory, industrial and electronic engineering environments for its robust performance and compliance.
