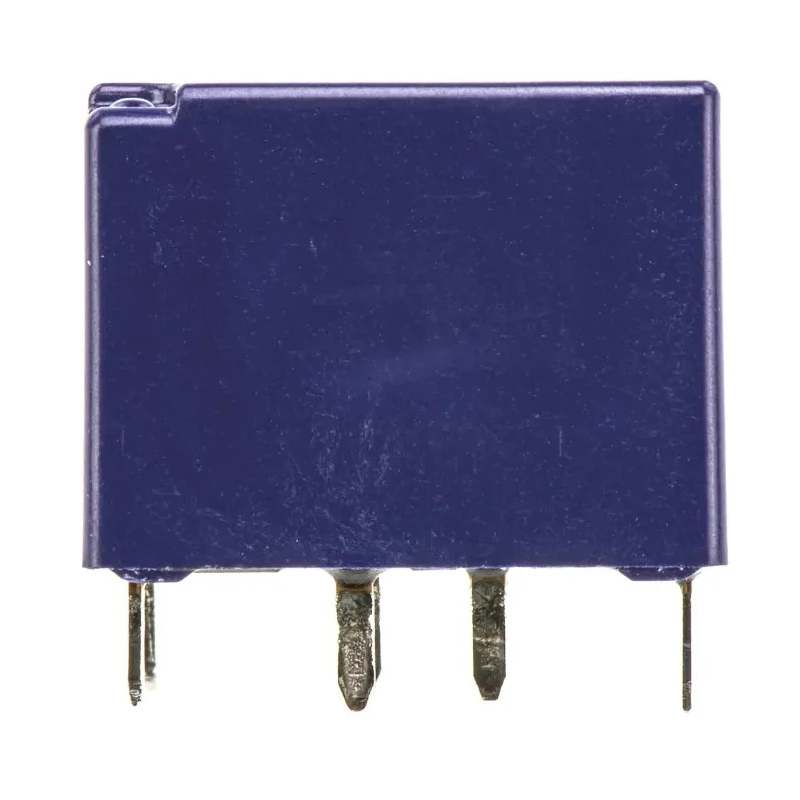

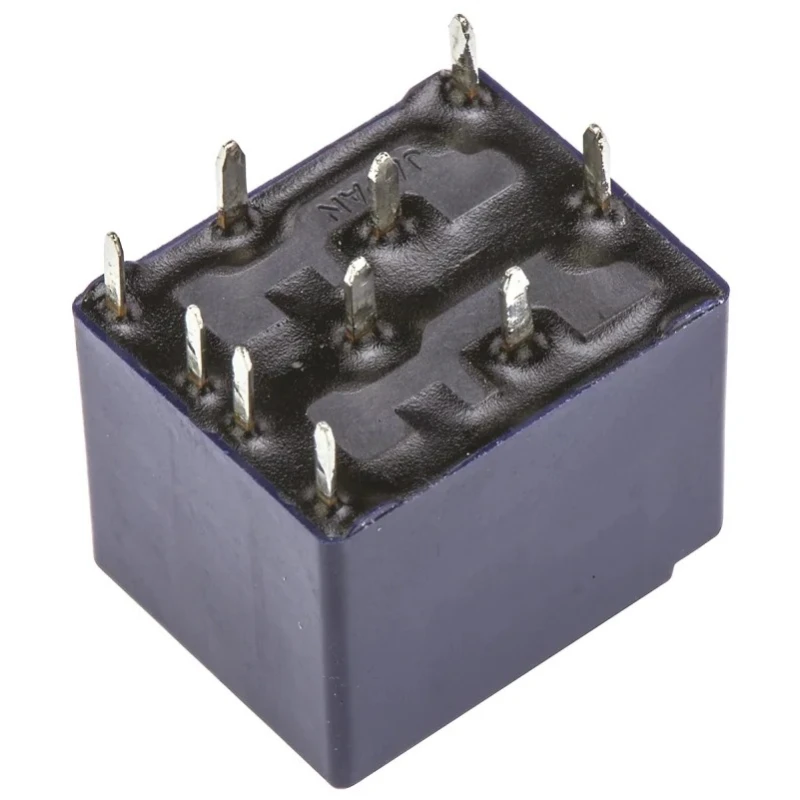

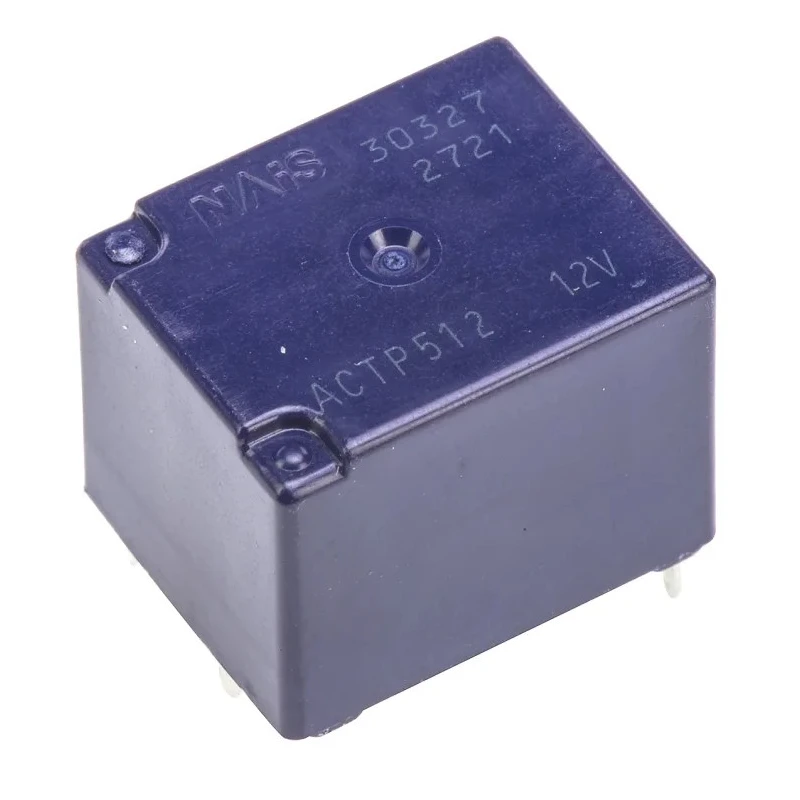

Panasonic PCB Automotive Relay 12V DC Coil Voltage 1W Coil Power 30A Switching Current DPDT ACTP512
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 13.5mm |
| Length | 17.4mm |
| Model | ACTP512 |
| Depth | 14mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | ACTP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Number of Poles | 2 |
| Coil Resistance | 144Ω |
| Coil Power | 1W |
| Isolation Coil To Contact | 500Vrms |
Key Features
- Operates with a nominal coil power of 1 watt.
- Features a dual pole double throw contact arrangement.
- Provides a maximum switching current of 30 amperes.
- Constructed for silent operation with sealed build for durability.
- Compact design optimized for PCB mounting in automotive circuits.
- Suitable for use in power windows, auto door locks, and power sunroof systems.
- Coil resistance is 144 ohms for efficient electrical performance.
- Wide operating temperature range from -40°C to 85°C.
Product Description
Panasonic ACTP512 PCB Automotive Relay is designed with a 12V DC coil voltage and DPDT (Double Pole Double Throw) contact configuration, ensuring reliability and versatility in automotive electrical systems.
This relay features a nominal coil power consumption of 1 watt, complemented by a coil resistance of 144 ohms, offering efficient switching with minimal power loss. Its compact dimensions of 17.4mm length, 13.5mm height, and 14mm depth make it an ideal choice for PCB mounting, helping maintain slim automotive assemblies.
The relay is engineered for silent operation with a sealed construction that protects internal components, allowing usage in environments where noise reduction is critical. It provides a robust maximum switching current of 30A, capable of handling transient loads up to 40A for 2 minutes and sustained loads of 25A for 1 hour at 20°C.
Applications of this automotive relay include control of power windows, powered seats, auto door locks, slide door closers, and power sunroofs, making it a versatile component for modern vehicle electrical systems.
Nominal coil power: 1 watt for energy efficiency. Silent operation with sealed construction for durability and noise reduction. DPDT contact configuration with silver alloy contacts ensuring excellent conductivity. Wide operating temperature range from -40°C to 85°C suitable for harsh automotive environments.
Compact PCB mount design with reliable through hole terminal type. Isolation voltage of 500Vrms between coil and contacts for safety. Maximum switching current 30A with enhanced performance during short-term peak loads. Dimensions: 17.4mm (L) x 13.5mm (H) x 14mm (D) for easy integration.
Manufactured in Japan, this Panasonic automotive relay provides high quality and dependable performance for automotive and industrial electronic control applications. For more automotive electrical components and relays, explore EnvMart's extensive catalog offering premium, reliable products suitable for various industrial and commercial needs.
Explore more products in our Automotive Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current of this relay is 30 amperes, with the capability to handle transient loads up to 40A for 2 minutes and sustained loads of 25A for 1 hour at 20°C.
This model operates with a 12V DC coil voltage and has a nominal coil power consumption of 1 watt.
The relay has compact dimensions of 17.4mm in length, 13.5mm in height, and 14mm in depth, making it suitable for PCB mounting.
The coil resistance of this relay is 144 ohms, which contributes to its efficient electrical performance.
It features a dual pole double throw (DPDT) contact configuration, providing versatility in automotive electrical systems.
This relay operates effectively within a wide temperature range of -40°C to 85°C, suitable for harsh automotive environments.
The contacts are made from silver alloy, ensuring excellent conductivity and performance.
The isolation voltage between the coil and contacts is 500Vrms, providing safety in operation.
This model is designed for PCB mounting and features a through hole terminal type for easy integration.
It is suitable for applications such as power windows, auto door locks, powered seats, and power sunroofs in automotive systems.
This relay is manufactured in Japan, ensuring quality and performance standards.
The relay belongs to the ACTP series, which includes various automotive relays designed for reliable performance.
