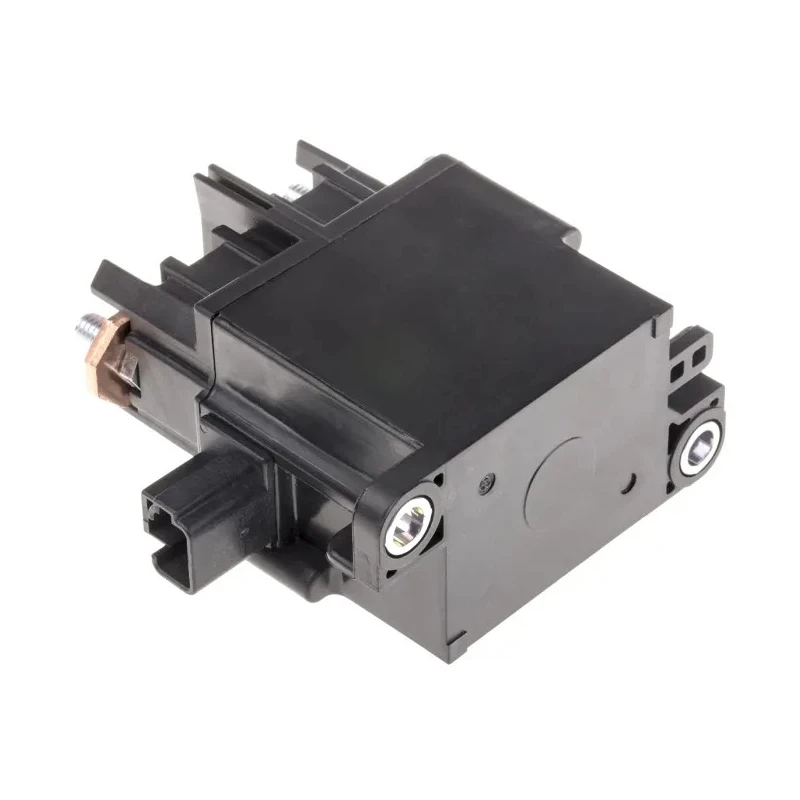

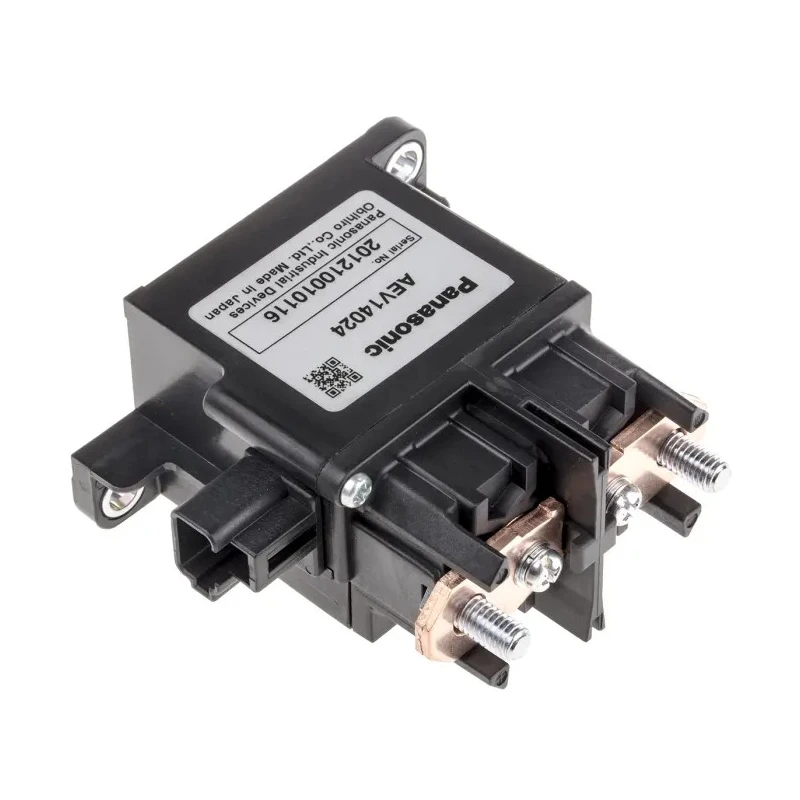

Panasonic Flange Automotive Relay 24V DC Coil Voltage 120A Switching Current SPST AEV14024
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 80mm |
| Length | 82.75mm |
| Model | AEV14024 |
| Depth | 40mm |
| Mount Type | Flange |
| Contact Material | Copper Alloy |
| Series | AEV |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 1 |
| Coil Resistance | 136.4Ω |
| Coil Power | 4.2W |
| Isolation Coil To Contact | 2.5kV |
Key Features
- Compact flange mount design for secure installation.
- High capacity with 120A switching current suitable for automotive applications.
- Sealed capsule mechanism with hydrogen gas prevents contact oxidation.
- Wide operating temperature range from -40°C to 80°C.
- Copper alloy contacts ensure good conductivity and durability.
- Screw terminal type with terminal protection cover for safety.
- Lightweight and dust-proof, waterproof construction.
- Contact isolation voltage of 2.5kV for electrical safety.
Product Description
Panasonic AEV14024 flange automotive relay features a 24V DC coil voltage and a high switching current capacity of 120A with Single-Pole, Single-Throw (SPST) contact configuration. This new relay is designed for robust and reliable power switching in automotive and high-current electrical applications.
The relay utilizes a compact flange mount type housing measuring 82.75mm in length, 80mm in height, and 40mm in depth, making it ideal for space-sensitive designs. Featuring a sealed capsule mechanism encapsulated in hydrogen gas, it prevents oxidation and ensures high contact reliability over extended operating periods.
With copper alloy contacts and a coil resistance of 136.4Ω, it operates efficiently with a coil power of 4.2W. Rated for wide temperature operation from -40°C to 80°C, this relay is well suited to harsh automotive environments and demanding use cases such as electric vehicles, hybrid vehicles, battery charging systems, and construction equipment.
The relay’s screw terminal type with terminal protection cover enhances safety and secure connections. Its capacitor-grade contact isolation voltage of 2.5kV offers reliable electrical insulation between coil and contact parts.
Compact and lightweight, the Panasonic AEV series automotive relays are a trusted choice for switching high current or high DC voltage circuits. Manufactured in Japan, it ensures premium quality and long operational life for diverse industrial, automotive, and commercial applications.
Compact flange mount design for secure installation. High capacity with 120A switching current suitable for automotive applications. Sealed capsule mechanism prevents contact oxidation. Wide operating temperature range from -40°C to 80°C.
Copper alloy contacts ensure durability and conductivity. Explore the environment of Automotive Relays and power relays at EnvMart for more industry-leading products and solutions from Panasonic.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 24V DC.
This model has a maximum switching current capacity of 120A.
It features a Single-Pole, Single-Throw (SPST) contact configuration.
The relay can operate within a temperature range of -40°C to 80°C.
The contacts are made from copper alloy, ensuring good conductivity and durability.
It features a compact flange mount design for secure installation.
The contact isolation voltage is rated at 2.5kV, providing reliable electrical insulation.
The coil resistance for this relay is 136.4Ω.
It utilizes a screw terminal type with a terminal protection cover for safety.
This relay is manufactured in Japan.
The relay requires a coil power of 4.2W to operate.
It is suitable for automotive applications, including electric vehicles, hybrid vehicles, and battery charging systems.
