Power Integrations High Side Off Liner Power Switch IC 8-Pin DIP-C 15W 1350mA TNY276PN

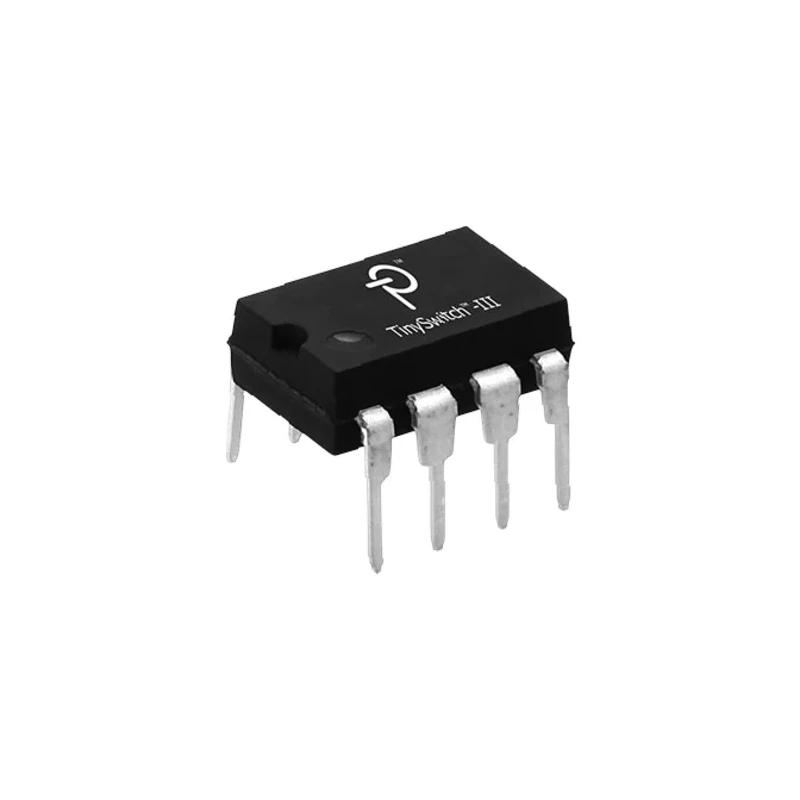

Power Integrations TNY276PN High Side Off Liner Power Switch IC in an 8-Pin DIP-C package integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit circuitry, and thermal shutdown features. It delivers a power rating of 15W with an operating current of 1350mA, making it ideal for efficient power switching applications in power management circuits.

This power switch IC employs a simple ON/OFF control scheme that requires no loop compensation, streamlining design and minimizing system costs. The user-selectable current limit via BP/M capacitor maximizes MOSFET and magnetic power delivery while minimizing overload power risks. A self-biased configuration eliminates the need for bias winding or additional bias components, simplifying the design further.

Frequency jittering reduces EMI, enabling cost savings on EMI filters. The device is rated for operation between -40°C and 150°C, ensuring reliability in demanding industrial environments. The compact DIP-C through hole mount package (8-pin) measures 9.83 mm in length, 6.6 mm in width, and 3.68 mm in height, offering easy mounting on PCBs.

Integrated 700 V power MOSFET and oscillator. User-selectable current limit for power delivery optimization. Simple ON/OFF control with no loop compensation required. Self-biased design removes need for bias windings. Frequency jittering reduces EMI and filter costs.

Wide operating temperature range from -40°C to 150°C. Compact 8-pin DIP-C through-hole package for PCB mounting.

This Power Switch IC is suitable for industrial, power supply, and electronic component manufacturing applications, where efficient and reliable power switching is critical. It supports improved power delivery with built-in protections and simplified design requirements.
