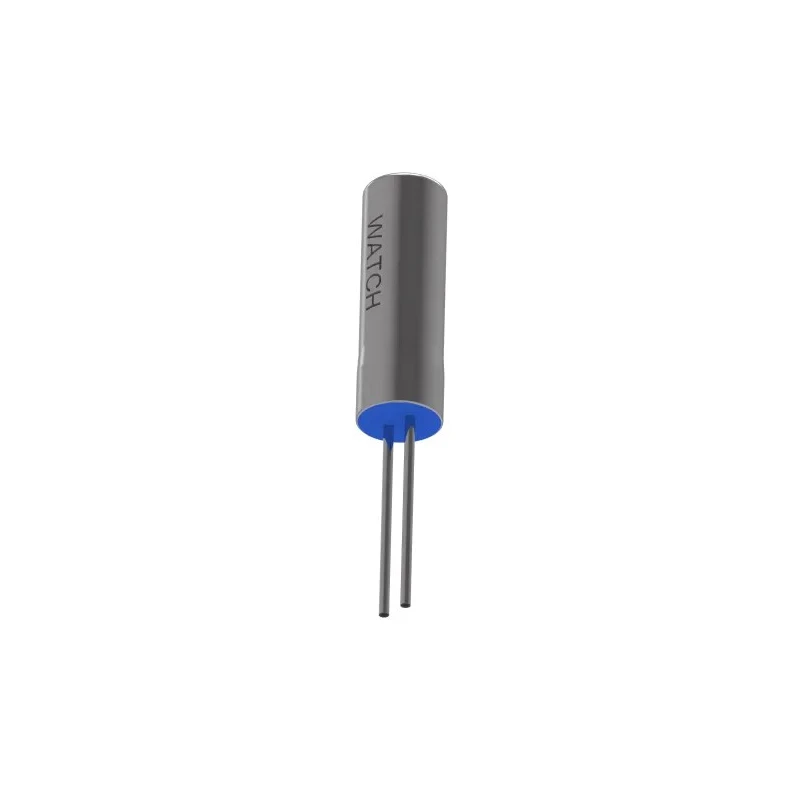

IQD 32.768 kHz Crystal Unit ±20 ppm Cylindrical 2-Pin 8.2 mm x 17.2 mm x 3 mm LFXTAL002995B

Free Delivery in India | Lowest Global Shipping Charges

IQD 32.768 kHz Crystal Unit ±20 ppm Cylindrical 2-Pin 8.2 mm x 17.2 mm x 3 mm LFXTAL002995B



Category Crystal Unit Brand IQD Condition New

Specifications

Country of Origin	India
Brand	IQD
Height	8.2mm
Length	17.2mm
Model	LFXTAL002995B
Packaging	Bulk
Width	3mm
Mount Type	Through Hole
Series	WATCH-3X8
Maximum Operating Temperature	85°C
Package Type	Cylindrical
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	32.768kHz
Load Capacitance	12.5pF
Series Resistance	50kΩ

Key Features

The crystal operates at a standard frequency of 32.768 kHz, ideal for precise timing applications.
Manufactured with a load capacitance of 12.5 pF and maximum shunt capacitance of 2.0 pF.
Compact physical dimensions of 8.2 mm diameter, 17.2 mm length, and 3 mm width provide easy PCB integration.
Guaranteed frequency stability with ±20 ppm tolerance at 25°C and an aging rate of ±5 ppm per year.
Designed to operate reliably within a temperature range of -40°C to +85°C.
Features a series resistance of 50 kΩ, suitable for low-power embedded systems.
Compliant with RoHS standards ensuring environmental safety.

Product Description

The IQD LFXTAL002995B is a precision 32.768 kHz crystal unit designed for use in timekeeping and frequency control applications where accuracy and reliability are paramount.

This cylindrical, through-hole mounted crystal unit with 2 pins features a compact footprint measuring 8.2 mm in diameter, 17.2 mm in length, and 3 mm in width, making it convenient for integration in various electronic devices.

The unit supports a load capacitance of 12.5 pF and maintains a frequency tolerance of ±20 ppm at 25°C, essential for accurate timing circuits found in watches, clocks, and embedded systems. Its series resistance of 50 kΩ accommodates low-power consumption requirements.

Operating temperature range from -40°C to +85°C ensures stable performance in diverse environmental conditions. The aging rate is controlled at ±5 ppm per year, supporting long-term stability.

Compliant with RoHS directives, this crystal unit meets environmental regulations, making it suitable for industrial, laboratory, consumer electronics, and manufacturing applications.

The crystal provides stable frequency in timekeeping devices. Its compact cylindrical design simplifies PCB layout and mounting. Wide temperature range supports use in automotive and industrial electronics. Low series resistance improves efficiency in power-sensitive applications.

RoHS compliance ensures material safety and environmental friendliness. The package is sold in bulk form, suitable for OEMs and production runs requiring reliable crystal oscillators. Explore EnvMart's extensive catalog for more high-precision Crystal Units and electronic components engineered for industrial and commercial use.
