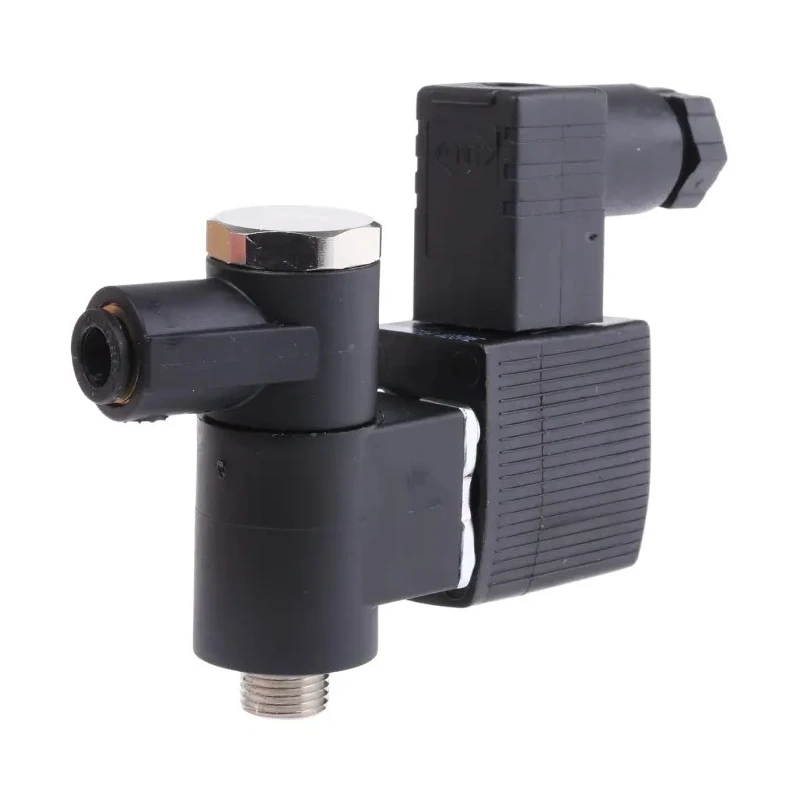

Burkert 3 Port NC Solenoid Valve 24V DC, 1/8 in G Polyamide Body 425299

Burkert 425299 is a 3 port normally closed (NC) solenoid valve featuring a 24V DC supply voltage and a compact design with a 1/8 inch G inlet port size. Its polyamide body material ensures lightweight durability and resistance suitable for various industrial fluid power and pneumatic applications.

The valve operates with a 1.2 mm orifice diameter permitting precise flow control and is rated for a maximum operating pressure of up to 10 bar. Fast response times with maximum opening and closing times of 12 ms each enable efficient process control, making it ideal for pneumatic systems.

Equipped with servo assist, the valve supports smooth and reliable actuation. It is designed for diverse applications including compressed air, liquids such as water, and hydraulic oil, suitable for industrial automation, manufacturing, and process control environments.

The valve assembly features a screwed coil system with an FKM seal and includes a Banjo threaded connection for easy direct mounting on pneumatic valves. Its compact dimensions enhance installation flexibility for manifold, flange, or push-in mounting.

Operating temperature ranges from -10°C to 55°C, and the valve is IP65 rated, providing protection against dust and water, enhancing suitability for demanding industrial conditions.

Operates at a supply voltage of 24V DC. Nominally closed valve position with three ports. Polyamide body offers strong mechanical resistance and reduced weight. Handles maximum pressure of 10 bar efficiently. Fast actuation times of 12 ms for open and close cycles.

FKM sealing ensures chemical compatibility and durability. Banjo threaded design enables user-friendly mounting on pneumatic valves. Suitable for use with compressed air, water, and hydraulic oil fluids. Operating temperature capability from -10°C to 55°C for broad application range.

Manufactured in Germany ensuring premium quality standards.

This Burkert solenoid valve 425299 represents a reliable component for pneumatic and fluid control systems in industrial, manufacturing, HVAC, and laboratory environments. It combines rapid response, robust construction, and versatile operation to deliver precision and durability for automated valve control.
