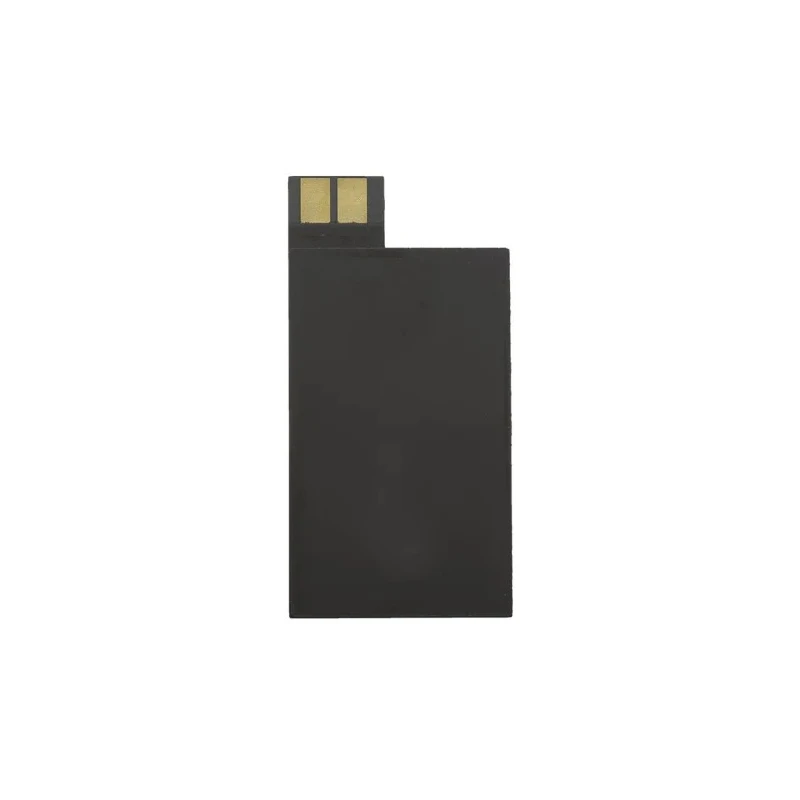

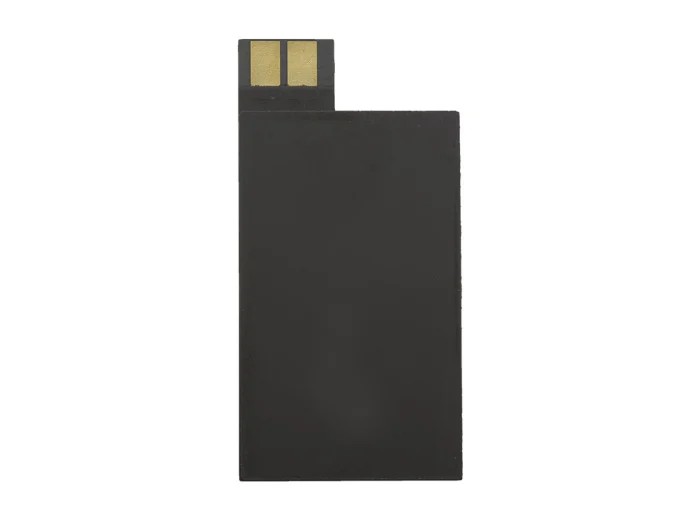

Molex Plate RFID Antenna with Copper Flex Connector NFC 13.56MHz 146236-0111
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Connector Type | Copper Flex |
| Series | 146236 |
| Standards/Approvals | REACH SVHC Contained Per - D(2020)9139-DC (19 Jan 2021), Halogen-Free Status Low-Halogen, EU RoHS China RoHS |
| Maximum Frequency | 13.56MHz |
| Minimum Frequency | 13.56MHz |
| RF Protocols | NFC |
| Antenna Physical Form | Plate |
| Antenna Mount Type | Adhesive |
| Antenna Internal Construction | Ferrite |
| Antenna Form Factor | Rectangular |
Key Features
- The antenna has a plate physical form with ferrite internal construction.
- It supports NFC RF protocols ensuring compatibility with near field communication systems.
- The antenna mount type is adhesive for straightforward application on devices.
- Equipped with a copper flex connector for reliable electrical connection.
- Operates at a fixed frequency of 13.56MHz for payment systems and access control uses.
- This model is part of the Molex 146236 series known for low-halogen and RoHS compliance.
- Manufactured in China with a net weight of approximately 0.499 grams.
Product Description
Molex 146236-0111 Plate RFID Antenna is a high-quality rectangular antenna featuring a copper flex connector, optimized for NFC applications at 13.56MHz frequency. This antenna integrates ferrite internal construction within a plate form factor, offering reliable performance for RFID systems in various industrial and commercial environments.
The adhesive mounting type facilitates easy installation on payment systems, boarding pass readers, tagging readers, and access control devices. Designed to comply with REACH SVHC, EU RoHS, China RoHS standards, and is low-halogen, making it suitable for environmentally sensitive applications.
With a compact length of 23 mm and lightweight design (0.499 grams), it is ideal for embedded electronics requiring NFC functionality. The antenna is fixed at operating frequency 13.56MHz compatible with NFC protocol. Rectangular antenna form factor ensures optimal signal capture and transmission.
Adhesive mount type enables flexible and secure placement in device integration. Copper flex connector provides durable and stable electrical connection. Ferrite internal construction enhances antenna efficiency and reduces interference.
Complies with international standards for safety and environmental regulations. Made in China, ensuring consistent manufacturing quality.
This RFID antenna is suitable for applications in industrial automation, telecommunications, commercial payment terminals, access control systems, and modern contactless communication devices.
Explore our wide range of RFID Antennas and connectors at EnvMart for comprehensive solutions tailored to your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a fixed frequency of 13.56MHz, which is compatible with NFC protocols.
It features a copper flex connector, providing a reliable electrical connection for various applications.
The antenna has a plate physical form with a rectangular shape, designed for optimal signal capture and transmission.
The antenna uses an adhesive mount type, allowing for straightforward application on devices such as payment systems and access control devices.
The internal construction of the antenna is made from ferrite, which enhances its efficiency and reduces interference.
It complies with REACH SVHC, EU RoHS, China RoHS standards, and is classified as low-halogen, making it suitable for environmentally sensitive applications.
The antenna has a net weight of approximately 0.499 grams, making it lightweight and suitable for embedded electronics.
This model is manufactured in China, ensuring consistent manufacturing quality.
It is suitable for applications in industrial automation, telecommunications, commercial payment terminals, and access control systems.
This antenna is part of the Molex 146236 series, known for its specific design features and compliance standards.
The ferrite internal construction enhances the antenna's efficiency and reduces interference, improving overall performance in RFID applications.
This model supports NFC RF protocols, ensuring compatibility with near field communication systems.
