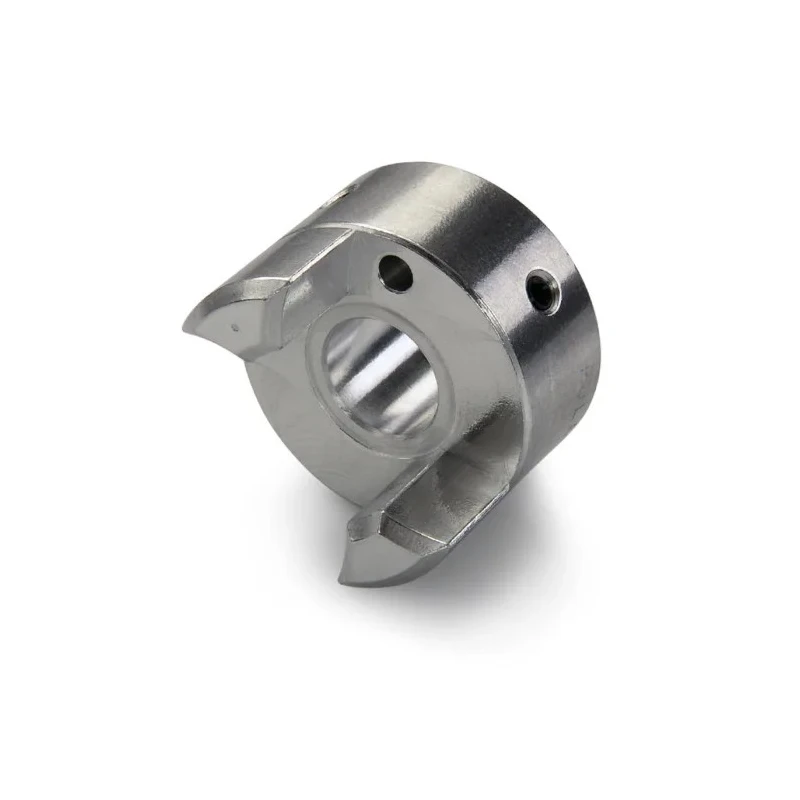

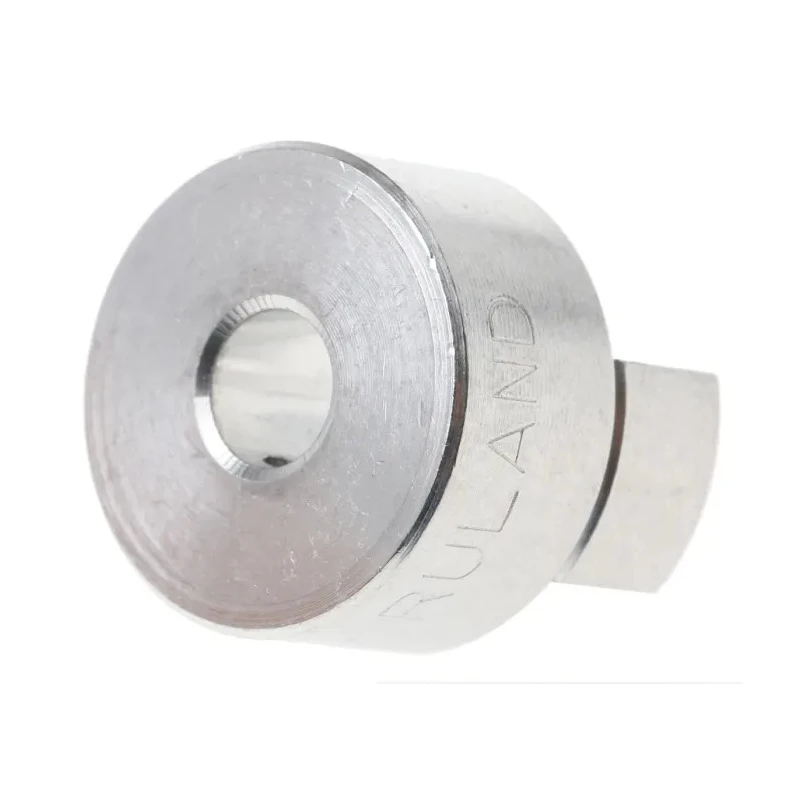

Ruland Flexible Aluminium Jaw Coupler 19.1 mm OD 6 mm Bore 27.2 mm Length MJS19-6-A

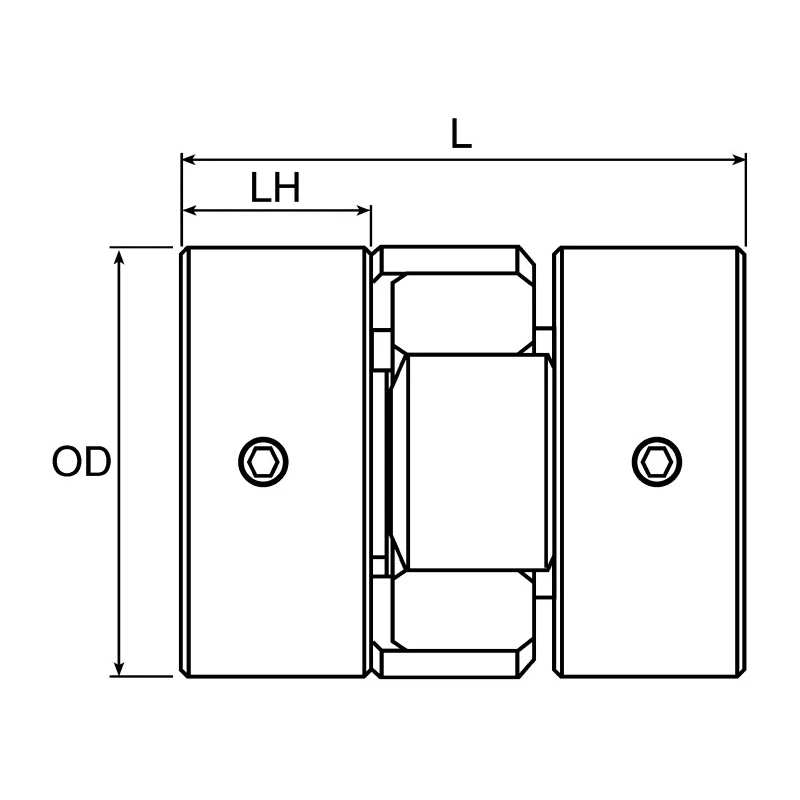

Ruland MJS19-6-A is a flexible jaw coupler designed for mechanical power transmission applications requiring zero backlash and torque damping. Constructed from aluminium, it combines lightweight design with excellent corrosion resistance, making it ideal for industrial machinery and motor connections. The coupler has a 19.1 mm outside diameter, 6 mm finished bore without keyway, and a length of 27.2 mm, supporting speeds up to 8000 rpm.

The coupling uses a three-piece construction composed of two aluminium hubs and an elastic polyurethane spider insert. The spider absorbs impulse loads, reducing mechanical shock and protecting motors and equipment. Available with spider hardness levels of 92 Shore for optimal damping and 98 Shore for enhanced torsional rigidity, the coupling can be customized to specific performance requirements.

The zero-backlash curved jaw design ensures smooth torque transmission and helps electrically isolate components. It is balanced to withstand high bearing loads and accommodates slight angular, axial, and parallel misalignments, enhancing its versatility. The fail-safe design allows continued operation even in the event of spider element failure, which improves reliability.

Note that one complete coupling assembly requires two hubs and a torque disc; only one hub is supplied with this product. Additional parts must be ordered separately to complete the assembly.

Typical industrial use cases include manufacturing machinery, motors, HVAC equipment, fluid power transmission systems, and other mechanical applications where precise torque control and shock absorption are critical. This product is made in the United States and complies with DIN 91 1.9, RoHS, and REACH standards.

Explore EnvMart's offerings for mechanical power transmission couplings to find compatible components and complementary products for your industrial requirements. Constructed from aluminium for lightweight and corrosion resistance.

Features a finished bore without keyway for precise shaft fitment. Maximum operating speed up to 8000 rpm suitable for moderate high-speed applications. Three-piece design with two hubs and an elastic polyurethane spider insert.

Spider options in 92 and 98 Shore hardness for customizable torsional rigidity and damping. Zero-backlash curved jaw design minimizes shock and protects connected equipment. Electrically isolating and balanced to handle high bearing loads with moderate inertia.

Accommodates minor angular, axial, and parallel misalignments. Fail-safe operation allowing coupling to run even if spider element fails. Complete coupling requires two hubs and a torque disc; only one hub supplied per order.
