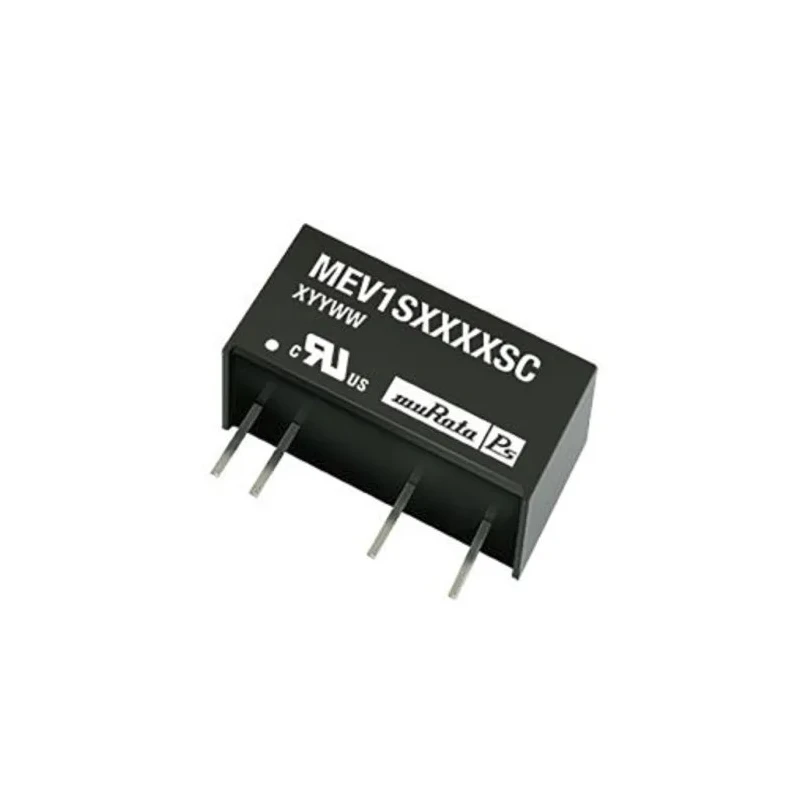

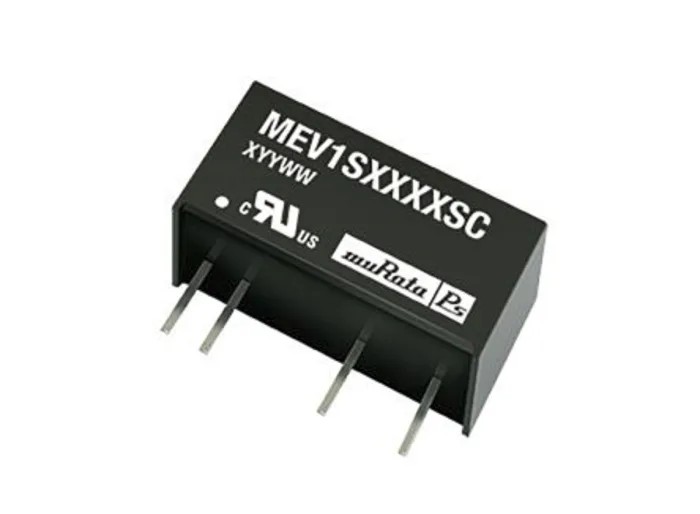

Murata Power Solutions DC/DC Converter MEV1 5V DC Output 13.2V DC Input 1W Through Hole SIP7 85°C MEV1

Murata Power Solutions MEV1 DC/DC Converter model MEV1S1205SC is a high-quality single output DC-DC converter designed for efficient power supply regulation in electronic control systems and industrial applications.

This converter provides a 5V DC output voltage from an input voltage range of 10.8V to 13.2V DC, delivering up to 1 watt of power with an efficiency rating of 84%. It features a through hole SIP7 package with standard pinout to facilitate PCB mounting and easy replacement in existing designs.

The device offers 3kV DC galvanic isolation, critical for reducing switching noise and protecting system components in sensitive electronic equipment.

Engineered for environments with wide temperature fluctuations, it reliably operates from -40°C to a maximum of 85°C without the need for heatsinks or external components, enhancing application flexibility.

Its compact size (19.5mm x 6.8mm x 10mm) and lightweight build (2.5 grams) make it ideal for space-constrained designs where power density is a priority.

Additional technical features include a low ripple and noise output of 15mV peak-to-peak and a high mean time between failures (MTBF) exceeding 7.5 million hours, ensuring durability and long-term reliability.

The MEV1S1205SC model is fully encapsulated with toroidal magnetics and does not contain electrolytic or tantalum capacitors, contributing to improved lifespan and robustness under industrial stress conditions.

This RoHS compliant converter uses UL94V-0 package material, fulfilling safety and environmental standards.

Applications for the Murata MEV1S1205SC DC/DC converter include industrial control boards, laboratory instruments, telecommunications equipment, medical devices, and other precision electronics requiring isolated, regulated DC power conversion.

The converter offers reliable galvanic isolation rated at 3kV DC to minimize switching noise. Efficiency reaches up to 84%, optimizing power conversion in control system applications. Standard SIP7 package with industry-standard pinout for easy integration.

Operates in wide temperature range from -40°C up to 85°C for robust industrial use. Compact dimensions of 19.5mm length, 6.8mm width, and 10mm depth with a light weight of 2.5 grams. Designed for single output with low ripple and noise of 15mV peak-to-peak.

Unregulated output suitable for applications requiring stable low voltage conversion. Built with high reliability and MTBF of over 7.5 million hours to ensure long service life. Fully encapsulated construction with toroidal magnetics and no electrolytic or tantalum capacitors.

RoHS compliant and packaged with UL94V-0 flammability rated material for safety. Explore the full range of Murata Power Solutions DC/DC Converters for reliable and efficient power management on EnvMart.
