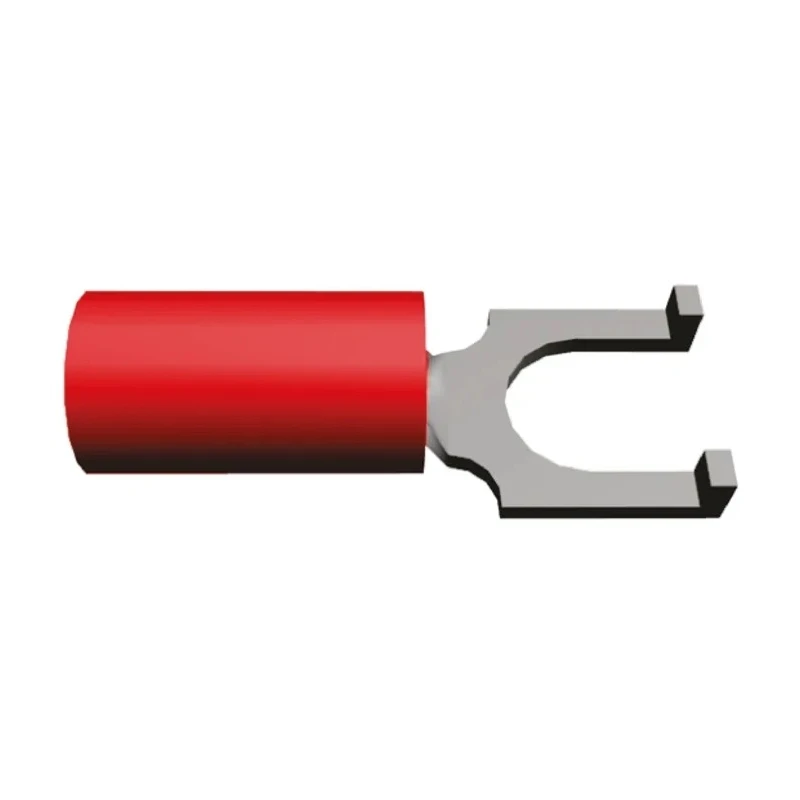

TE Connectivity PLASTI-GRIP Insulated Fork Terminal 22 AWG to 16 AWG M5 Stud Size Polyvinyl Chloride Red 328516
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Model | 328516 |
| Width | 7.52mm |
| Insulation | Insulated |
| Overall Length | 20.34mm |
| Contact Material | Copper |
| Series | PLASTI-GRIP |
| Insulation Material | Polyvinyl Chloride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M5 |
| TE Connectivity Crimp Spade Connector, 5mm Stud Size Vinyl, RedBrand | TE Connectivity |
| RS PRO Insulated Fork Terminal, 22 AWG to 16 AWG, M5 Stud Size Vinyl, RedBrand | RS PRO |
Key Features
- Made of tin plated copper for high conductivity and corrosion resistance.
- Features a high dielectric strength vinyl insulation sleeve rated at 94V-0.
- Designed with serrated inner barrels to ensure strong electrical contact and tensile strength after crimping.
- Funnelled wire barrel entry facilitates easy wire insertion.
- Compatible with wire sizes from 0.26 mm² to 1.65 mm² (22 AWG to 16 AWG).
- Overall length measures 20.34 mm with a thickness of 0.79 mm.
- Red insulation color indicates wire gauge compatibility.
- Stud size is M5, suitable for corresponding stud connections.
Product Description
TE Connectivity 328516 PLASTI-GRIP insulated fork terminal is engineered for reliable wire crimping in electrical and electronic applications. It supports wire sizes from 22 AWG to 16 AWG, making it ideal for medium gauge wiring needs in industrial, commercial, and residential wiring systems.
The terminal features high conductivity copper material plated with tin to ensure excellent electrical performance and corrosion resistance. Its polyvinyl chloride (PVC) insulation sleeve rated at 94V-0 offers high dielectric strength and robust electrical isolation.
The serrated inner barrel design provides superior mechanical retention and electrical contact after crimping, which enhances tensile strength of the wire connection. The funnelled barrel entry ensures easy insertion of the stripped wire, facilitating efficient installation.
Measuring 20.34 mm in overall length and 0.79 mm thickness, with a width of 7.52 mm, this red insulated Fork Terminal has an M5 stud size, suitable for secure fastening in numerous electrical assemblies. The red color insulation helps easily identify wire gauge compatibility.
This terminal is widely used in electronics, power connectors, automotive wiring, control panels, industrial machinery, and HVAC systems, providing secure, durable electrical connections. It is compliant with industry standards though no specific certifications are indicated.
Made of tin plated copper for enhanced conductivity and corrosion resistance. High dielectric strength vinyl insulation sleeve rated at 94V-0 for electrical isolation. Serrated inner barrel ensures maximum electrical contact and tensile strength.
Funnelled entry on barrel facilitates easy wire insertion. Compatible with wire sizes 0.26 mm² to 1.65 mm² (22 AWG to 16 AWG). M5 stud size for secure terminal fastening. Overall length 20.34 mm, width 7.52 mm, thickness 0.79 mm.
Explore the TE Connectivity range on EnvMart for quality wire terminals and splices to meet diverse industrial and electronics connectivity needs.
