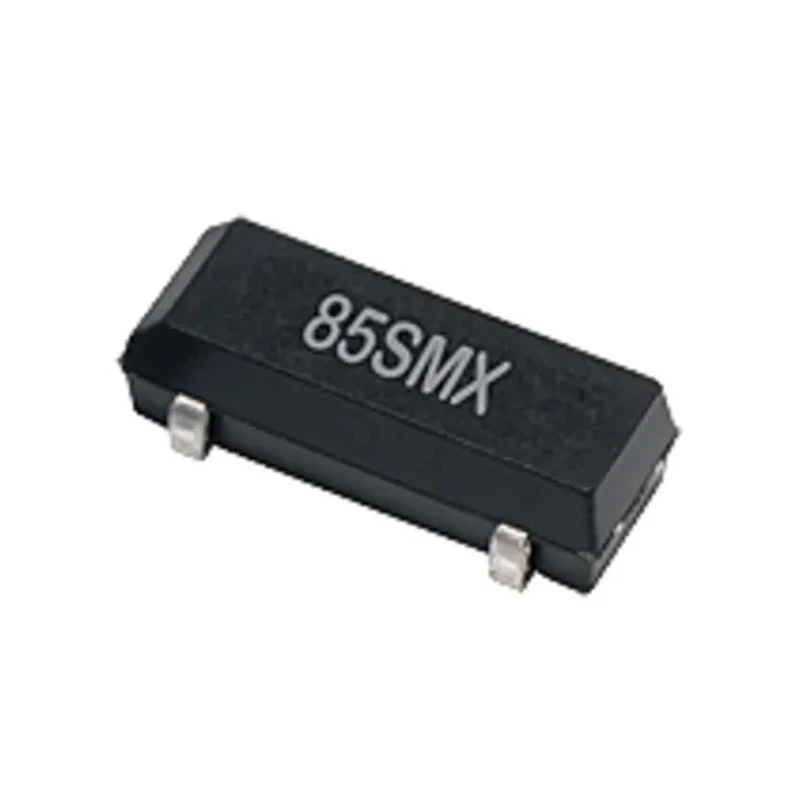

IQD 32.768 kHz Crystal Unit ±20 ppm Surface Mount 4-Pin 2.5 mm Height 8.7 mm Length 3.7 mm Width LFXTAL016178

IQD LFXTAL016178 32.768 kHz Crystal Unit is a high precision surface mount device designed for real-time clock and timing applications.

Featuring a standard frequency of 32.768 kHz with a frequency tolerance of ±20 ppm, this crystal unit ensures stable and accurate oscillations. It comes in a compact Surface Mount Device (SMD) package with dimensions of 8.7 mm length, 3.7 mm width, and 2.5 mm height, and includes 4 pins for reliable electrical connections.

The device is specified with a load capacitance of 6 pF and a series resistance of 50 kΩ to optimize its electrical performance. The operating temperature range from -40°C to 85°C makes it suitable for a variety of industrial and commercial environments requiring robust temperature stability.

This crystal unit is RoHS 2015 and REACH compliant, reinforcing its suitability for environmentally-conscious applications. The packaging in tape and reel format supports automated surface mount assembly processes, improving manufacturing efficiency.

Applications include use in electronic devices requiring precise timekeeping such as real-time clocks, metering, and other electronic timing circuits. Its compact size and electrical characteristics make it ideal for integration in modern electronics, telecommunications, and industrial control equipment.

Industry standard SMD package for reliable mounting and performance. Frequency tolerance of ±20 ppm ensuring precise timing. Compact dimensions of 8.7 mm length, 3.7 mm width, and 2.5 mm height. Suitable for real-time clock applications with 4-pin configuration.

Wide operating temperature range from -40°C to 85°C. Load capacitance specified at 6 pF for stable oscillation. Series resistance of 50 kΩ supporting optimal electrical characteristics. RoHS 2015 and REACH compliant ensuring environmental safety.

Taped and reeled packaging facilitating automated assembly processes. Explore our Electronics Components category for more precision Crystal Units and related products suited for industrial, commercial, and consumer electronics applications.
