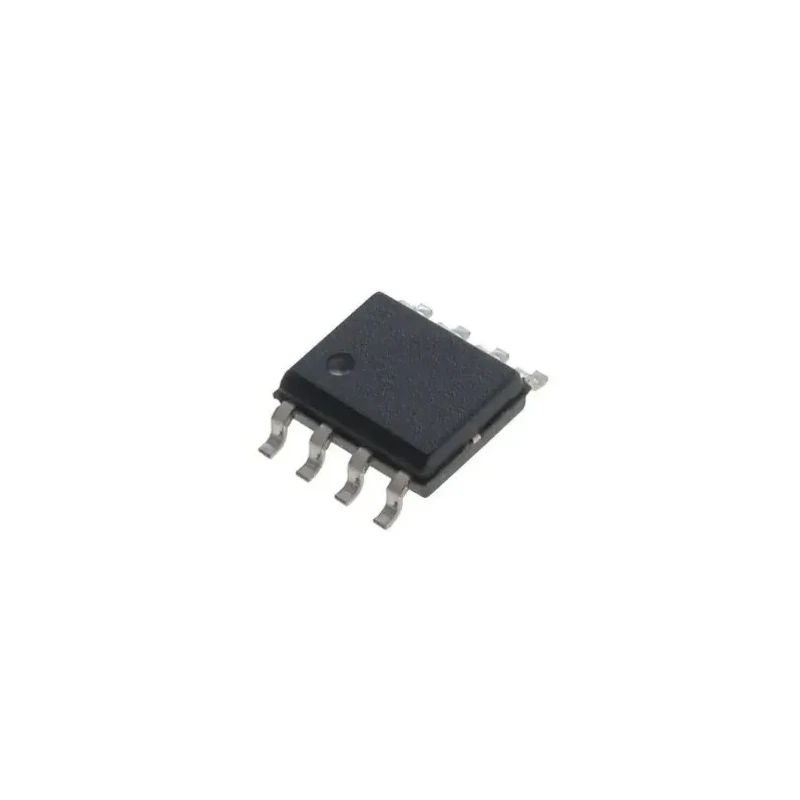

Nisshinbo Micro Devices Operational Amplifier Dual Channel 3 MHz Gain Bandwidth 18V SSOP NJM4558V-TE2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Model | NJM4558V-TE2 |
| Mount Type | Surface |
| Series | NJM4558 |
| Maximum Operating Temperature | 85°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 500 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 200 nA |
Key Features
- Dual channel operational amplifier suitable for surface mount applications.
- Gain bandwidth product of 3 MHz ensures reliable signal amplification.
- Wide supply voltage range from 4V to 18V enables flexible circuit design.
- Low input offset voltage of 6 mV improves precision in amplification.
- Input bias current of 500 nA supports low input current applications.
- Operating temperature range from -40°C to 85°C allows for industrial use.
- Slew rate of 1 V/μs supports fast signal changes without distortion.
- Complies with RoHS environmental standards.
Product Description
The Nisshinbo Micro Devices NJM4558V-TE2 is a dual operational amplifier optimized for high-performance analog signal processing in electronic circuits. Packaged in an 8-pin SSOP form factor, it offers excellent electrical characteristics enabled by bipolar technology and internal compensation on a monolithic silicon chip.
This operational amplifier features a gain bandwidth product of 3 MHz and operates within a voltage range of 4V to 18V, making it suitable for various power supply configurations. The low input offset voltage of 6 mV and input bias current of 500 nA contribute to its precision amplification capabilities. With a slew rate of 1 V/μs, the device handles fast transient signals efficiently.
Designed to operate reliably over a wide temperature range from -40°C to 85°C, the NJM4558V-TE2 is ideal for industrial, laboratory, and commercial electronic applications requiring dependable analog signal amplification.
The device conforms to RoHS directives ensuring environmentally responsible manufacturing. Its surface mount package (SSOP) with 8 pins supports compact PCB layouts and streamlined assembly processes.
Dual channel operational amplifier suitable for surface mount applications. Gain bandwidth product of 3 MHz ensures reliable signal amplification. Wide supply voltage range from 4V to 18V enables flexible circuit design.
Low input offset voltage of 6 mV improves precision in amplification. Input bias current of 500 nA supports low input current applications. Operating temperature range from -40°C to 85°C allows for industrial use. Slew rate of 1 V/μs supports fast signal changes without distortion.
Complies with RoHS environmental standards. Package type is SSOP with 8 pins for compact PCB designs. Part of the NJM4558 series suitable for a variety of analog circuits.
The NJM4558V-TE2 operational amplifier is widely used across multiple sectors including industrial automation, instrumentation, audio electronics, and telecommunications to ensure signal integrity and amplification precision. It is essential for designers looking for a reliable and efficient analog component.
For more products in the Operational Amplifier category, explore the Electronics & Electricals section of EnvMart for global industrial-grade electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz, ensuring reliable signal amplification.
It operates within a supply voltage range of 4V to 18V, allowing for flexible circuit design.
The input offset voltage is 6 mV, which helps improve precision in amplification.
The input bias current is 500 nA, supporting low input current applications.
This model operates reliably over a temperature range from -40°C to 85°C, making it suitable for industrial use.
The slew rate is 1 V/μs, which allows it to handle fast signal changes without distortion.
This operational amplifier features 2 channels, making it a dual channel device.
It is packaged in an 8-pin SSOP (Shrink Small Outline Package), suitable for surface mount applications.
This operational amplifier complies with RoHS environmental standards, ensuring responsible manufacturing.
The input offset current is 200 nA, which is relevant for precision applications.
It is part of the NJM4558 series, designed for various analog circuits.
The country of origin for this operational amplifier is India.
