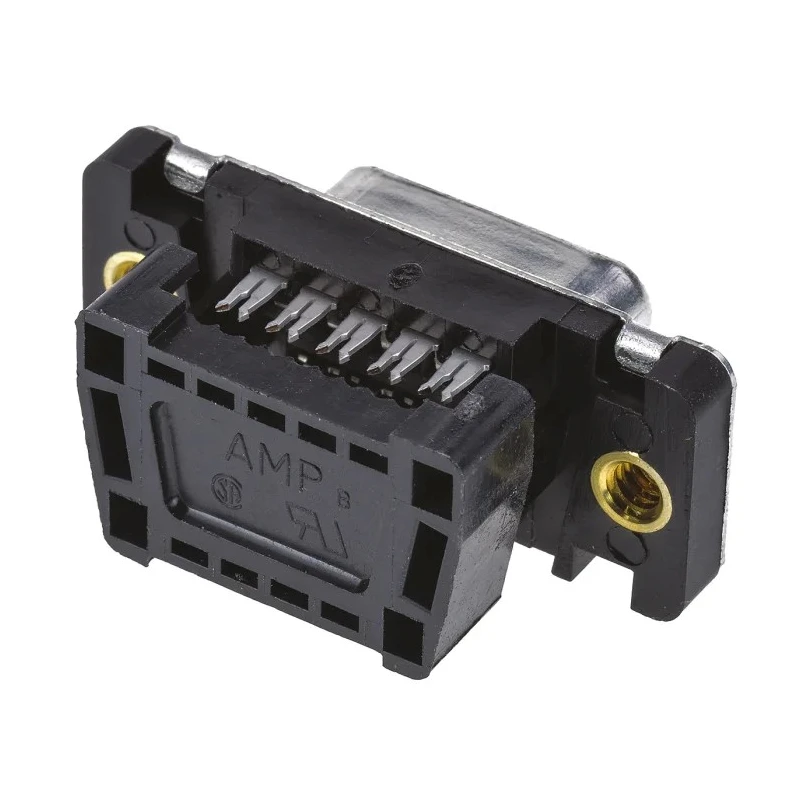

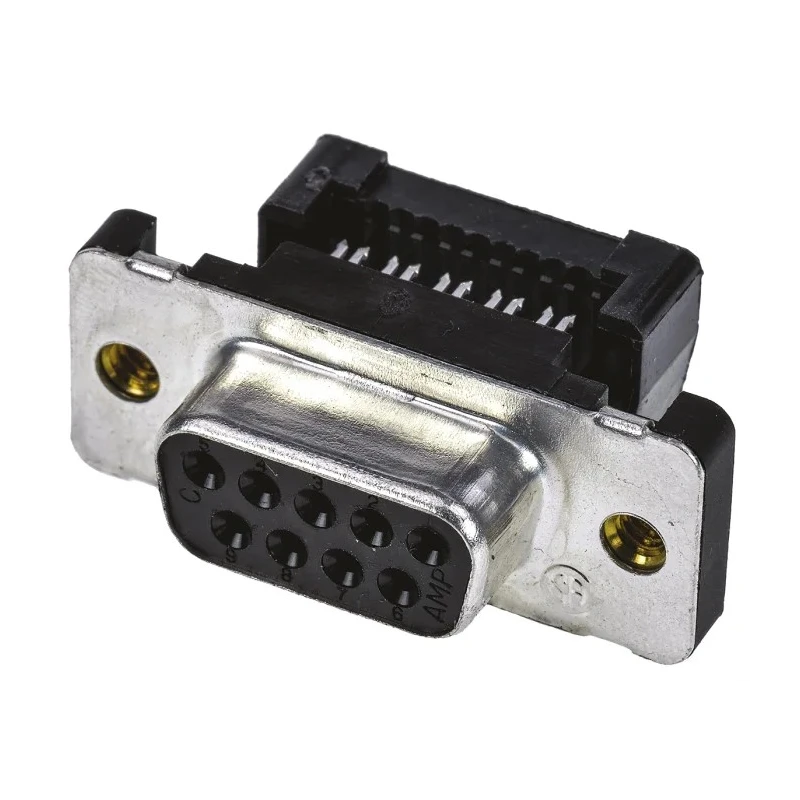

TE Connectivity Amplimite HDF-20 9 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Female 1658610-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 mm |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DS-1 |
Key Features
- Features 9 contacts with phosphor bronze material plated with gold over nickel for superior conductivity.
- Rated for 1.25 A current and 250 V voltage suitable for signal transmission.
- Right angle orientation with cable mount type ensures compact installation in assemblies.
- Housing made of steel for robust mechanical protection and durability.
- Operates reliably under temperatures from -55°C to 105°C.
- Termination type is insulation displacement contact (IDC) which eases flat ribbon cable connection.
- Part of the Amplimite HDF-20 series with 20 mm contact size and DS-1 shell size.
- Compatible with HD-20 board mount, HDP, and HDE D-sub connectors sizes 1 to 4.
Product Description
TE Connectivity 1658610-4 Amplimite HDF-20 9 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Female features a low profile metal shell design optimized for flat ribbon cable connections. This D-Sub Connector offers 9 contacts made of duplex plated phosphor bronze with gold over nickel plating, ensuring reliable electrical performance at 1.25A current and 250V voltage rating.
The connector employs insulation displacement contact (IDC) termination, allowing quick, reliable termination of 28 AWG and 26 AWG solid or stranded round conductor flat ribbon cable with 1.27 mm centers. Its right angle cable mount configuration supports compact PCB or panel integration.
Constructed with a steel housing and a tin plated steel front shell, it provides strong mechanical protection and EMI shielding. The temperature rating ranges from -55°C to 105°C, making it suitable for demanding industrial environments.
This product belongs to the Amplimite HDF-20 series, featuring a 20 mm contact size and DS-1 shell size. It mates with compatible HD-20 board mount, HDP, and HDE connectors (sizes 1 to 4). Optional strain relief and screwlock accessories are available for enhanced durability and secure fastening.
9 contacts with phosphor bronze material and gold over nickel plating. Right angle orientation with cable mount type. Steel housing and tin plated steel front shell for durability and EMI protection. Voltage rating of 250V and current rating of 1.25A for reliable signal and power transmission.
Operating temperature range from -55°C to 105°C. Insulation displacement contact termination for flat ribbon cable compatibility. Compatible with HD-20 board mount, HDP, and HDE connectors sizes 1-4. Low profile black metal body with pre-assembled thermoplastic housing rated 94V-0.
These connectors are widely used in electronic component, power connector, and cable assembly industries, including applications in industrial control, instrumentation, telecommunications, and manufacturing.
Explore a wide range of power and electronic connectors on EnvMart for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector is rated for a voltage of 250V and a current of 1.25A, making it suitable for reliable signal transmission.
The housing is made of steel, while the contacts are made of phosphor bronze with gold over nickel plating for enhanced conductivity.
It operates reliably within a temperature range of -55°C to 105°C, suitable for demanding industrial environments.
This connector features 9 contacts, designed for efficient signal transmission.
It employs insulation displacement contact (IDC) termination, facilitating easy connection with flat ribbon cables.
The pitch size of the contacts is 2.76 mm, allowing for compact arrangements in assemblies.
Yes, it is compatible with HD-20 board mount, HDP, and HDE connectors of sizes 1 to 4.
This model features a right angle orientation, which supports compact installation in various assemblies.
The contact size for this connector is 20 mm, which is standard for the Amplimite HDF-20 series.
It is suitable for 28 AWG and 26 AWG solid or stranded round conductor flat ribbon cables with 1.27 mm centers.
Optional strain relief and screwlock accessories are available to enhance durability and secure fastening during installation.
This connector is manufactured in India, ensuring compliance with various industrial standards.
