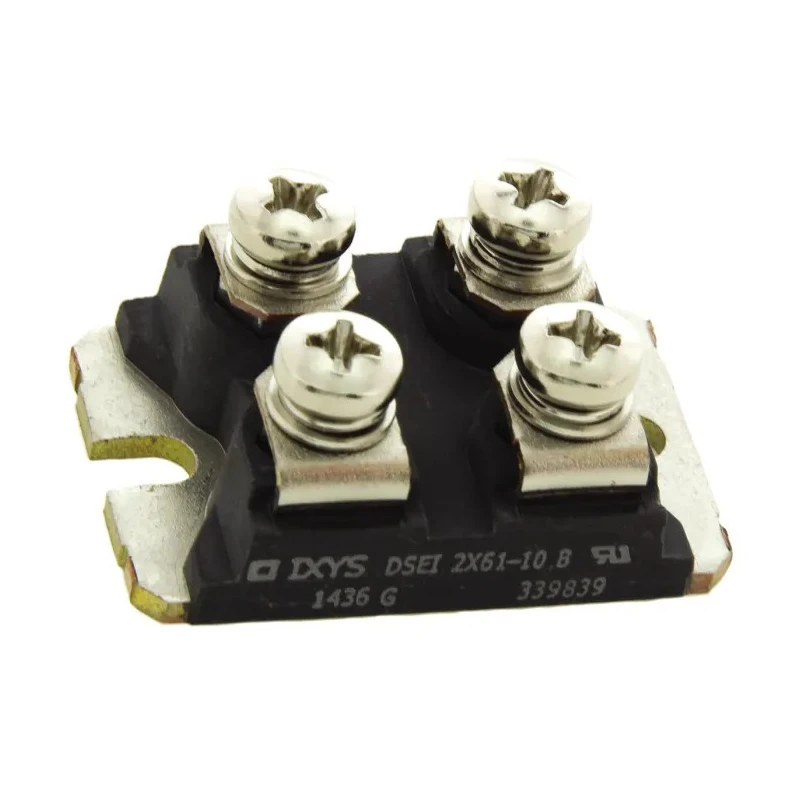

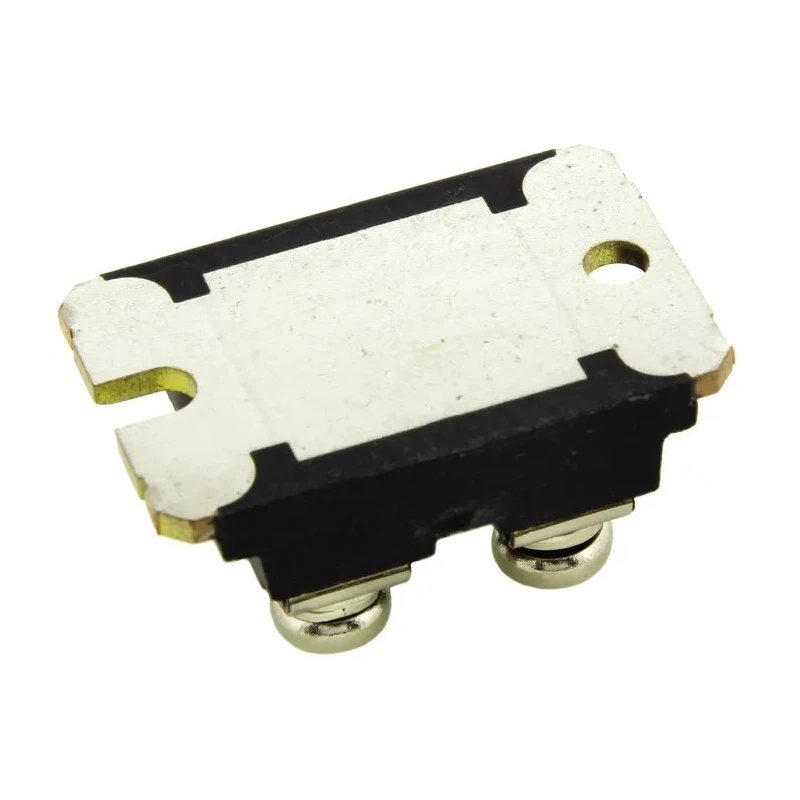

IXYS Diode Switching 4-Pin SOT-227 1 kV 60 A Panel Mount DSEI2X61-10B

IXYS DSEI2X61-10B is a high-quality switching diode designed for industrial and electronic power applications. Rated for a maximum continuous forward current of 60 amperes and a peak reverse repetitive voltage of 1 kilovolt, this diode is engineered to ensure efficient and reliable rectification in demanding environments.

Featuring a 4-pin SOT-227 package and panel mount design, it offers versatility along with ease of installation. The diode’s isolated configuration and fast switching capabilities make it ideal for power supply circuits, inverters, and other high-performance electronic equipment.

With a low peak reverse current of 3 milliamperes and a maximum forward voltage drop of 2.3 volts, the DSEI2X61-10B minimizes power losses to increase overall system efficiency. Its peak non-repetitive forward surge current of 540 amperes ensures robustness during transient spikes, while the peak reverse recovery time of 50 nanoseconds supports high-frequency switching applications.

The operating temperature range from -40°C to 150°C allows the diode to perform reliably in industrial, commercial, and HVAC electronics. Compact physical dimensions (47 mm length, 30.3 mm width, and 9 mm height) help conserve PCB space without sacrificing durability.

Maximum continuous forward current of 60 amperes for robust power handling. Peak reverse repetitive voltage rating of 1 kilovolt ensures voltage endurance. Switching rectifier type diode suitable for fast switching applications.

Wide operating temperature range from -40°C to 150°C for reliability in harsh environments. Low peak reverse current of 3 milliamperes reduces leakage losses. Peak non-repetitive forward surge current capability of 540 amperes for transient protection.

Maximum forward voltage of 2.3 volts minimizes conduction losses. Fast peak reverse recovery time of 50 nanoseconds for high-frequency switching. Compact dimensions with 47 mm length, 30.3 mm width, and 9 mm height. Panel mountable with SOT-227 package for easy installation.

This diode is suitable for use in diverse industrial systems such as power supply manufacturing, electronics prototyping, and commercial equipment. It complies with no particular standards or automotive certifications but meets high durability and functional performance needs.
