JAE IL-AG5 Series Straight Through Hole 14 Contact PCB Header 2 Row 2.5mm Pitch Shrouded IL-AG5-14P-D3T2-A

Free Delivery in India | Lowest Global Shipping Charges

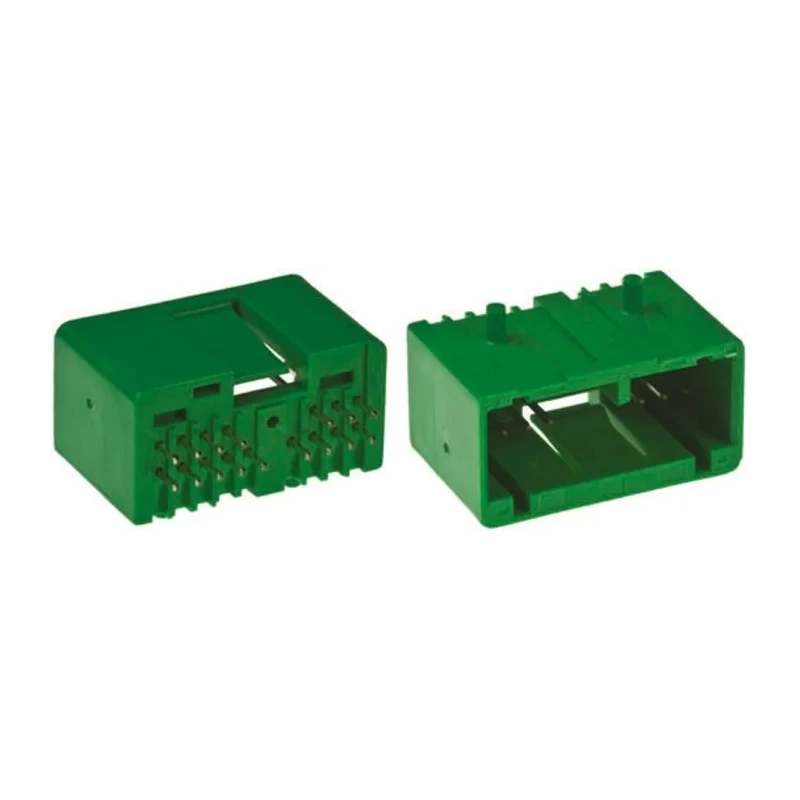

JAE IL-AG5 Series Straight Through Hole 14 Contact PCB Header 2 Row 2.5mm Pitch Shrouded IL-AG5-14P-D3T2-A



Category PCB Header Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Straight
Current	3A
Model	IL-AG5-14P-D3T2-A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	IL-AG5
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.5mm
Contact Plating	Tin
Number of Contacts	14
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features 14 male brass contacts with tin plating for corrosion resistance.
Designed for wire-to-board connection with through-hole mount.
Housing made of robust polybutylene terephthalate for durability.
Operates reliably from -40°C to 85°C temperature range.
Shrouded design prevents mismating and offers mechanical locking.
Standard 2.5 mm pitch and 2-row configuration for automotive and industrial PCB applications.
Solder termination type suitable for PCB mounting.
Current rated at 3 amperes per contact.

Product Description

JAE IL-AG5-14P-D3T2-A is a high-reliability straight through hole PCB header designed to meet demanding automotive and industrial electrical connection needs. This 14-contact connector is arranged in 2 rows with a 2.5 mm pitch providing compact and secure wire-to-board interfacing. The header's housing is made from durable polybutylene terephthalate which withstands operating temperatures from -40°C to 85°C, ensuring stable performance in harsh environments.

The contacts are male and constructed of brass with tin plating to resist corrosion and deliver consistent electrical conductivity. The shrouded design along with a double lock mechanism assures positive mating and prevents contact dislodging, vital in vibration-prone automotive panels and industrial equipment.

Mount type is through hole suitable for standard PCB soldering processes with solder termination types. Current rating is 3A per contact, supporting moderate power applications.

This connector series is specifically engineered for automotive instrument panel applications although it is also widely applicable across industrial, manufacturing, and commercial electronic assemblies requiring dependable PCB interconnections.

With its mechanical locking features, shrouded housing, and precision in contact pitch and configuration, the IL-AG5 series offers secure, long-lasting connectivity solutions for engineers and PCB assemblers.

Features 14 male brass contacts with tin plating for corrosion resistance. Designed for wire-to-board connection with through-hole mount. Housing made of robust polybutylene terephthalate for durability. Operates reliably from -40°C to 85°C temperature range.

Shrouded design prevents mismating and offers mechanical locking. Standard 2.5 mm pitch and 2-row configuration for automotive and industrial PCB applications. Solder termination type suitable for PCB mounting. Current rated at 3 amperes per contact.

Ideal for automotive instrument panel and related electrical connector applications. Explore more PCB Headers connectors on EnvMart to find complementary products and advanced interconnection solutions.
