onsemi 5V Linear Voltage Regulator Surface Mount 3-Pin 35V MC7805BDTG

Free Delivery in India | Lowest Global Shipping Charges

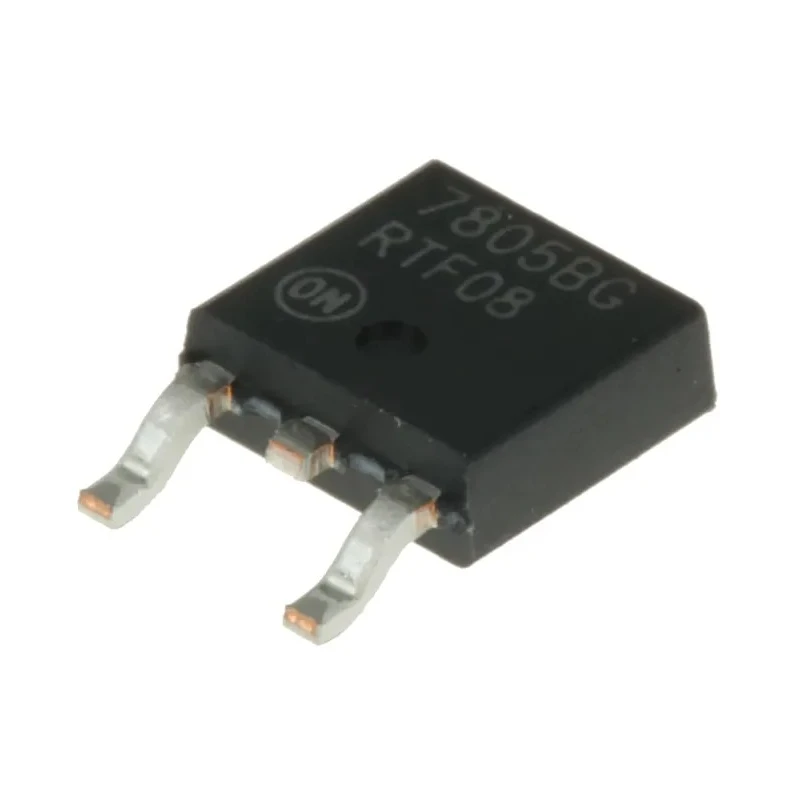

onsemi 5V Linear Voltage Regulator Surface Mount 3-Pin 35V MC7805BDTG

Name: onsemi 5V Linear Voltage Regulator Surface Mount 3-Pin 35V MC7805BDTG
Brand: onsemi
SKU: 212456
Price: 0.58 USD
Availability: InStock



Category Voltage Regulator Brand onsemi Condition New

Specifications

Country of Origin	India
Voltage	Regulators onsemi, Voltage Regulator 35V 3-Pin RS Stock No
Brand	onsemi
Height	2.38mm
Length	6.73mm
Model	MC7805BDTG
Width	6.22mm
Mount Type	Surface
Series	MC78xx
Maximum Operating Temperature	125°C
Polarity	Positive
Maximum Input Voltage	35V
Quiescent Current	3.2mA
Minimum Input Voltage	5V
Pin Count	3
Automotive Standard	AEC-Q100

Key Features

Operates with a minimum input voltage of 5V providing a stable 5V output voltage.
Designed for mounting on surface with a compact 3-pin package.
Features a quiescent current of 3.2mA for efficient power consumption.
Supports a maximum operating temperature up to 125°C ensuring reliable performance in demanding environments.
Includes internal thermal overload protection and current limiting for safety.
Complies with automotive standard AEC-Q100 for enhanced reliability in automotive applications.
Part of the MC78xx series known for fixed-voltage linear regulation.

Product Description

The onsemi MC7805BDTG is a 5V linear voltage regulator from the MC7805 family designed for surface mount applications with a 3-pin positive polarity configuration. It supports a wide input voltage range from 5V to a maximum of 35V, providing a stable 5V regulated output suited for various electronic circuits and power management tasks.

This integrated circuit incorporates internal protections including thermal overload and current limiting, enhancing the safety and durability of the device during operation under different load conditions. Its compact dimensions (6.73mm length, 6.22mm width, and 2.38mm height) enable efficient use of PCB space, making it suitable for constrained layouts.

The device has a low quiescent current of 3.2mA, contributing to its efficiency by minimizing power loss in standby mode. With a maximum operating temperature of 125°C and compliance with the AEC-Q100 automotive standard, the MC7805BDTG is reliable for industrial, automotive, and consumer electronics applications requiring fixed 5V regulation.

It is ideal for local, on-card voltage regulation in embedded systems and electronic devices. Its robust design eliminates the need for external components, simplifying circuit design and assembly.

Operates with input voltage range from 5V to 35V. Surface mount package optimized for compact designs. Internal thermal and current protections for safety. Low quiescent current reduces power consumption. Meets automotive quality standards (AEC-Q100).

Compact footprint with 3-pin configuration. Suitable for industrial, automotive, and consumer electronics. Part of the trusted MC78xx regulator series by onsemi.

This product is categorized under Voltage Regulators within the Power Management ICs segment, ideal for applications in Electronics & Electricals sectors, including industrial controls, automotive power systems, and embedded electronics.

Discover a wide range of voltage regulation solutions and power management ICs at EnvMart for your specialized electronics requirements.
