TDK 100 nF Multilayer Ceramic Capacitor 100V dc ±20 % Surface Mount CGA3E3X7S2A104M080AB

Free Delivery in India | Lowest Global Shipping Charges

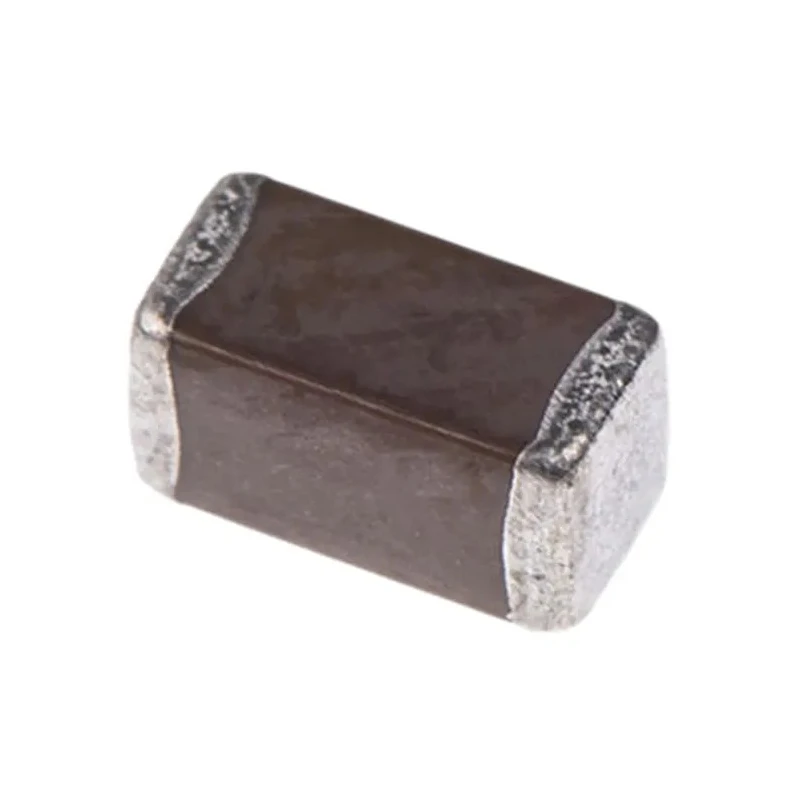

TDK 100 nF Multilayer Ceramic Capacitor 100V dc ±20 % Surface Mount CGA3E3X7S2A104M080AB



Category Multilayer Ceramic Capacitors Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	CGA3E3X7S2A104M080AB
Packaging	Tape & Reel
Width	0.8mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±20 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Package/Case	0603
Dielectric	X7S
Automotive Standard	AEC-Q200

Key Features

Constructed with X7S dielectric for stable electrical performance.
Package size 0603 with 1.6mm length and 0.8mm width and height.
Fully compliant with AEC-Q200 automotive standard for reliability.
Rated to operate between -55°C and 125°C temperature extremes.
Features low equivalent series resistance (ESR) and excellent frequency characteristics.
Packaged in tape and reel for automated assembly efficiency.
Designed for automotive engine control units and sensor module applications.
Suitable for battery line smoothing and switching power supply smoothing.

Product Description

TDK CGA3E3X7S2A104M080AB is a 100 nF multilayer ceramic capacitor designed for high reliability automotive and industrial applications. It features a 100V dc voltage rating and ±20 % capacitance tolerance, making it suitable for precise electronic circuit stabilization and noise reduction.

This capacitor utilizes the X7S ceramic dielectric, offering stable temperature performance over a wide operating range from -55°C to 125°C. Its compact 0603 package measures 1.6mm in length, 0.8mm in width, and 0.8mm in height, optimized for high-density surface mounting.

The CGA series meets the stringent AEC-Q200 automotive standard, ensuring durability and reliability in critical automotive control units, sensor modules, and battery line smoothing applications. Low equivalent series resistance (ESR) and excellent frequency characteristics allow for optimized circuit performance and low self-heating under ripple conditions.

These capacitors are supplied in tape and reel packaging, facilitating efficient automated assembly in production environments. Use cases include automotive engine control units, automotive sensor modules, switching power supply smoothing, and other applications requiring high-reliability multilayer ceramic capacitors.

Constructed with X7S dielectric for stable electrical performance. Compact 0603 surface mount package dimensions. Complies with AEC-Q200 automotive reliability standards. Wide operating temperature range of -55°C to 125°C.

Low ESR and favorable frequency characteristics. Supplied in tape and reel packaging for automated insertion. Ideal for automotive and industrial electronic applications. Designed for switching power supplies and battery line smoothing.
