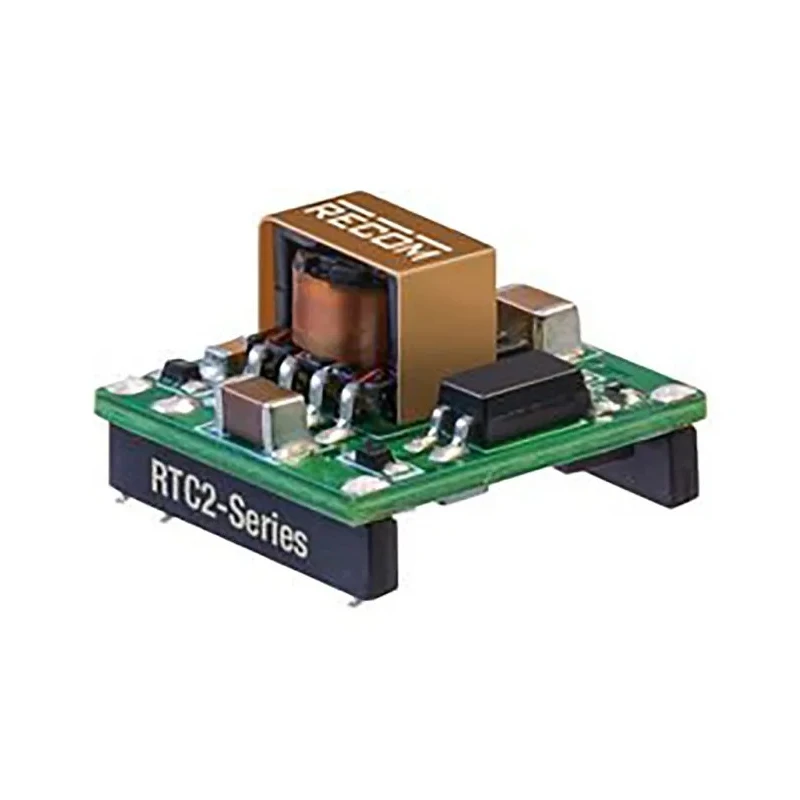

Recom RTC2 DC/DC Converter 5V dc 400 mA 36V dc Input 18V Input 2W Surface Mount

Free Delivery in India | Lowest Global Shipping Charges

Recom RTC2 DC/DC Converter 5V dc 400 mA 36V dc Input 18V Input 2W Surface Mount

Name: Recom RTC2 DC/DC Converter 5V dc 400 mA 36V dc Input 18V Input 2W Surface Mount
Brand: Recom
SKU: 209002
Price: 633.29 USD
Availability: InStock



Category DC/DC Converter Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Voltage	Converters / DC-DC Converters Recom RTC2 DC/DC Converter, 5V dc/ 400 mA, 36V dc
Brand	Recom
Efficiency	80%
Length	14.99mm
Model	RTC2
Depth	9.6mm
Width	14.22mm
Mount Type	Surface
Series	RTC2
Maximum Operating Temperature	100°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
MTBF	2145000h
Number of outputs	1
Maximum Output Power	2W
Maximum Input Voltage	36V dc
Minimum Input Voltage	18V
Output Voltage 1	5V dc
Output Current 1	400mA
Isolation Voltage	3kV dc
Input Ratio	2:1
Input Ratio2	1
The RTC2 is a 2 W, open-frame, SMD, isolated DC-DC converter with 2	1 input voltage range. It is

Key Features

Provides a regulated 5V output voltage suitable for sensitive electronics.
Supports input voltage range from 18V up to 36V DC for flexibility.
Compact surface mount design enables space-saving PCB integration.
High efficiency of 80% ensures low power loss during operation.
Works reliably in temperatures from -40°C to 100°C with derating.
Offers 3kV DC isolation voltage for enhanced safety and noise reduction.
Includes continuous short circuit protection for device safety.
Single output design suitable for various industrial and electronic applications.

Product Description

Recom RTC2-2405SRW is a highly reliable 2 W isolated DC/DC converter designed for applications requiring a stable 5V output at 400 mA. It supports a wide input voltage range of 18V to 36V DC accommodating both 24V and 36V input systems. Its compact surface mount package measures 14.99 mm in length, 14.22 mm in width, and 9.6 mm in depth, making it suitable for modern electronic circuit boards where space is limited.

The converter features a robust isolation voltage of 3 kV DC, ensuring protection against voltage spikes and reducing electrical noise. With an efficiency rating of 80%, it minimizes heat generation and power loss, enhancing overall system reliability. It operates over a wide temperature range from -40°C to 100°C (with derating), making it suitable for harsh industrial environments.

Designed for continuous short circuit protection and tight output voltage regulation with ripple under 50 mV, this converter supports sensitive applications demanding stable power. The device complies with IEC/EN62368-1 safety standards and is RoHS-compliant. Its single output and 2:1 input ratio design provide versatile use in industrial automation, telecommunications, measurement instruments, and power management scenarios.

Regulated 5V DC output at 400 mA continuous current. Wide input voltage range from 18V to 36V DC. Compact surface mount package with dimensions 14.99 x 14.22 x 9.6 mm. High isolation voltage rating of 3 kV DC for electrical safety.

Operating temperature range from -40°C to 100°C (with derating). Efficiency of 80% ensures energy-efficient operation. Continuous short circuit protection for enhanced reliability. Conforms to IEC/EN62368-1 safety standards and RoHS compliance.

Ideal for industrial, laboratory, and electronic power supply applications.

This DC/DC converter is a part of Recom's RTC2 series, widely trusted for powering sensitive electronic equipment where compactness, efficiency, and reliability are critical. It is suitable for design integration in industrial tools, electronic control systems, and power supply modules requiring a 5V regulated source from higher DC voltages.
