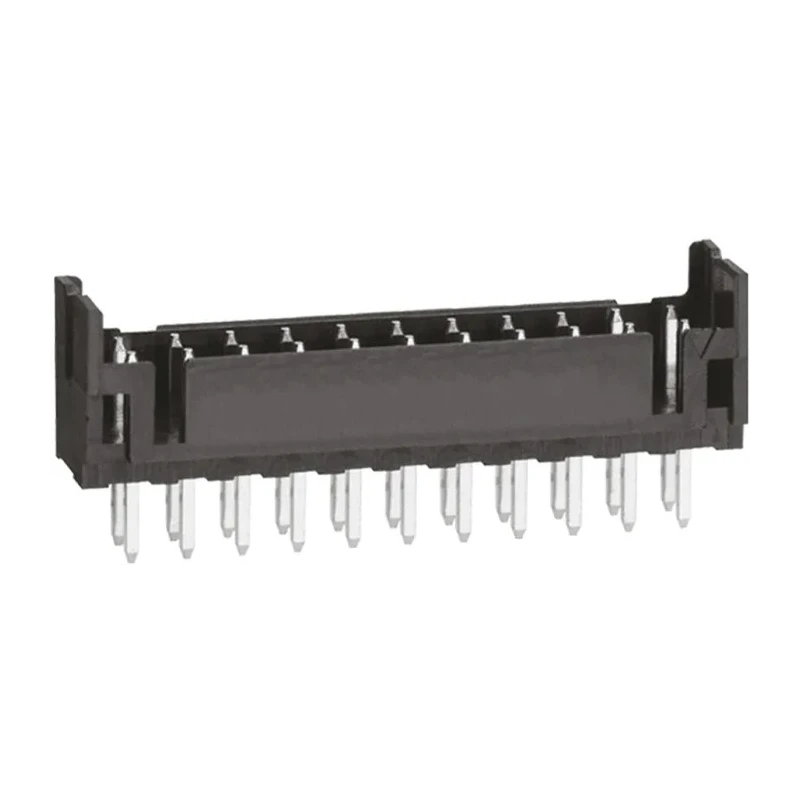

Hirose DF11 Series Straight Through Hole PCB Header 22 Contacts 2 mm Pitch 2 Rows Shrouded DF11

Hirose DF11 Series Straight Through Hole PCB Header DF11 provides a high-density, double row connector solution with 22 male contacts at 2 mm pitch and a compact depth under 5 mm for efficient PCB layout. The connector is shrouded with a robust four-wall design and includes guide ribs to prevent incorrect insertion and mechanical twisting during mating. A locking mechanism further stabilizes the connection between header and connector housing ensuring reliable, long-term use.

The connector features polyamide housing with tin-plated copper alloy contacts, designed for through-hole mounting compatible with both board-to-board and wire-to-board systems. It supports electrical ratings up to 2A current and 250V operating voltage, making it suitable for signal and low-power applications in diverse industrial and consumer electronics.

Operating temperature ranges from -30°C to 85°C ensuring durability in various ambient conditions. The header's compact size and double row arrangement enable space-saving PCB designs, essential in portable devices such as digital cameras, LCD displays, digital video recorders, car navigation units, and measurement instruments.

Its shrouded design with guide ribs significantly reduces user errors by preventing mismating, while the locking mechanism secures mating connectors firmly. This combination enhances reliability in industrial, commercial, and laboratory electronics environments where signal integrity and mechanical stability are critical.

Compact double row design saves PCB space with 5 mm depth. Shrouded housing with guide ribs prevents mismating and twisting. Locking mechanism ensures secure connection with connector housing. Made with polyamide housing and tin-plated copper alloy contacts.

Through hole mount suitable for board-to-board and wire-to-board connections. Operates reliably from -30°C to 85°C in various environments. Supports maximum 2A current and 250V voltage for signal integrity. Ideal for portable electronic devices and instrumentation requiring multiple signals.

This Hirose DF11 Series PCB Header connector matches with DF11 series housings and sockets to provide flexible wiring solutions. It is suited for applications in industrial electronics manufacturing, laboratory instrumentation, consumer electronic devices, and automotive electronics assembly.
