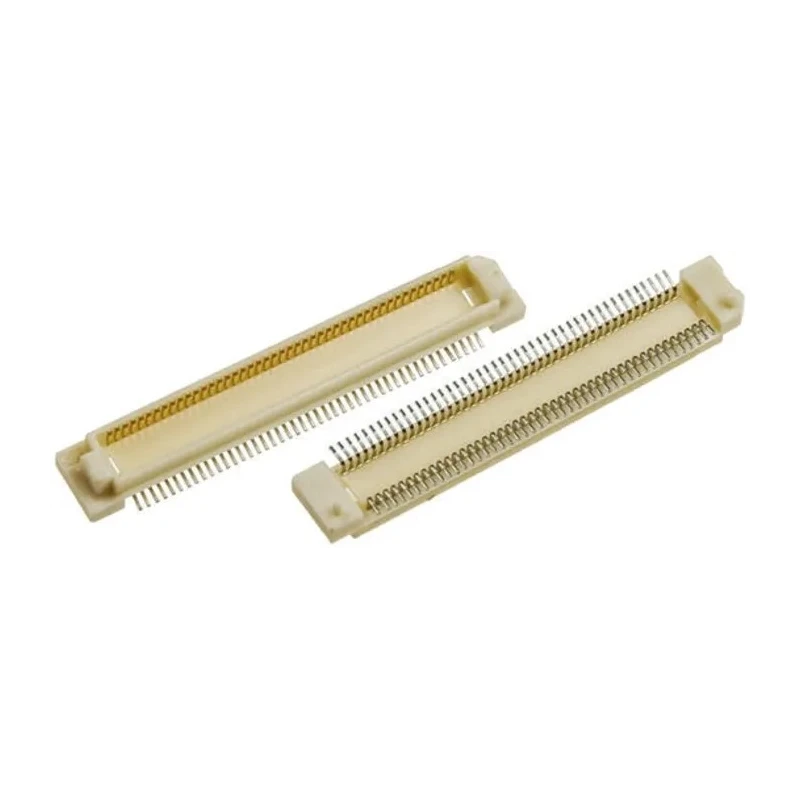

Hirose FunctionMAX FX8 Series Straight Surface PCB Header, 80 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8-80P-SV(91)

Hirose FX8-80P-SV(91) FunctionMAX FX8 Series Straight Surface PCB Header is a high-performance connector designed for electronic applications requiring board-to-board connections. This shrouded header features 80 male contacts arranged in two rows with a fine 0.6 mm pitch, providing compact and reliable interfacing for high-density electronic assemblies.

The polyphenylene sulphide housing enhances thermal stability and mechanical robustness, making it suitable for demanding industrial and commercial environments. Phosphor bronze contacts with gold plating assure excellent electrical conductivity and corrosion resistance. The connector supports a current rating of 400mA and can operate over a temperature range from -55°C up to 85°C, ensuring dependable performance in various conditions.

FunctionMAX FX8 connectors enable high-speed data transmission up to 3.125 Gbit/s with superior signal integrity. Their built-in mating guide ribs deliver a self-alignment tolerance of ±0.6 mm, facilitating easier and secure mating. The male contacts utilize an optimized spring deflection design, offering enhanced reliability and extended lifecycle.

The surface mount type connector is ideal for industrial equipment, servers, broadcast devices, medical instruments, and POS terminals requiring robust and compact board-to-board connection solutions. Note that FX8 and FX8C series connectors are not compatible for mating with each other.

Current rating of 400mA suitable for low power electronic connections. Housing is made of polyphenylene sulphide for durability. Gold-plated phosphor bronze contacts improve conductivity and corrosion resistance. Operating temperature range is from -55°C to 85°C.

Surface mount type for efficient PCB assembly. High-speed transmission capability up to 3.125 Gbit/s. Built-in guide ribs allow ±0.6 mm alignment tolerance for easier mating. Spring deflection contact design enhances reliability and lifespan.

This Hirose PCB Header is engineered to meet industrial and commercial electronics standards, offering reliable performance in applications requiring compact, high-density board-to-board connectors. It is part of the FunctionMAX range, known for advanced design and electrical characteristics.
