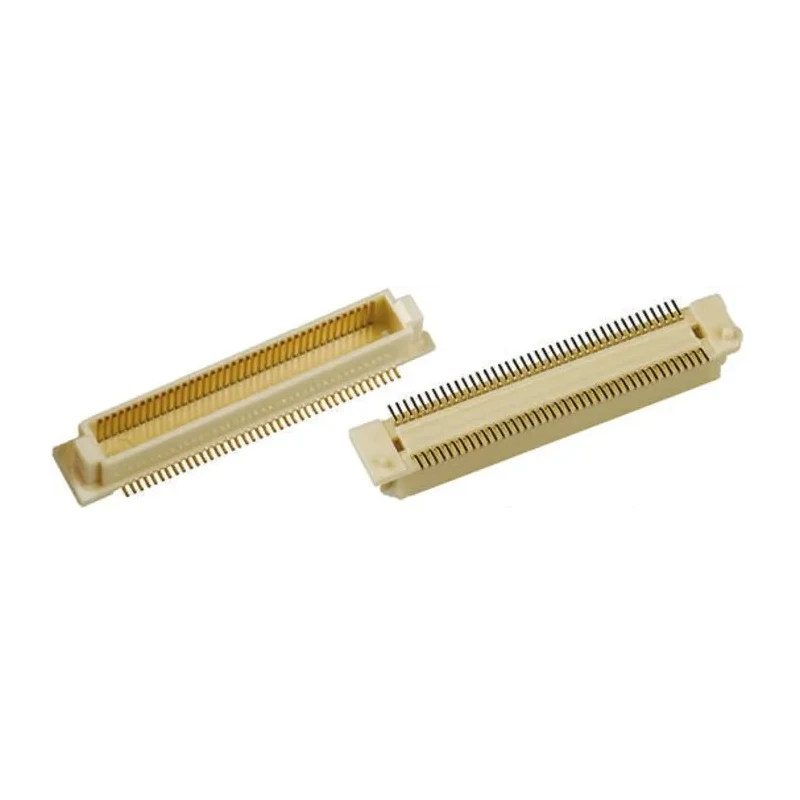

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 100 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C

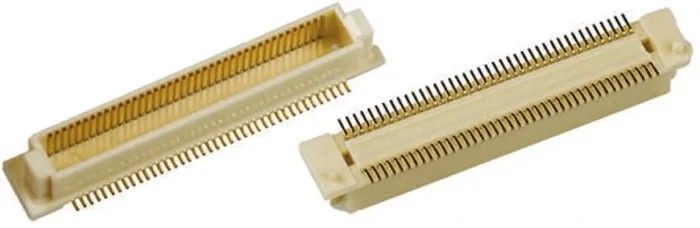

Hirose FX8C Series Straight Surface PCB Header (Model: FX8C) features 100 gold-plated phosphor bronze contacts with a 0.6 mm pitch arranged in 2 rows. This shrouded male connector uses a polyphenylene sulphide housing and is designed for surface mount technology (SMT), providing excellent durability and signal integrity in electronic assemblies.

The FunctionMAX FX8C connectors support current ratings up to 400mA and voltage up to 100V, suitable for demanding electronics applications. Its operational temperature ranges from -55°C to 85°C, making it ideal for harsh environmental conditions.

FunctionMAX FX8C connectors offer high-speed data transmission up to 3.125 Gbit/s, featuring built-in mating guide ribs that allow self-alignment tolerance of plus or minus 0.6 mm to facilitate easy mating and enhanced design flexibility. The connectors are equipped with guide posts to aid PCB alignment and prevent misinsertion, with a spring deflection design in contacts ensuring enhanced reliability and electrical continuity with a 2 mm wiping distance.

Typical applications for this PCB header include servers, broadcast equipment, industrial machines, medical devices, and point-of-sale terminals where dependable board-to-board connections are essential.

As a premium product manufactured in Japan, this Hirose FunctionMAX connector combines excellent mechanical and electrical performance for industrial and commercial use in electronics manufacturing and maintenance.

Supports current up to 400mA ensuring stable power transmission. High durability polyphenylene sulphide housing construction. Gold plated phosphor bronze contacts for superior conductivity. Shrouded, straight male connector configuration with 2 rows.

Operating temperature range of -55°C to 85°C. Surface mount type for compact PCB assembly. High-speed data transmission capability of 3.125 Gbit/s. Built-in guide ribs provide self-alignment tolerance of +/- 0.6 mm. Guide posts prevent misinsertion and aid PCB alignment.

Spring deflection contact design for reliability and 2 mm wiping distance. Ideal for servers, industrial, medical, and POS terminal applications. Explore the extensive range of PCB connectors at EnvMart designed to meet diverse industrial and technical challenges with high-quality standards and innovative technologies.
