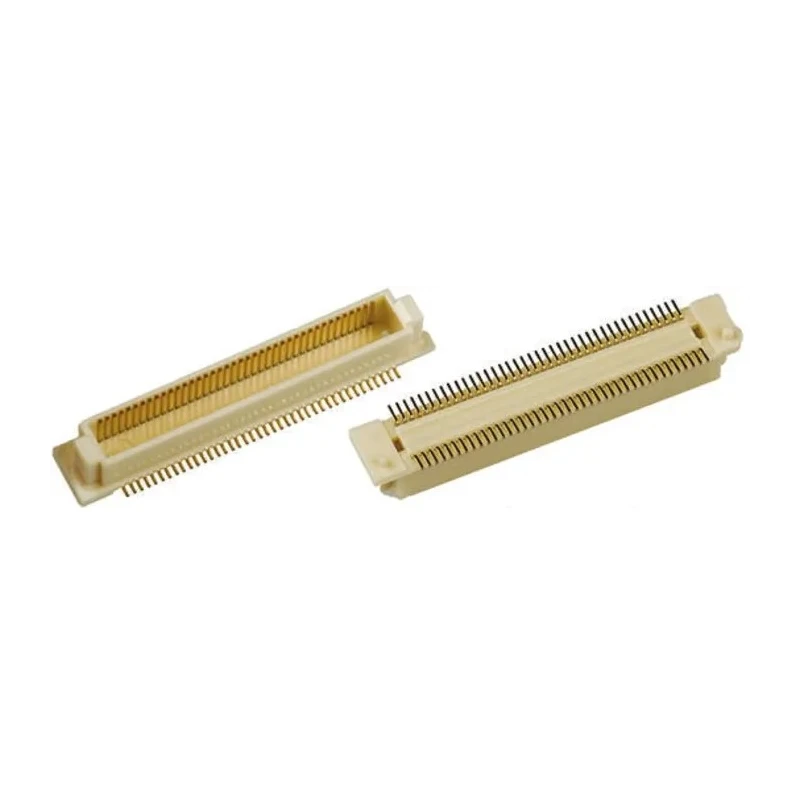

Hirose FunctionMAX FX8C Series Straight Surface PCB Header, 100 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C

Hirose FX8C Series Straight Surface PCB Header FX8C is a high-density, high-speed board-to-board connector designed with 100 male contacts arranged in two rows with a compact 0.6 mm pitch. Featuring a shrouded housing made from durable polyphenylene sulphide, this connector offers excellent mechanical protection while ensuring reliable solder termination with surface mount technology.

The FunctionMAX FX8C series supports a current rating of 400mA and a voltage rating of 100V, suitable for diverse industrial and electronic applications that demand high signal integrity and reliability in compact form factors. It operates efficiently under extreme temperatures from -55°C up to 85°C.

Its contacts are crafted from phosphor bronze and plated with gold, delivering superior conductivity and corrosion resistance. The connector includes built-in guide ribs that allow a ±0.6 mm misalignment tolerance for easy mating and improved assembly yield. Precision design features like SMT coplanarity with solder tolerance less than 0.1 mm and spring deflection contact design optimize electrical continuity and mechanical durability.

The FX8C series connectors provide transmission speeds up to 3.125 Gbit/s, making them ideal for high-speed signal transmission applications such as servers, broadcast equipment, industrial devices, medical instruments, and POS terminals. The dual row shrouded headers facilitate compact stacking heights ranging from 5 mm to 16 mm, offering flexible board stacking solutions.

0.6 mm pitch with 2 row contact arrangement for high-density board connections. Shrouded housing for increased mechanical protection and durability. Polyphenylene sulphide housing material ensuring thermal and chemical resistance.

Phosphor bronze contacts with gold plating for excellent electrical performance. Supports 400mA current and 100V voltage ratings. Wide operating temperature range from -55°C to 85°C for robust performance. Built-in guide ribs allow ±0.6 mm self-alignment for easy and reliable mating.

High-speed data transmission capability up to 3.125 Gbit/s with excellent signal integrity. Ideal for industrial, medical, broadcast, and POS terminal applications. Board-to-board surface mount connectors with SMT coplanarity tolerance under 0.1 mm.

Hirose's FunctionMAX FX8C series connectors exemplify durability, performance, and precision engineered for evolving industrial and electronic system demands. Explore more PCB connectors and electronic components at EnvMart for your manufacturing and design needs.
