Hirose FunctionMAX FX8C Series Straight Surface PCB Header with 120 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8C

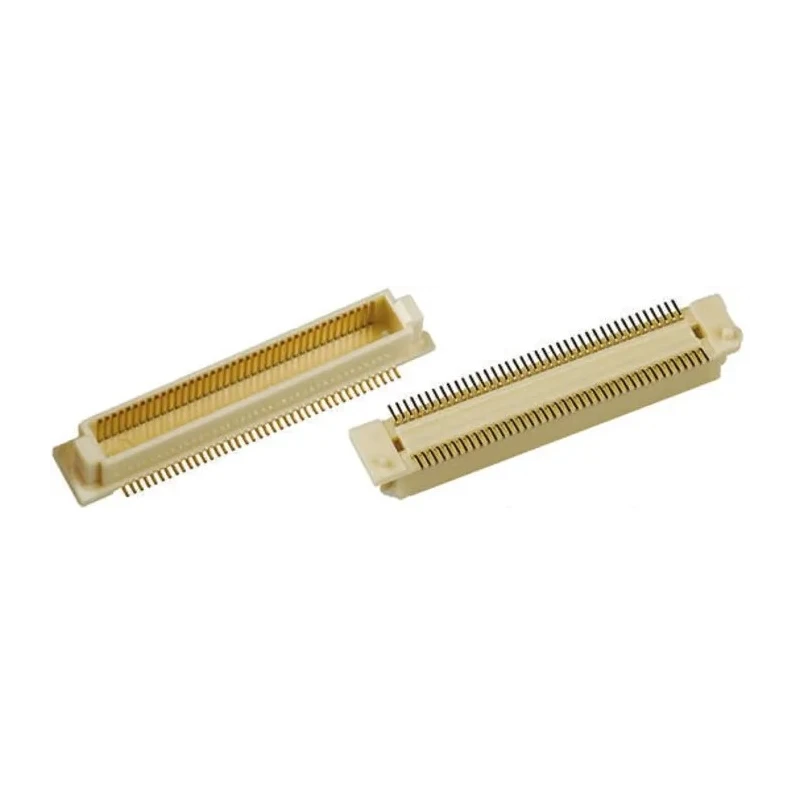

Hirose FX8C Series Straight Surface PCB Header FX8C is a robust board-to-board connector designed for industrial and commercial electronic equipment requiring high-speed data transmission with excellent signal integrity. Featuring 120 male contacts with a fine 0.6 mm pitch in a two-row, shrouded configuration, this surface mount PCB header facilitates reliable electrical connections on compact boards.

Constructed using polyphenylene sulphide housing and phosphor bronze contacts plated with gold, it ensures durability and superior conductivity. The connector sustains a current rating of 400 mA and voltage rating of up to 100 V, operating effectively within -55°C to 85°C.

The design incorporates built-in guide ribs allowing self-alignment with a tolerance of ±0.6 mm during mating, simplifying assembly and reducing insertion errors. Spring deflection contacts enhance contact reliability by compensating for mechanical tolerances.

FX8C Series headers support surface mount technology with an SMT coplanarity tolerance of less than 0.1 mm at the solder area. The series offers a stacking height range from 5 mm to 16 mm, providing design flexibility for varying board heights.

This connector is widely used in servers, broadcast equipment, industrial devices, medical instruments, and point-of-sale terminals where high-speed parallel board-to-board connections are critical.

120 gold-plated phosphor bronze male contacts ensure reliable conductivity. 0.6 mm pitch with a 2-row shrouded, straight design. Operating temperature range: -55°C to 85°C. Current: 400 mA; Voltage: 100 V. Supports high-speed transmission rates up to 3.125 Gbit/s.

Built-in mating guide ribs allow +/- 0.6 mm self-alignment tolerance. Surface mount technology with SMT coplanarity tolerance below 0.1 mm. Wide stacking height range of 5 mm to 16 mm. Optimized spring deflection contact design for enhanced reliability.

Applicable for industrial, medical, broadcast, and POS terminal equipment. Explore the Hirose FunctionMAX FX8C Series for advanced PCB Header solutions and find more connectors and components in the Electronics & Electricals category on EnvMart.
