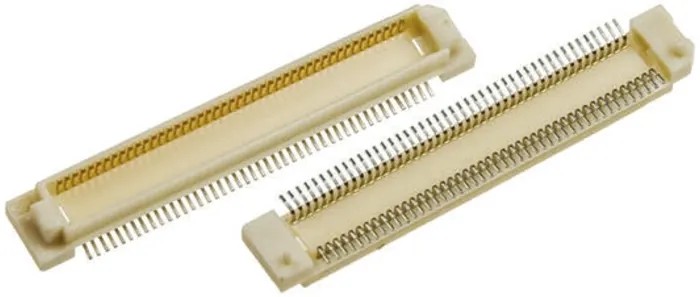

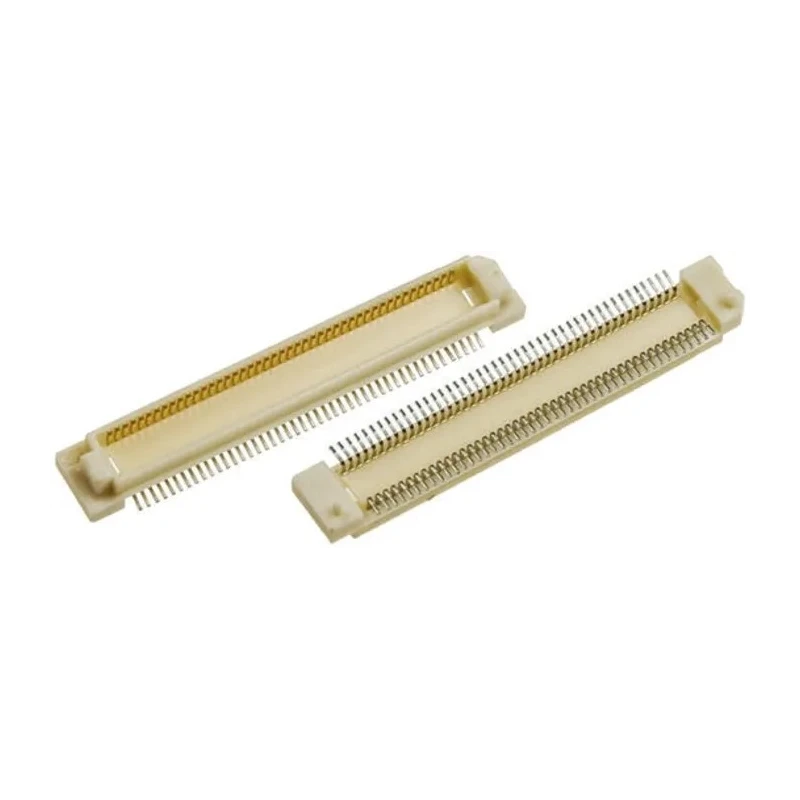

Hirose FunctionMAX FX8 Series Straight Surface PCB Header, 100 Contact(s), 0.6 mm Pitch, 2 Row, Shrouded FX8-100P-SV1(91)
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 100V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 400mA |
| Model | FX8-100P-SV1(91) |
| Mount Type | Surface |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Phosphor Bronze |
| Series | FunctionMAX FX8 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 0.6mm |
| Contact Plating | Gold |
| Number of Contacts | 100 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Supports a maximum current of 400mA per contact.
- Constructed with polyphenylene sulphide housing material for durability.
- Features phosphor bronze contacts plated with gold for excellent conductivity and corrosion resistance.
- Operates reliably within a temperature range of -55°C to 85°C.
- Designed for board-to-board connection with surface mount technology (SMT).
- Includes built-in mating guide ribs allowing ±0.6 mm misalignment for easy mating.
- Optimized spring deflection contact design increases reliability over extended use.
- Provides high-speed transmission capability up to 3.125 Gbit/s, suitable for industrial and broadcast equipment.
Product Description
Hirose FX8-100P-SV1(91) FunctionMAX FX8 Series Straight Surface PCB Header is a high-performance board-to-board connector featuring 100 contacts with a fine pitch of 0.6 mm arranged in two rows. This shrouded male connector is engineered for reliable surface mount technology (SMT) assembly on PCBs, offering excellent electrical continuity and mechanical stability.
The connector housing is made from polyphenylene sulphide, providing robust chemical resistance and mechanical strength. The phosphor bronze contacts are plated with gold to ensure low contact resistance and superior corrosion resistance, essential for long-term reliability in harsh industrial environments.
Operating temperature ranges from -55°C to a maximum of 85°C, suitable for a variety of industrial, medical, and broadcast applications. Operating voltage is rated at 100V with a current rating of 400mA per contact. The connector's contact design features optimized spring deflection, enhancing mating reliability and durability.
The FunctionMAX FX8 Series supports high-speed transmission speeds up to 3.125 Gbit/s. Integrated guide ribs allow for self-alignment tolerance of ±0.6 mm for easier mating and greater flexibility in PCB design. Additionally, feature alignment bosses and guide posts of varying diameters help prevent misinsertion during assembly.
Supports a maximum current of 400mA per contact. Housing material: Polyphenylene sulphide ensures durability and resistance. Gold-plated phosphor bronze contacts provide excellent conductivity. Operating temperature ranges from -55°C to 85°C.
Surface mount type suitable for board-to-board surface mounting. High-speed transmission capability up to 3.125 Gbit/s. Built-in guide ribs allow ±0.6 mm alignment tolerance. Includes alignment bosses and varied-diameter guide posts for easy PCB insertion.
This high-reliability PCB Header is ideal for applications in servers, broadcast equipment, industrial control units, medical devices, and POS terminals. Designed and manufactured in Japan, the product meets demanding industrial standards and ensures consistent performance in diverse environments.
Explore the Hirose range and other PCB connectors on EnvMart for comprehensive connectivity solutions.
