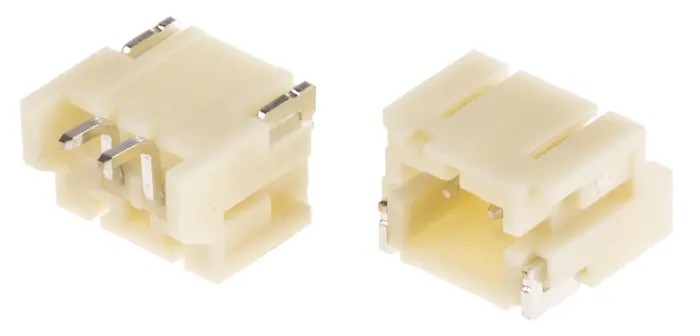

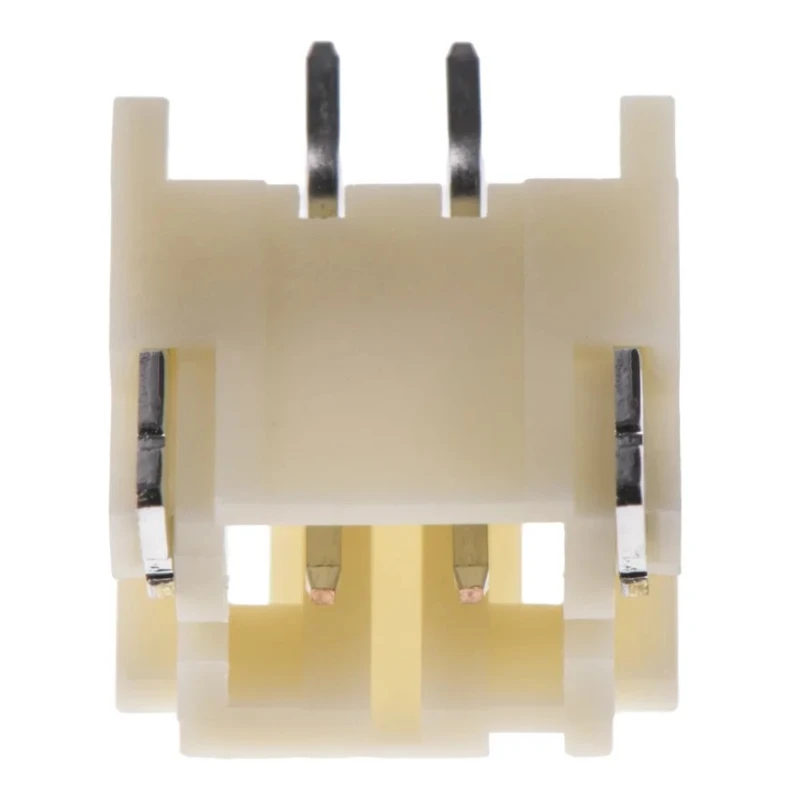

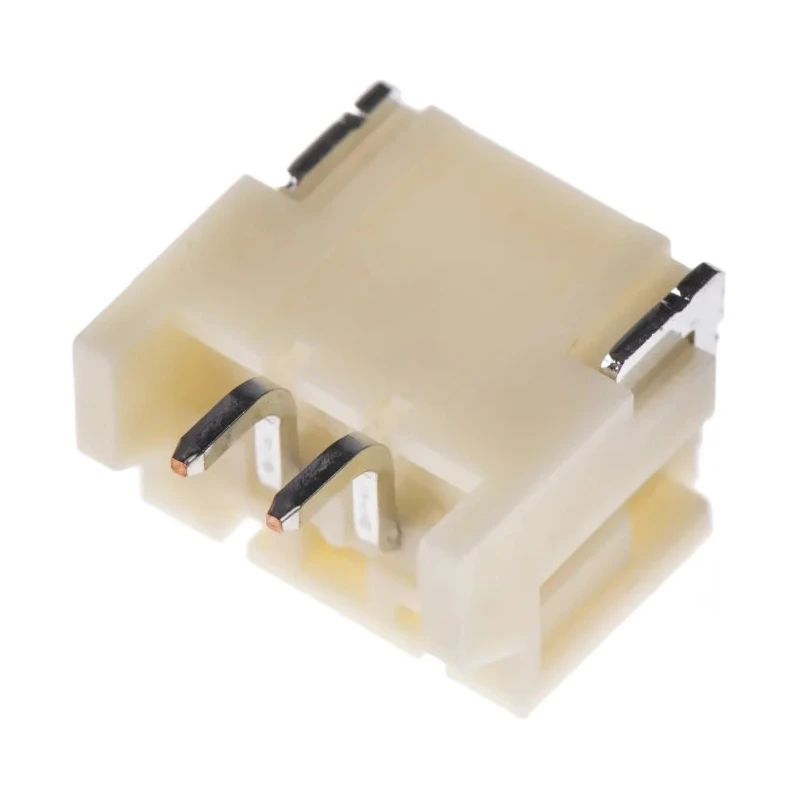

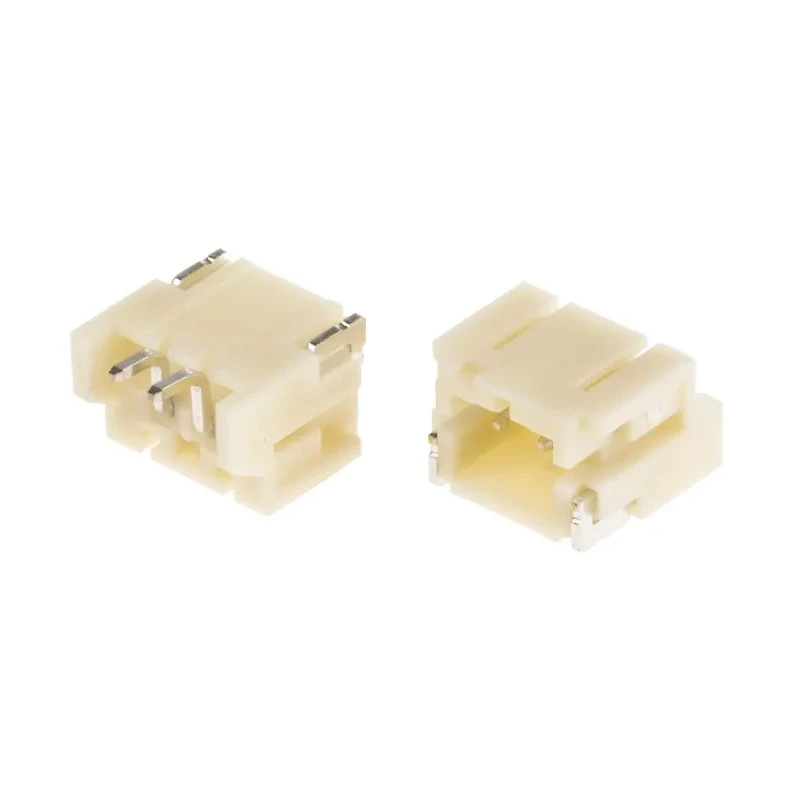

JST PH Series Right Angle Surface PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded S2B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Right Angle Surface PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded S2B-PH-SM4-TB(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	Malaysia
Voltage	100V
Brand	JST
Orientation	Right Angle
Current	2A
Model	S2B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed for high-density wire-to-board connections in electronic applications.
Features a reliable, fully shrouded header for enhanced contact safety.
Supports a current rating of 2 Amperes and voltage rating of 100 Volts.
Constructed from copper alloy with tin plated contacts ensuring durability.
Designed for surface mount with solder termination and right angle orientation.
Operating temperature range spans from -25°C to 85°C for versatile use.
Compatible with wire sizes 32 AWG to 24 AWG for flexibility in wiring.
Compact, low insertion force side entry design suitable for PCB retention.

Product Description

JST S2B-PH-SM4-TB(LF)(SN) is a Right Angle Surface PCB Header from the PH Series, designed for reliable wire-to-board connections. This shrouded model features 2 contacts arranged in 1 row with a 2 mm pitch, optimized for compact and high-density applications.

The header is made of copper alloy contacts with tin plating, providing excellent conductivity and corrosion resistance. It supports a current rating of 2A and voltage rating of 100V, suitable for many low power electronic circuits.

Engineered for surface mount technology, it features solder termination and a right angle orientation that aids in efficient PCB design and assembly. The product operates reliably within a temperature range of -25°C to 85°C, making it suitable for various industrial electronics environments.

Its fully shrouded design ensures mechanical protection and reliable retention on the printed circuit board. This connector accommodates wire gauges from 32 AWG to 24 AWG, enhancing its versatility across different applications.

The JST PH Series connectors are commonly used in industrial electronics, power distribution, instrumentation, and manufacturing processes where robust and compact PCB connections are crucial.

Designed for high-density wire-to-board connections in electronic assemblies. Fully shrouded for enhanced safety and contact protection. Rated for 2A current and 100V voltage, ensuring reliable power handling. Copper alloy contacts with tin plating for durability and conductivity.

Surface mount type with solder termination and right angle orientation. Operating temperature range from -25°C to 85°C for diverse operational conditions. Supports wire sizes from 32 AWG to 24 AWG for versatile wiring needs.

Compact, low insertion force design simplifies assembly and maintenance. Ensures secure PCB retention and mechanical stability. Ideal for use in electronics manufacturing, power & connectors, and PCB assembly. Explore a wide range of PCB Headers and connectors in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
