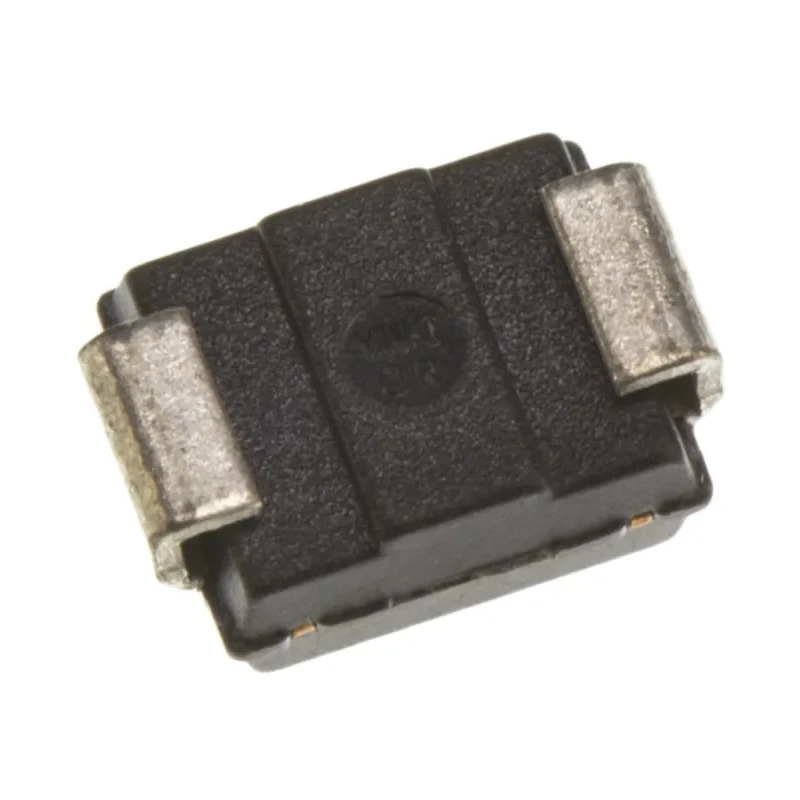

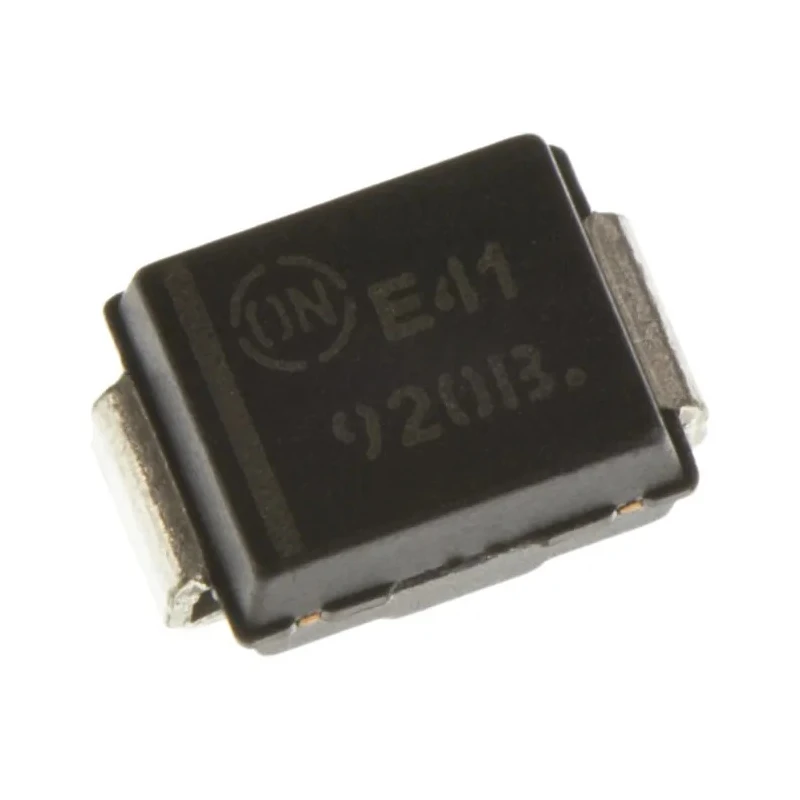

onsemi 6.2 V 550 mW Single Surface Mount Zener Diode 2-Pin DO-214AA 1SMB5920BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.47mm |
| Length | 5.6mm |
| Model | 1SMB5920BT3G |
| Mount Type | Surface |
| Series | 1SMB59 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 550mW |
| Diode Configuration | Single |
| Test Current It | 60.5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 6.2V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
Key Features
- This Zener diode offers a nominal voltage of 6.2 volts and maximum power dissipation of 550 mW.
- It features a voltage tolerance of 5% and low maximum Zener impedance at 2 ohms, ensuring stable voltage regulation.
- Designed for surface mount applications with a small footprint 2.47 mm height and 5.6 mm length.
- Operates reliably over a temperature range of -65°C to 150°C according to automotive AEC-Q101 standards.
- Ideal for use in electronic circuits requiring voltage regulation with currents up to 60.5 mA test current.
- The device complies with RoHS standards for environmental compliance and reduced hazardous substances.
Product Description
onsemi 1SMB5920BT3G is a high-quality Zener diode designed for voltage regulation in electronic and electrical applications. Featuring a single element diode configuration, it provides precise voltage stabilization with a nominal Zener voltage of 6.2 V and a power dissipation rating of 550 mW.
The device utilizes surface mount technology with a DO-214AA package, suited for compact PCB layouts and automated assembly processes. Its robust construction complies with automotive AEC-Q101 standards making it suitable for automotive and industrial electronics.
The diode maintains reliable operation within a wide temperature range from -65°C to 150°C, accommodating harsh operating environments. It has a maximum reverse leakage current of 5 μA and a maximum Zener impedance of 2 Ω at the test current of 60.5 mA, resulting in stable voltage regulation performance.
Typical applications include power supply voltage regulation, reference voltage circuits, and protection circuits in consumer electronics, industrial control systems, and automotive electronics. The device is RoHS compliant, supporting environmentally safe manufacturing processes.
This Zener Diode offers a nominal voltage of 6.2 volts and maximum power dissipation of 550 mW. It features a voltage tolerance of 5% and low maximum Zener impedance at 2 ohms, ensuring stable voltage regulation. Designed for surface mount applications with a small footprint 2.47 mm height and 5.6 mm length.
Operates reliably over a temperature range of -65°C to 150°C according to automotive AEC-Q101 standards. Ideal for use in electronic circuits requiring voltage regulation with currents up to 60.5 mA test current. The device complies with RoHS standards for environmental compliance and reduced hazardous substances.
Explore EnvMart's extensive range of semiconductor and diode products to find compatible components for your industrial, automotive, or manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 6.2 volts.
The maximum power dissipation for this model is 550 mW.
The maximum operating temperature is 150°C.
The minimum operating temperature is -65°C.
The maximum reverse leakage current is 5 μA.
The maximum Zener impedance at the test current of 60.5 mA is 2 ohms.
This model has a height of 2.47 mm and a length of 5.6 mm.
This diode is designed for surface mount applications.
It complies with the automotive AEC-Q101 standard.
Yes, this model complies with RoHS standards for environmental compliance.
The test current for this diode is 60.5 mA.
There is 1 element per chip in this Zener diode.
