Samtec IPS1 Series Straight Through Hole PCB Socket, 10-Contact, 2 Row, 2.54 mm Pitch, 777V, 12A

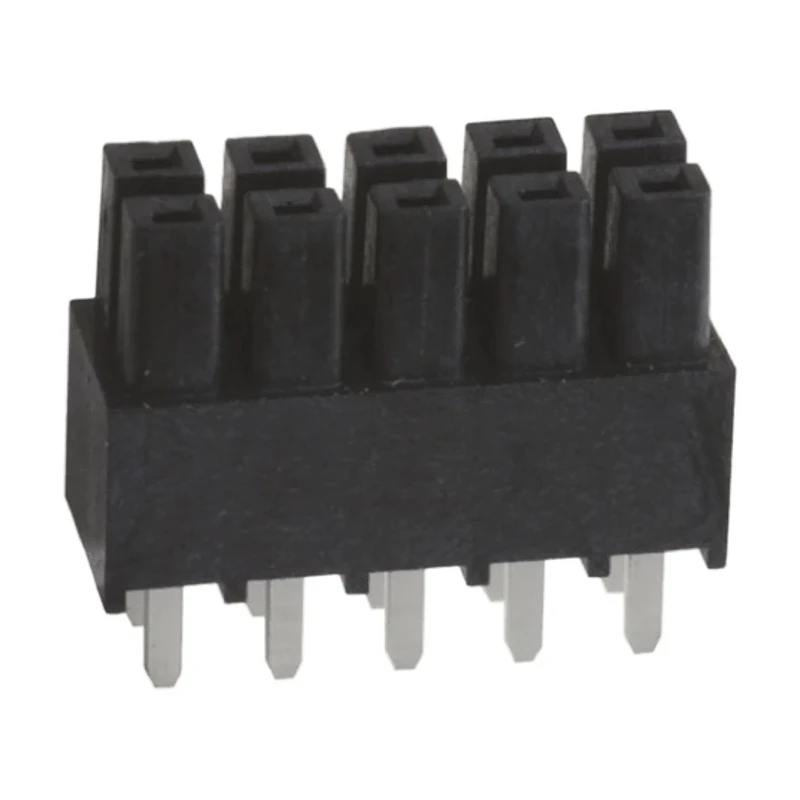

Samtec IPS1-105-01-L-D is a straight through hole PCB socket from the trusted IPS1 Series, providing a robust board-to-board connection solution. Featuring 10 contacts arranged in 2 rows with a pitch of 2.54 mm, this socket supports a rated voltage of 777V and a current rating of 12A, suitable for high reliability power circuit applications.

The contacts are made of phosphor bronze with a gold plating thickness of 0.25 μm, ensuring excellent conductivity and resistance to corrosion. These rugged Tiger Buy tuning fork style contacts are individually shrouded within a black glass LCP insulator, providing both electrical isolation and mechanical protection.

Designed to operate within a wide temperature range of -55 to +125°C, the IPS1-105-01-L-D socket maintains performance in demanding industrial, laboratory, and manufacturing environments. The socket's compact height of 11.05 mm when mated makes it suitable for dense PCB layouts.

This product mounts through the PCB using through hole technology with a straight orientation, simplifying assembly and ensuring strong mechanical connection. It is typically used in conjunction with Samtec IPT1 series shrouded PCB power terminals to form a complete board-to-board power connection system.

The socket's robust construction and high-quality materials make it ideal for electronic component applications in industrial tools, power distribution, and commercial electronic devices.

The socket uses gold-plated phosphor bronze contacts ensuring reliable connectivity. Mounting and termination types are through hole with a straight orientation. Designed for high temperature tolerance with operational range from -55 to +125°C.

The socket has a compact height of 11.05 mm when mated in the IPS1 series Mini Mate® configuration. Ideal for power connection applications on PCBs requiring durability and stable performance. Compatible with IPT1 series shrouded PCB power terminals for integrated board solutions.

Constructed with black glass LCP insulating material for electrical isolation and mechanical strength. Packaged ready for insertion into machinery to improve production efficiency. Discover more PCB socket solutions and electronics components at EnvMart to enhance your designs and manufacturing processes.
