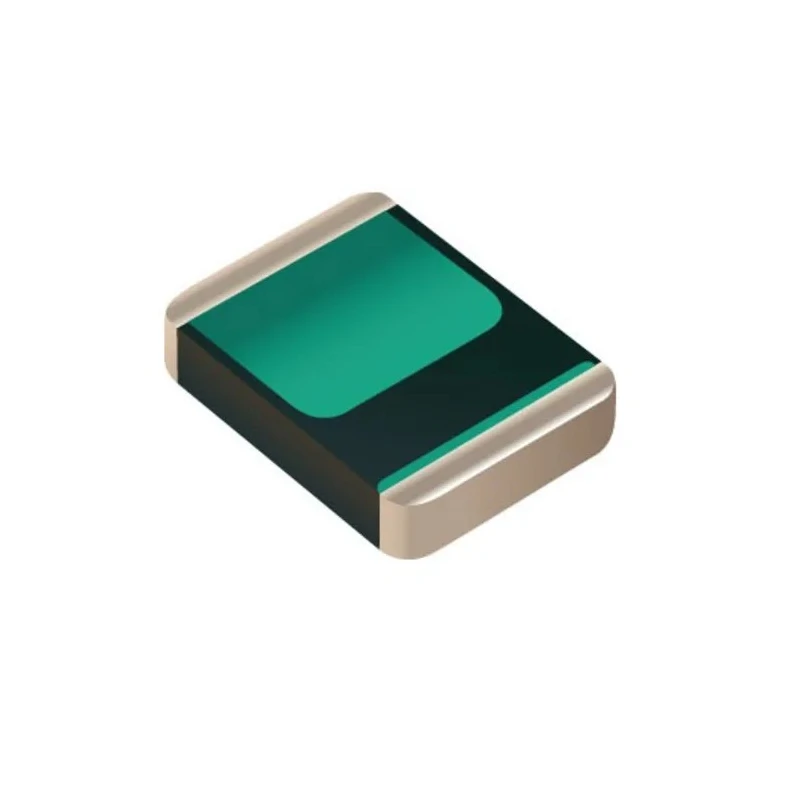

Bourns Medium Voltage Surface Mount DV Series Varistor 300 pF Capacitance, 5 A Clamping Current, 165 V Clamping DV60K3225R2
Specifications
| Country of Origin | Slovenia |
|---|---|
| Brand | Bourns |
| Material | Metal |
| THICKNESS | 2mm |
| Length | 10mm |
| Model | DV60K3225R2 |
| Depth | 2mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | DV |
| Energy Rating | 3J |
| Maximum Operating Temperature | 125°C |
| Capacitance | 300pF |
| Minimum Operating Temperature | -40°C |
| Maximum dc Voltage | 85V dc |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Termination Style | Surface Mount |
| Maximum AC Voltage | 60V ac |
| Clamping Voltage VC | 165V |
| Clamping Current | 5A |
| Maximum Surge Current | 400A |
| Varistor Voltage | 100 V |
Key Features
- Designed for surface mounting with a low profile in a 3225 package size.
- Operates continuously up to 125°C for robust thermal stability.
- Offers excellent transient energy absorption with a 3 J energy rating.
- Capable of handling a maximum surge current of 400 A for surge protection.
- Complies with RoHS standards, ensuring environmental compliance.
- Features a capacitance of 300 pF for effective voltage transient suppression.
- Suitable for operating voltages up to 100 V varistor voltage and max AC voltage of 60 V.
- Available in tape and reel packaging for automatic pick-and-place assembly.
Product Description
Bourns DV60K3225R2 medium voltage varistor is engineered for surface mounting applications requiring robust protection against high voltage surges in the medium voltage range. Featuring a low profile 3225 package, it combines improved energy volume distribution and power dissipation for excellent transient energy absorption, making it highly effective in protecting electronic equipment.
This varistor supports a varistor voltage of 100 V and a clamping voltage of 165 V with a clamping current rating of 5 A, ensuring reliable surge suppression performance. Its capacitance of 300 pF contributes to effective transient voltage suppression.
It has a maximum AC voltage rating of 60 V and a maximum DC voltage of 85 V, with surge current capability up to 400 A, making it suitable for demanding industrial and electronics applications. The device operates reliably within a temperature range from -40°C to 125°C and complies with RoHS standards.
The surface mount design and tape & reel packaging support automated assembly processes. Its metal construction and zero inductance leadless chip form facilitate extremely fast response times to transient surges. The varistor tolerates common water cleaning procedures and humidity, rated for climatic category 55/125/56.
Low profile 3225 size for space-efficient mounting. Wide operating temperature range from -40°C to 125°C. Transient energy absorption rating of 3 J for surge handling. Surface mount termination style suited for automated assembly.
Metal material construction for durability and performance. Manufactured in Slovenia ensuring quality standards.
This Bourns DV varistor series is ideal for industrial, electronics manufacturing, automotive, and power supply surge protection applications. It ensures protection against voltage spikes in sensitive equipment, contributing to system reliability and longevity.
Explore more Varistors and surge protection components in the Electronics & Electricals category to find solutions that fit your specific requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this varistor is 300 pF, which contributes to effective transient voltage suppression.
It can handle a maximum surge current of 400 A, providing robust surge protection.
The clamping voltage for this model is 165 V, ensuring reliable surge suppression performance.
The maximum operating temperature is 125°C, allowing for robust thermal stability in various applications.
The varistor voltage rating is 100 V, suitable for medium voltage applications.
It is available in tape and reel packaging, which supports automatic pick-and-place assembly.
The dimensions are 10 mm in length, 2 mm in thickness, and 2 mm in depth, fitting into a low profile 3225 package.
The energy rating is 3 J, which indicates its capability for transient energy absorption.
The minimum operating temperature is -40°C, allowing it to function in extreme conditions.
It is constructed from metal, which contributes to its performance and durability.
Yes, it complies with RoHS standards, ensuring environmental compliance.
The maximum AC voltage rating is 60 V, making it suitable for various electronic applications.
