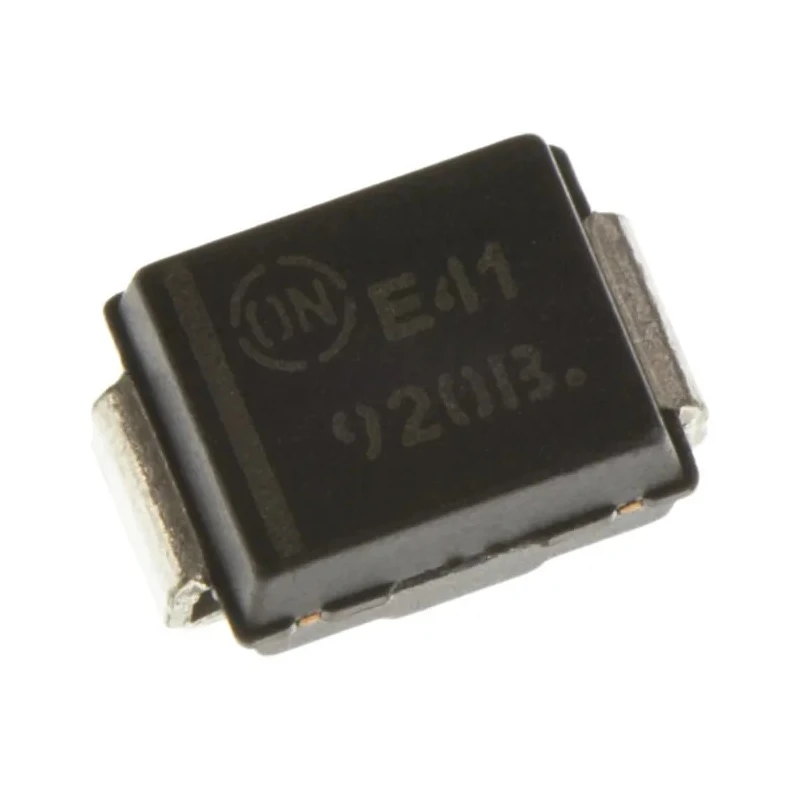

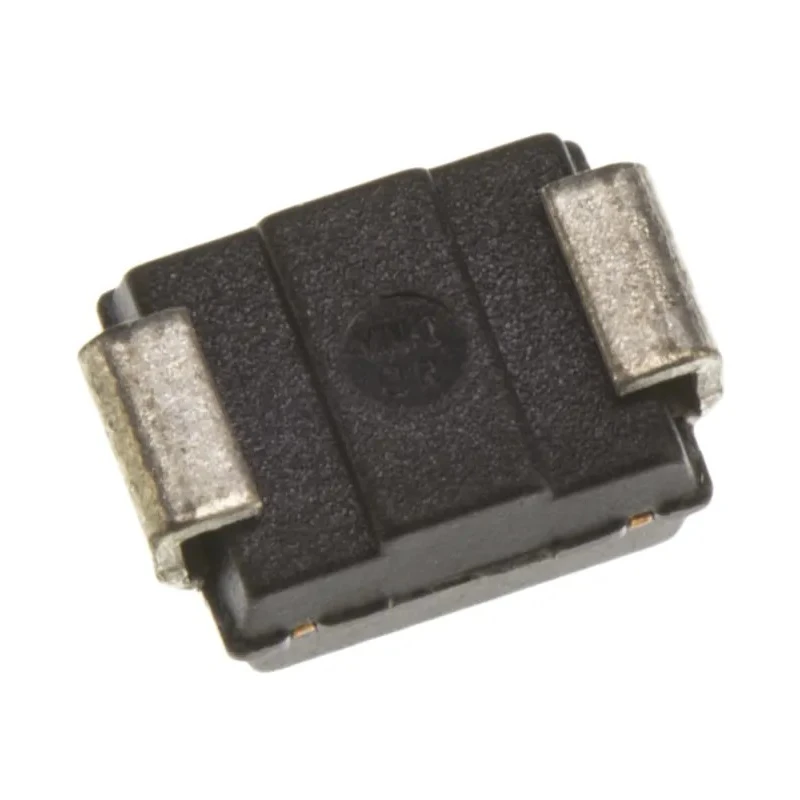

onsemi 6.2 V 550 mW 5% Tolerance Surface Mount Zener Diode, 2-Pin DO-214AA Package 1SMB5920BT3G

onsemi 1SMB5920BT3G Zener Diode is a high-performance 6.2 V voltage regulator diode designed for surface mount applications. It supports a maximum power dissipation of 550 mW, making it suitable for protecting circuits against overvoltage conditions by maintaining a steady voltage output.

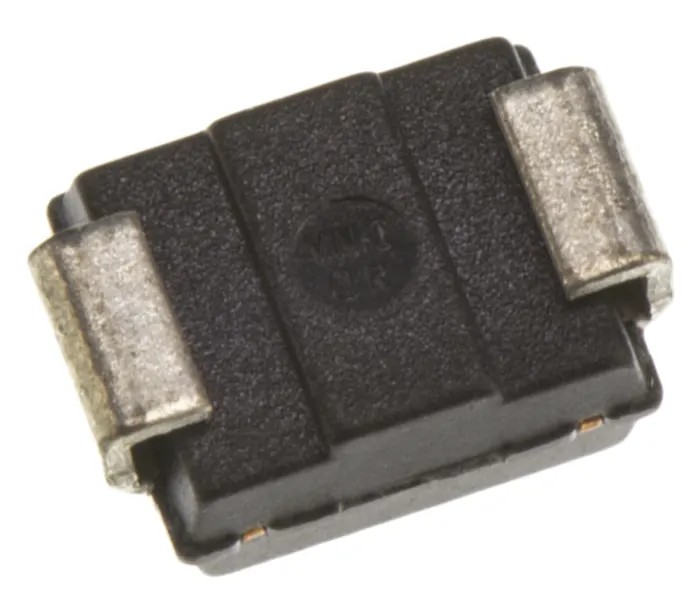

This single diode device is configured with 2 pins in a DO-214AA package type, which offers compactness and ease of integration in modern PCB designs. Its nominal voltage tolerance of ±5% and low maximum reverse leakage current of 5 μA enhance circuit stability and efficiency.

Manufactured to meet automotive standard AEC-Q101 and RoHS compliance, this diode is reliable for automotive, industrial, and consumer electronics use cases. It operates safely within the temperature range from -65°C to 150°C, providing robust thermal performance in harsh environments.

The diode has a maximum Zener impedance of 2 Ω and supports a test current of 60.5 mA. Its physical dimensions are optimized for space-constrained designs with a length of 5.6 mm and height of 2.47 mm.

Single diode configuration with 2 pins. 6.2 V nominal Zener voltage with ±5% tolerance. Maximum power dissipation of 550 mW. Temperature operating range from -65°C to 150°C. Low reverse leakage current of 5 μA. RoHS compliant and AEC-Q101 automotive standard certified.

Compact DO-214AA package suitable for surface mount.

This diode is ideal for voltage regulation and protection in industrial, automotive, and electronic circuit applications. Designed for efficient surface mounting, it enables compact assembly in modern electronics manufacturing.
