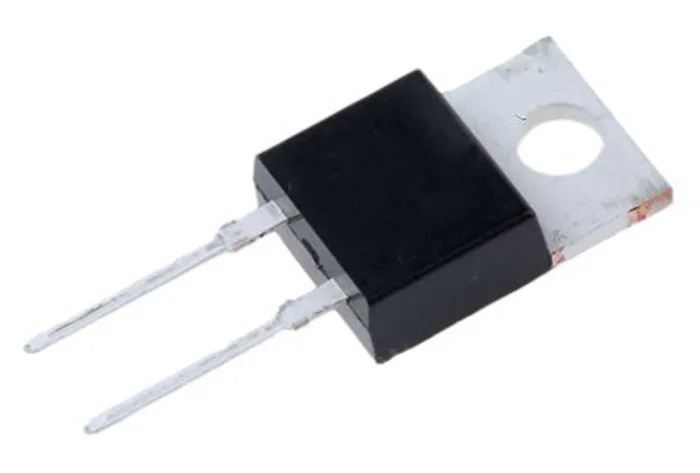

STMicroelectronics 200 V 8 A Switching Diode, Through Hole TO-220AC Package STTH802D

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 200 V 8 A Switching Diode, Through Hole TO-220AC Package STTH802D

Name: STMicroelectronics 200 V 8 A Switching Diode, Through Hole TO-220AC Package STTH802D
Brand: STMicroelectronics
SKU: 211868
Price: 0.62 USD
Availability: InStock



Category Semiconductor Diode Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Diameter	3.75mm
Brand	STMicroelectronics
Height	9.3mm
Length	10.4mm
Model	STTH802D
Width	4.6mm
Mount Type	Through Hole
Series	STTH802
Maximum Operating Temperature	175°C

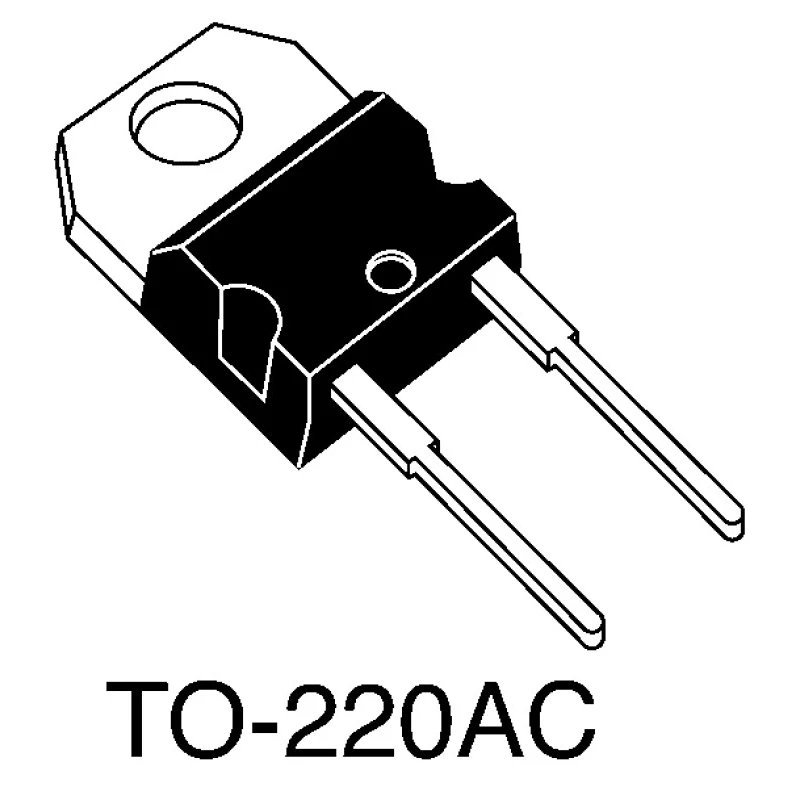

Package Type	TO-220AC
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	8A
Peak Reverse Repetitive Voltage Vrrm	200V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	6μA
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Maximum Forward Voltage Vf	1.05V
Peak Reverse Recovery Time trr	30ns
Infineon Silicon Diode, Single, 7.5 A, 2-Pin 650 V TO-220 IDV15E65D2XKSA1Brand	Infineon

Key Features

Through hole mount type for easy PCB insertion.
Rectifier switching diode configuration with single diode setup.
Maximum forward voltage drop of 1.05 V at rated current.
Peak non-repetitive surge current capacity of 100 A for transient conditions.
Wide operating temperature range from -65°C to 175°C for durable performance.
Fast peak reverse recovery time of 30 nanoseconds.
Compliant with RoHS standards ensuring environmental safety.
Peak reverse current leakage of 6 microamperes ensuring efficiency.

Product Description

STMicroelectronics STTH802D is a high-performance switching diode designed for power electronics applications. It features a robust TO-220AC package suitable for through-hole mounting, making it compatible with conventional PCB assembly techniques.

This diode operates reliably with a peak reverse repetitive voltage (Vrrm) of 200 volts and can handle a maximum continuous forward current of 8 amperes. Its low forward voltage of 1.05 volts ensures minimal power dissipation during conduction, enhancing energy efficiency.

The device supports a peak non-repetitive forward surge current of 100 amperes, allowing it to absorb transient overloads safely. It also exhibits a fast reverse recovery time of 30 nanoseconds, suitable for high-speed switching operations in power supplies and converters.

Operating temperature range spans from -65°C to 175°C, enabling reliable functioning in harsh industrial and automotive environments. The compact physical dimensions contribute to efficient PCB real estate utilization.

STTH802D is compliant with RoHS directives, reflecting adherence to environmental and safety guidelines in electronics manufacturing. This diode is ideal for applications in power rectification, switching regulators, and general semiconductor use in industrial and electronics systems.

Through hole mounting for sturdy installation. Single diode configuration optimized for switching tasks. Low forward voltage enhances energy efficiency. High surge current capacity protects against transient spikes. Wide temperature tolerance for versatility across environments.

Fast recovery time suitable for high-frequency applications. Compact TO-220AC package reduces board space. RoHS compliant for eco-friendly usage. Low leakage current improves performance stability. Explore more semiconductor solutions and switching diodes at EnvMart for industrial, electronics prototyping, and manufacturing needs.
