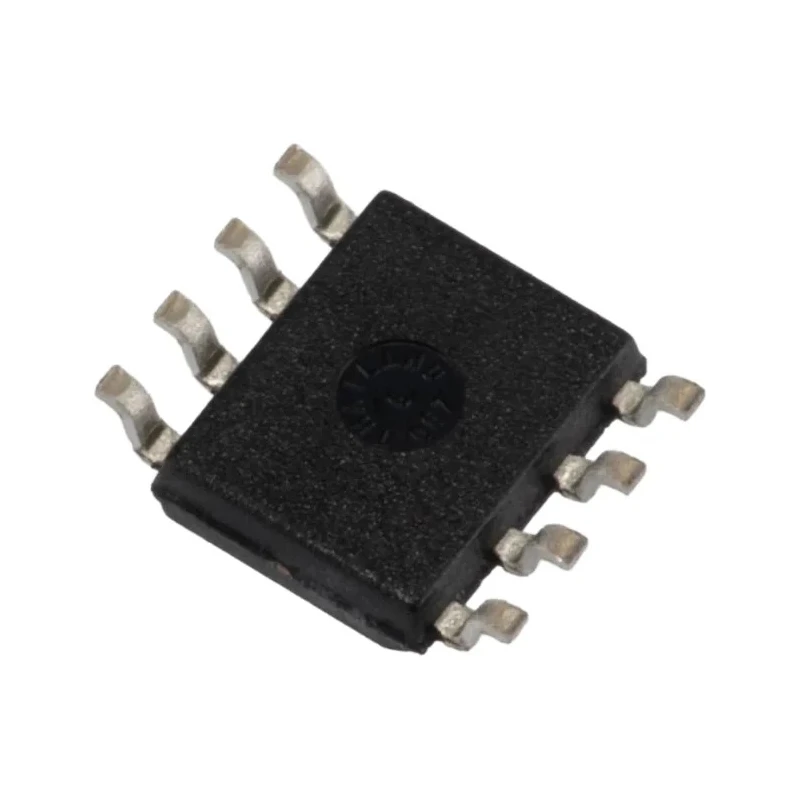

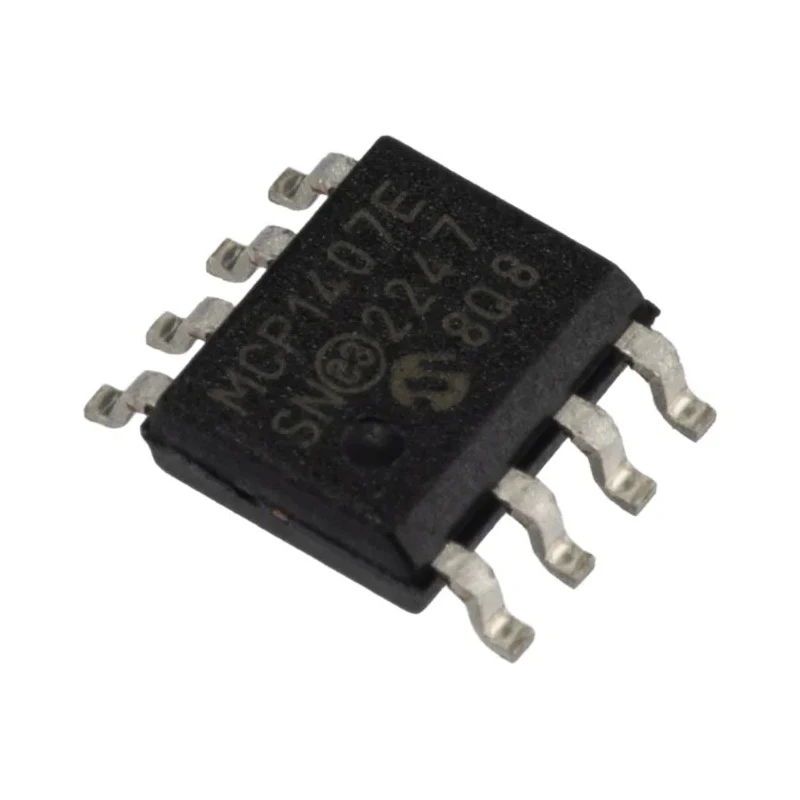

Microchip MOSFET Gate Driver 6 A, 18 V, 8-Pin SOIC MCP1407-E/SN

Free Delivery in India | Lowest Global Shipping Charges

Microchip MOSFET Gate Driver 6 A, 18 V, 8-Pin SOIC MCP1407-E/SN

Name: Microchip MOSFET Gate Driver 6 A, 18 V, 8-Pin SOIC MCP1407-E/SN
Brand: Microchip
SKU: 160340
Price: 1.75 USD
Availability: InStock



Category MOSFET Gate Driver Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1.25mm
Length	4.9mm
Model	MCP1407-E/SN
Width	3.9mm
Mount Type	Surface
Series	MCP1407
Output Current	6A
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
Number of outputs	5
Rise Time	20ns
Pin Count	8
Minimum Supply Voltage	18V
Number of Drivers	1
Fall Time	20ns
Driver Type	MOSFET

Key Features

Output current rating of 6 A ensures efficient driving of MOSFET gates.
Compact 8-pin SOIC surface mount package for PCB integration.
Fast rise and fall times of 20 ns for responsive switching.
Operates reliably between -40°C to 125°C for industrial applications.
Single driver output with 5 outputs for versatile circuit configurations.
Minimum and maximum supply voltage of 18 V allows stable operation.
Low-profile design with a height of 1.25 mm for space-constrained applications.
Robust surface mount mount type ensures easy automated assembly.

Product Description

Microchip MCP1407-E/SN MOSFET Gate Driver is a high-performance power management integrated circuit designed to drive MOSFET gates efficiently in electronic and industrial applications.

This driver supports a maximum output current of 6 A and is housed in a compact 8-pin SOIC package, making it suitable for modern printed circuit board layouts that require reliable, fast-switching gate drive capabilities.

The device features rapid 20 ns rise and fall times, facilitating quick switching transitions, which is critical for reducing power loss and enhancing overall system efficiency.

With an operating voltage tolerance of 18 V and a broad operating temperature range from -40°C up to 125°C, this driver is engineered to perform reliably in demanding industrial environments.

The MCP1407-E/SN includes a single driver with 5 outputs, offering flexibility in various circuit designs. Its surface mount configuration ensures ease of use with automated PCB assembly processes.

Typical applications include power stages in motor drives, power supplies, and digital control implementations where fast and efficient MOSFET switching is required. Output current rating of 6 A ensures efficient driving of MOSFET gates.

Compact 8-pin SOIC surface mount package for PCB integration. Fast rise and fall times of 20 ns for responsive switching. Operates reliably between -40°C to 125°C for industrial applications. Single driver output with 5 outputs for versatile circuit configurations.

Minimum and maximum supply voltage of 18 V allows stable operation. Low-profile design with a height of 1.25 mm for space-constrained applications. Robust surface mount mount type ensures easy automated assembly. Designed without automotive certification, for general electronic usage.

Wide operating temperature range supports harsh environment uses.

This Microchip MOSFET Gate Driver is ideal for applications in Industrial Electronics, Power Management, Consumer Electronics, and Embedded Systems. Efficient and reliable, it enhances switching performance and energy efficiency.
